INSTALLATION AND OPERATION MANUAL

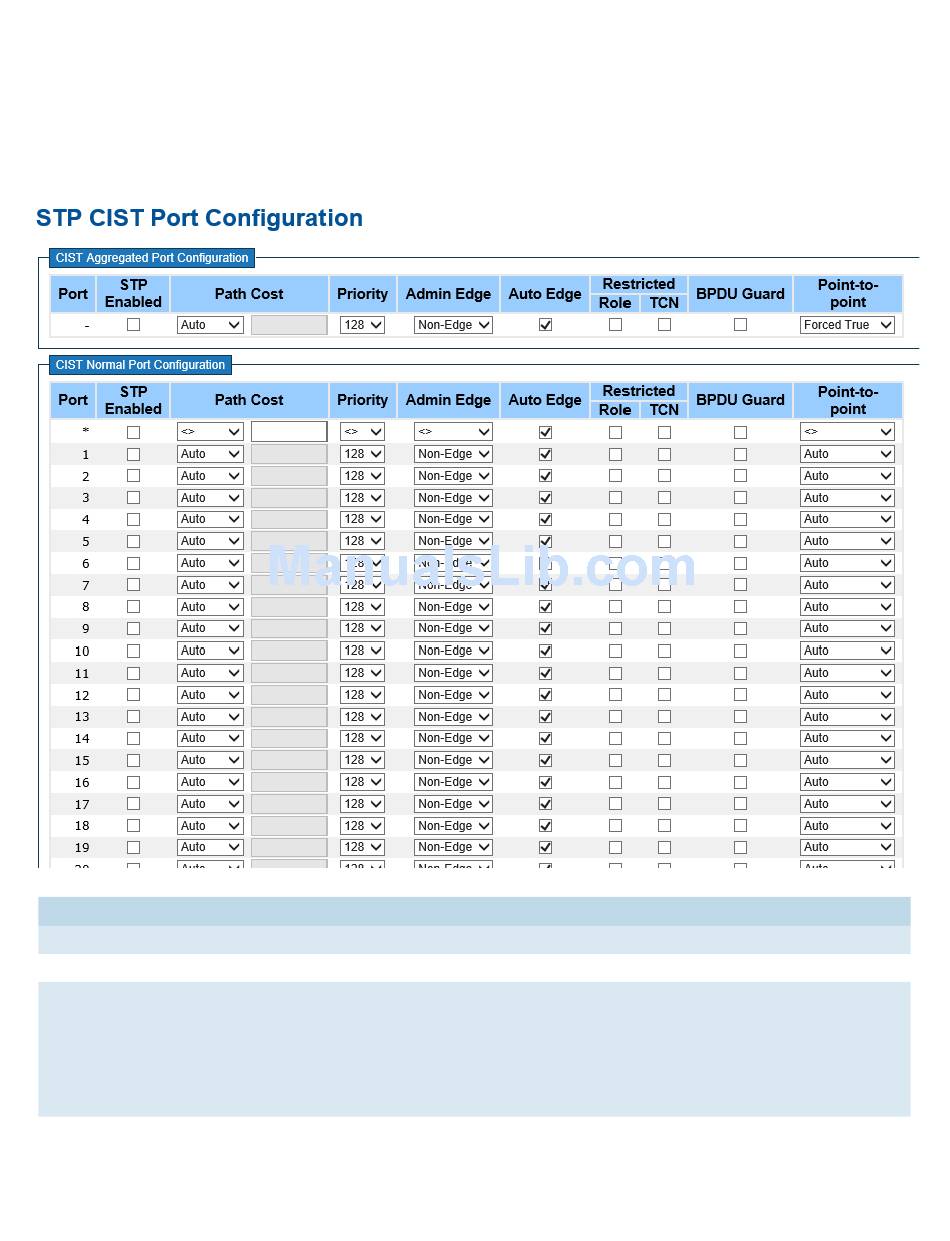

CIST Ports
This page allows the user to inspect the current STP CIST port configurations, and possibly change
them as well. This page contains settings for physical and aggregated ports. The aggregation
settings are stack global.
Label
Description
Port
The switch port number of the logical STP port.
STP Enabled
Controls whether STP is enabled on this switch port.
Path Cost
Controls the path cost incurred by the port. The Auto setting will set the path cost as
appropriate by the physical link speed, using the 802.1D recommended values. Using
the Specific setting, a user-defined value can be entered. The path cost is used when
establishing the active topology of the network. Lower path cost ports are chosen as
forwarding ports in favor of higher path cost ports. Valid values are in the range 1 to
200000000.
TECH SUPPORT: 1.888.678.9427
CNGE24MS-OB(M,S)
INS_CNGE24MS-OB(M,S)_REV–
09/12/12 PAGE 41
