INSTALLATION AND OPERATION MANUAL

Warning

Fault Alarm

When any selected fault event is happened, the Fault LED in switch panel will light up and the
electric relay will signal at the same time.

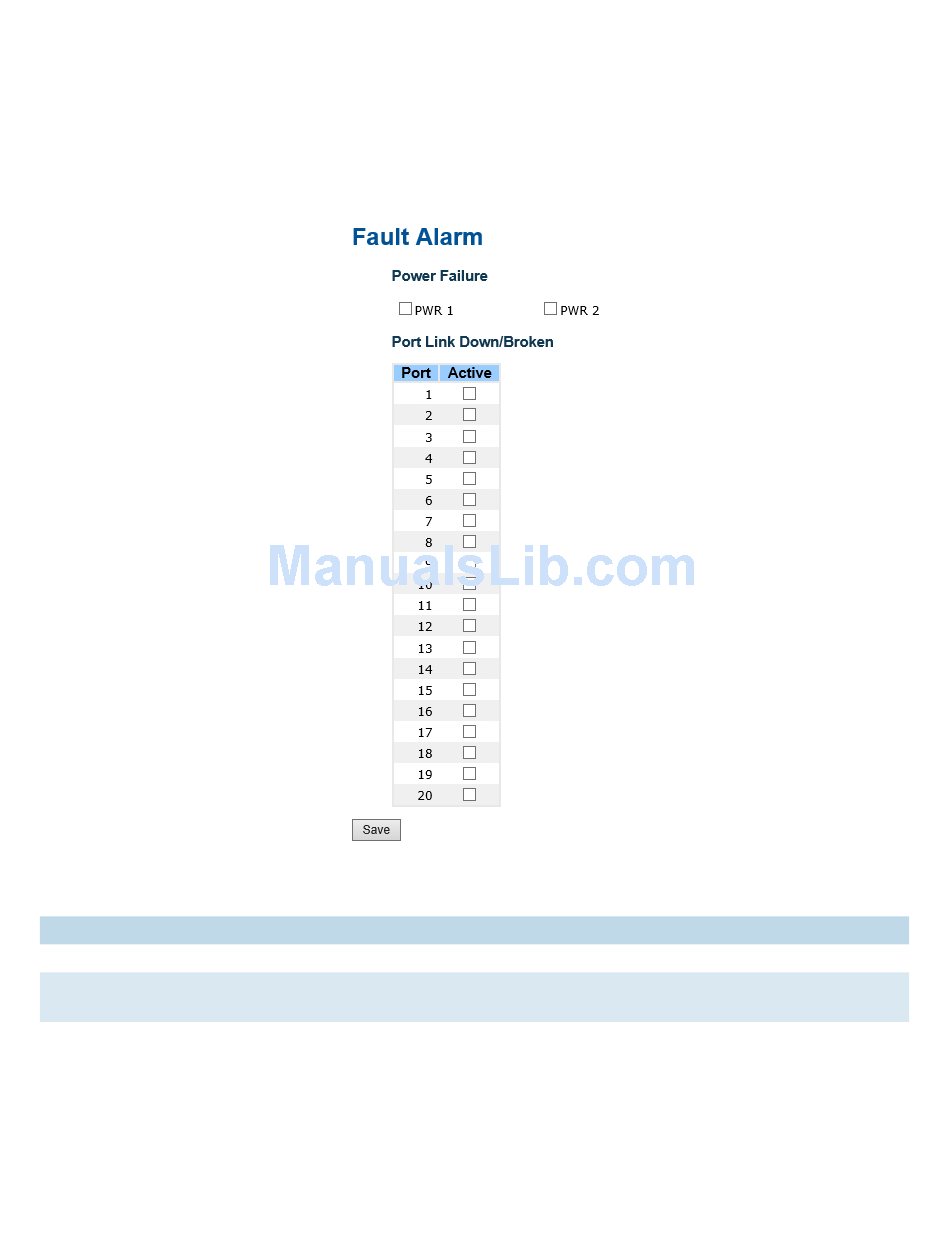

The following table describes the labels in this screen.
Label Description
Power Failure Mark the blank of PWR 1 or PWR 2 to monitor.
Port Link Down/ Mark the blank of port 1 to port 10 to monitor.
Broken
Apply Select Apply to set the configurations.
