2.3 Connecting the Paging Server

Before you connect the Paging Server, be sure that you have received all of the parts described in
Section 2.1, "Parts
See

2.3.1 Ground Connection

This connection allows you to connect the device to an electrical ground.

2.3.2 Line In

This RCA 10K Ohm Hi-Z input connection allows you to connect the device to The RCA line-out
(10K Ohm Hi-Z) of an external audio amplifier. The level of this input can be controlled by the
potentiometer located on the front of the device (see
Parameters").

2.3.3 Line Out

This RCA 10K Ohm Hi-Z output connection allows you to connect the device to The RCA line-in
(10K Ohm Hi-Z) of an external audio amplifier.
CyberData Corporation
List".

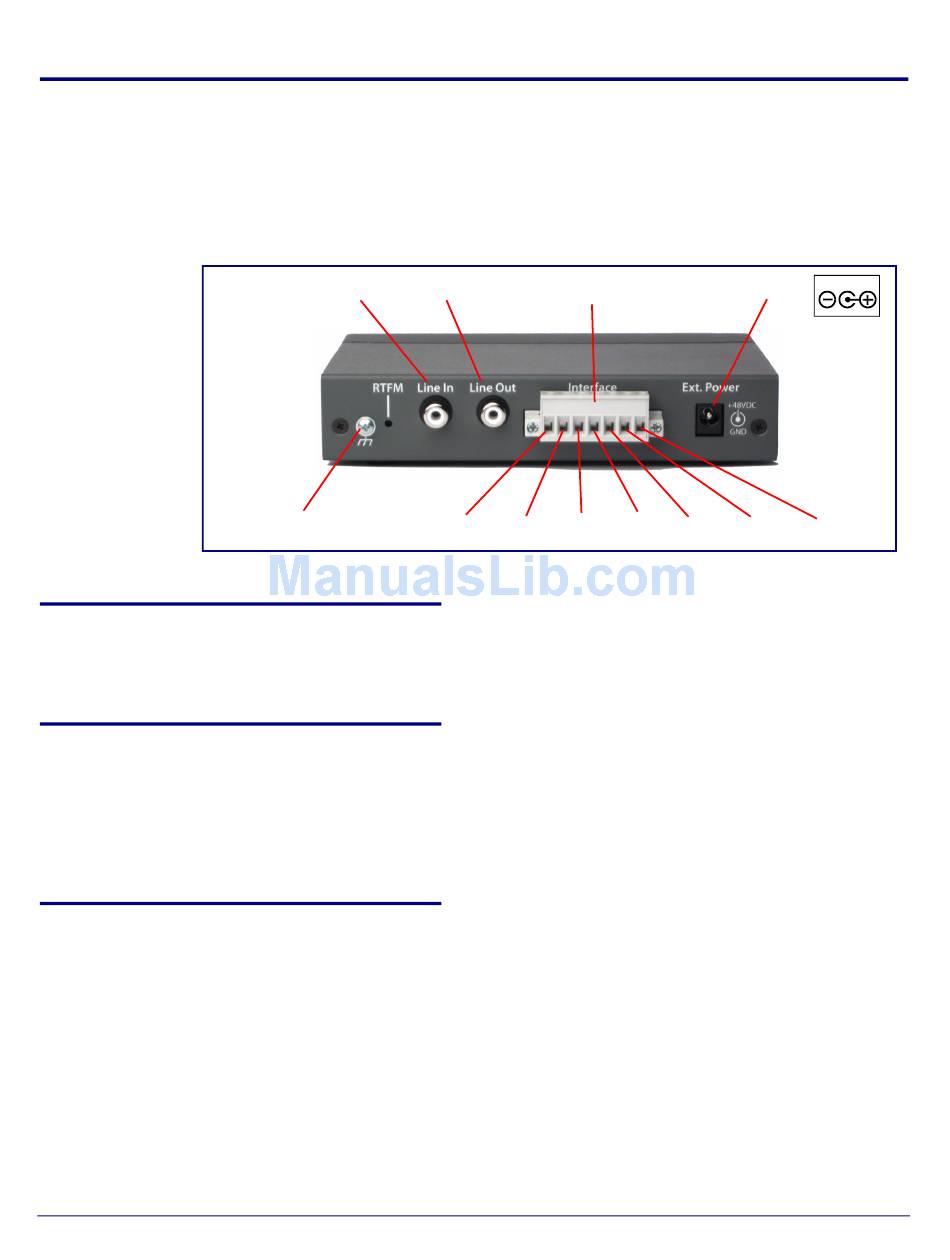

Figure 2-3 for the connection options that are available for the Paging Server.
Line In
Ground Connection
Figure 2-3. Connection Options
Line Out Page Port Output Connections
Pin 1 Pin 2 Pin 3
Section 2.4.10, "Configure the Fault Detection
931073B
Setting Up the Paging Server
Ground Connection
Power
Pin 4 Pin 5 Pin 6
Operations Guide
7
48VDC
Pin 7
