4.3.11 Linear Encoder

iPF9000 / iPF9000S / iPF9100

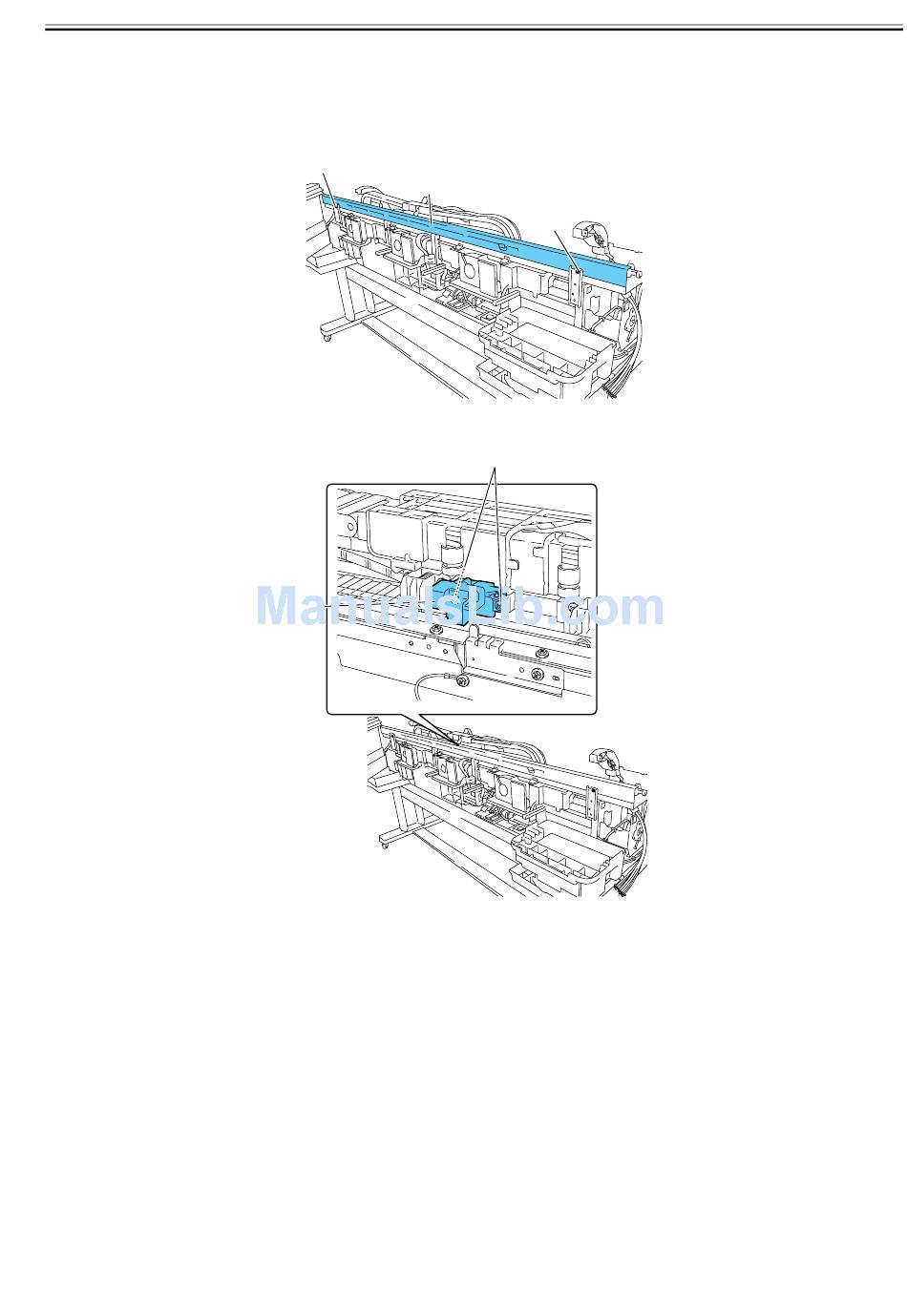

a) Removing the linear encoder
1) Move the carriage to above the platen.
2) Remove two screws [1] and upper rear stay [2].
3) Remove two screws [1] and linear encoder [2].
[1]
[2]
F-4-46
[2]
F-4-47
[1]
[1]
