10 Introduction

Appliance rear panel

Appliance rear panel
Disk drive module LEDs (continued)
Table 1-2
Number Description
2 Activity LED
See "Appliance rear panel" on page 10.
The NetBackup Appliance rear panel provides access to the communication ports,
PCIe add-in cards, and the hot-swappable power supplies. The add-in cards are
installed at the factory before the appliance ships.

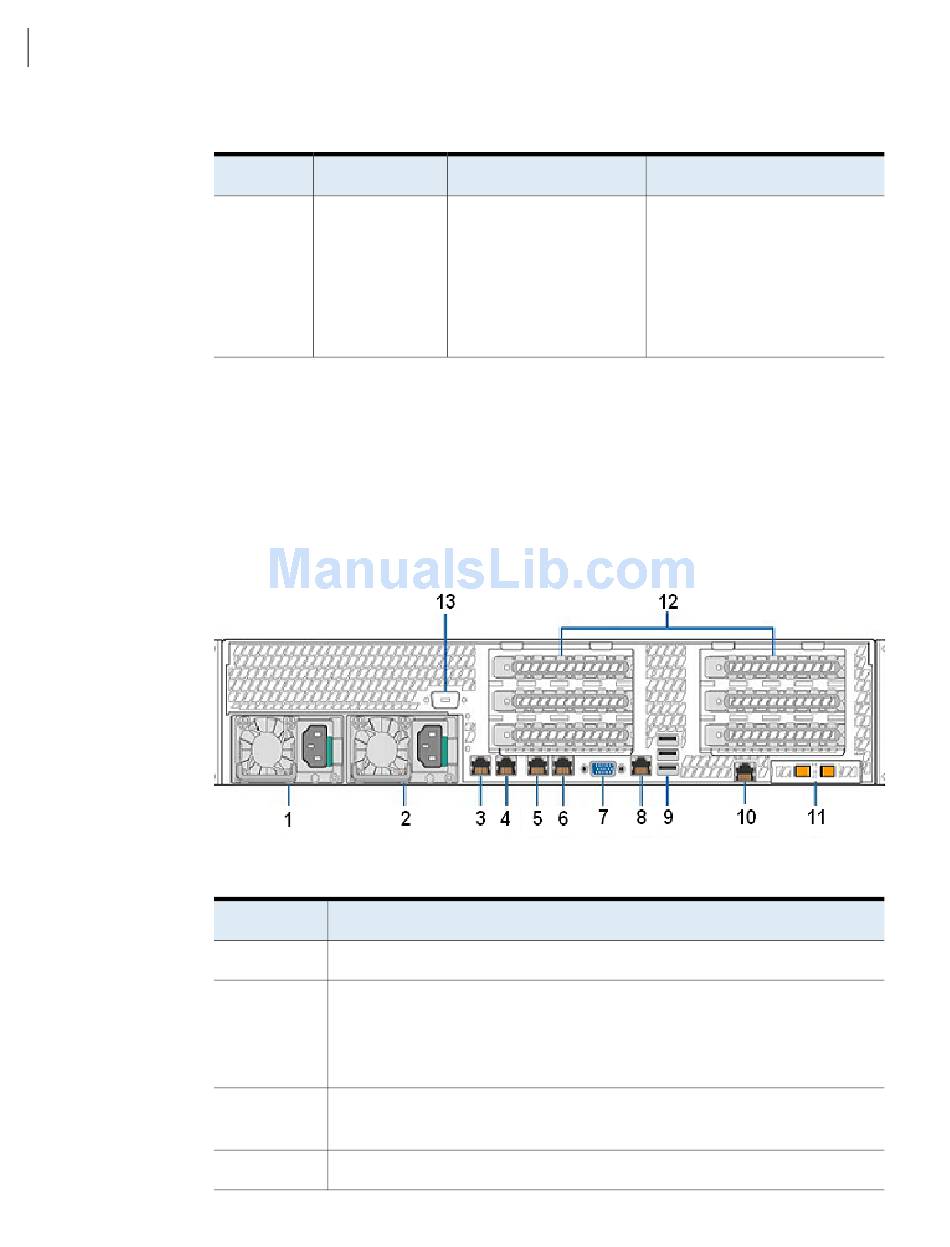

NetBackup Appliance rear panel
Table 1-3
Number Function
1, 2 Power Supply Modules #1, #2
3 Starting with NetBackup Appliance release 2.6.0.2, the eth0/NIC1 port can
be configured and used in your network for backup jobs. If you decide to
use this port for backups, you must configure the remote management (IPMI)
port to access the appliance.
4, 5, 6 NIC2/eth1, NIC3/eth2, and NIC4/eth3 are used for public networks. All three
ports are 1Gb connectors.
7 DB-15 VGA connector
Color
Not lit
Solid green
Blinking green
Blinking green
occasionally
Indication
The disk has spun down.
No disk activity.
The disk spins up.
Commands are processed.
