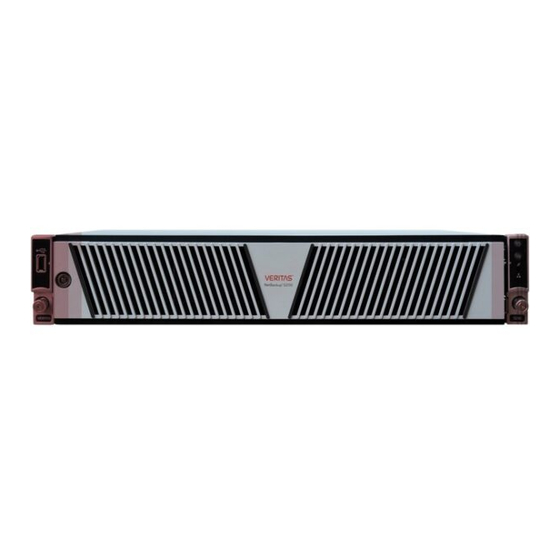

Veritas™ 5250 Appliance
Product Description Guide

Advertisement

Table of Contents
loading

Related Manuals for VERITAS 5250

Summary of Contents for VERITAS 5250

  • Page 1 Veritas™ 5250 Appliance Product Description Guide...
  • Page 2 Technologies LLC or its affiliates in the U.S. and other countries. Other names may be trademarks of their respective owners. This product may contain third-party software for which Veritas is required to provide attribution to the third party (“Third-party Programs”). Some of the Third-party Programs are available under open source or free software licenses.
  • Page 3 Japan CustomerCare_Japan@veritas.com Documentation Make sure that you have the current version of the documentation. Each document displays the date of the last update on page 2. The latest documentation is available on the Veritas website: https://www.veritas.com/content/support/en_US/dpp.Appliances.html Documentation feedback Your feedback is important to us. Suggest improvements or report errors or omissions to the documentation.

  • Page 4: Table Of Contents

    Veritas 5250 Appliance front panel disk drive configurations ....10 About the disk drive LEDs ............12 About the Veritas 5250 Appliance front panel USB port ......13 About the 5250 Appliance control panel ..........13 About the System Status LED states .......... 15 About the Power button LED states ..........
  • Page 5 Appendix A Technical specifications, Environmental/Protocol standards, and Compliance standards ....64 Veritas 5250 Appliance technical specifications ........65 Veritas S Series 2U12 65.5TiB/72TB Storage Shelf technical specifications ................. 67 Veritas D Series 2U12 65.5TiB/72TB Storage Shelf technical specifications ................. 69 Environmental specifications ............

  • Page 6: About The Veritas 5250 Appliance

    ■ Locating the appliance serial number ■ Veritas 5250 Appliance front panel disk drive configurations ■ About the Veritas 5250 Appliance front panel USB port ■ About the 5250 Appliance control panel ■ About the 5250 Appliance rear panel ■...
  • Page 7 52xx appliances, the Veritas 5250 Appliance can be configured as a primary server or a media server. It can also be configured as both. The 5250 Appliance supports S Series and D Series storage shelves or a combination of both types of shelves.

  • Page 8: Features And Components Of The Veritas 5250 Appliance

    About the Veritas 5250 Appliance Features and components of the Veritas 5250 Appliance Veritas offers multiple I/O configurations from which to choose. You can use the supported Veritas 5250 Appliance I/O configurations to best serve the needs of your particular environment.
  • Page 9 These drives should not be moved into different slots or otherwise rearranged. Fibre Channel support The Veritas 5250 Appliance can be ordered with one, two, three or four PCIe 16 Gb Fibre Channel host bus adapter cards preinstalled.

  • Page 10: Locating The Appliance Serial Number

    Veritas 5250 Appliance front panel disk drive configurations The Veritas 5250 Appliance contains 12 SAS hard disk drives, which can be accessed from the appliance's front panel. An embedded RAID controller on the appliance's mainboard is used to configure four of the 12 disks into two RAID1 mirrored volumes.
  • Page 11 About the Veritas 5250 Appliance Veritas 5250 Appliance front panel disk drive configurations the NetBackup/Flex application. You can hot-swap one of these disk drives at a time; however, you cannot operate the appliance if both disk drives are removed. The disk drives in slot 2 and slot 3 are configured as the RAID1, VOLUME1 device.

  • Page 12: About The Disk Drive Leds

    About the Veritas 5250 Appliance Veritas 5250 Appliance front panel disk drive configurations About the disk drive LEDs Each Veritas 5250 Appliance disk drive module contains two LEDs on the left side of each module. Veritas 5250 Appliance disk drive module LEDs...

  • Page 13: About The Veritas 5250 Appliance Front Panel Usb Port

    480 Mb/second. About the 5250 Appliance control panel The 5250 Appliance includes a control panel on the right side of the front panel. System information is shown on this control panel. Control panel...
  • Page 14 When the NMI is triggered, the data that is in the process of being written to the server may be lost. Veritas recommends that you do not enable NMI by pressing the NMI button. System Cold Reset Button When depressed, the System Cold Reset button (recessed, tool required for re-boots and re-initializes the appliance.

  • Page 15: About The System Status Led States

    About the Veritas 5250 Appliance About the 5250 Appliance control panel Control panel system LED descriptions (continued) Table 1-4 Label System information System Status LED The System Status LED is bi-color indicator that uses the colors green and amber to display the current health of the appliance.
  • Page 16 About the Veritas 5250 Appliance About the 5250 Appliance control panel System Status LED states Table 1-5 Color State Criticality Description Off - The Not ready System power is off (AC and/or DC) ■ color system is not System is in EuP Lot6 Off Mode ■...
  • Page 17 About the Veritas 5250 Appliance About the 5250 Appliance control panel System Status LED states (continued) Table 1-5 Color State Criticality Description Green ~1 Hz blink Degraded System degraded (continued): (continued) BMC booting Linux. (Indicated by Chassis ID ■ solid ON). System in degraded state (no manageability).

  • Page 18: About The Power Button Led States

    Unable to synchronize processor ■ frequency Unable to synchronize QPI link frequency ■ About the Power button LED states The Power button is located on the Veritas 5250 Appliance control panel. It is used to turn the appliance on and off.

  • Page 19: About The 5250 Appliance Rear Panel

    About the Veritas 5250 Appliance About the 5250 Appliance rear panel Power button control panel location Figure 1-7 Power/Sleep button The following table provides a description of each power state. Power button LED states Table 1-6 State Power Mode Description...
  • Page 20 DB-15 VGA monitor connector Serial port - Serial connection for Veritas Technical Support use only Three stacked USB 3.0 Type A serial ports for general use IPMI port - An external RJ45 port used for appliance remote management...
  • Page 21 NIC1 (eth0) to an administrative network that does not provide any backup data transfer. For more information, see the NetBackup™ 52xx Appliance Initial Configuration Guide. Note: Veritas does not support forming a NIC bond using eth0/NIC1 with other eth/NIC ports. Flex Appliance (host0): ■...
  • Page 22 PCIe riser assembly 2 and riser assembly 3 are riveted together. As a result, riser assembly 2 and riser assembly 3 are removed as one unit. * The 5250 Appliance add-in cards are available in multiple configurations. Several configurations include at least one Fibre Channel host bus adapter card for VMware, optimized deduplication over Fibre Channel, or tape library connectivity.

  • Page 23: Veritas 5250 Appliance I/O Configuration Options

    Figure 1-10 Veritas 5250 Appliance I/O configuration options The rear panel of the Veritas 5250 Appliance contains three PCIe riser card assemblies. PCIe riser card assemblies 1 and 2 each support three standard PCIe cards, while PCIe riser card assembly 3 supports two low profile PCIe cards. The slots are labeled 1 to 8.
  • Page 24 16 Gb FC FC HBA * Slot 1 contains a factory installed PCIe RAID controller. Note: The Flex 5250 Model F has 3 x 10 GbT (Standard CAT6a cabling with RJ45 connectors) network cards. Flex 5250 Appliance Model A Figure 1-12...
  • Page 25 About the Veritas 5250 Appliance Veritas 5250 Appliance I/O configuration options Flex 5250 Appliance Model B Figure 1-13 Flex 5250 Appliance Model C Figure 1-14 Flex 5250 Appliance Model D Figure 1-15...

  • Page 26: Veritas 5250 Appliance Total I/O On-Board And Pcie Ports

    Veritas 5250 Appliance I/O configuration options Flex 5250 Appliance Model E Figure 1-16 Veritas 5250 Appliance total I/O on-board and PCIe ports Total number of Veritas 5250 Appliance on-board and PCIe I/O Table 1-9 ports for each I/O configuration 1GbT...

  • Page 27: Available I/O Configurations By Slot For Veritas 5250 Appliance Installations

    Veritas 5250 Appliance I/O configuration options Available I/O configurations by slot for Veritas 5250 Appliance installations You can use the supported Veritas 5250 Appliance I/O configurations to best serve the needs of your particular environment. The controller is installed in both non-shelf and with-shelf configurations The following table provides information on the make and model of each the PCIe cards that are available for use in each appliance I/O slot.

  • Page 28: Qle2692 Dual-Port 16Gb Fibre Channel Host Bus Adapter

    About the Veritas 5250 Appliance Veritas 5250 Appliance I/O configuration options Acceptable PCIe-based I/O cards for each appliance I/O slot Table 1-10 (continued) Slot Acceptable PCIe I/O card Comment QLE2692 dual-port 16Gb Fibre PCIe-based 16Gb Fibre Channel host bus Channel host bus adapter...
  • Page 29 About the Veritas 5250 Appliance Veritas 5250 Appliance I/O configuration options QLE2692 dual-port 16Gb Fibre Channel host bus adapter Table 1-11 specifications (continued) Item Description Form factor Low-profile PCIe card (6.6 inches × 2.731 inches) Power 9.3 W consumption (watts) Operating 0°C to 55°C (32°F to 131°F)

  • Page 30: Mellanox Connectx-4 Lx En Mcx4121A-Acat Ethernet Card

    On/Blink 16Gbps link / input-output (I/O) activity To purchase a QLE2692 dual-port 16Gb Fibre Channel host bus adapter for your appliance, contact your Veritas sales representative, or your Veritas Partner representative. QLE2692 dual-port 16Gb Fibre Channel host bus adapter SKU Number...
  • Page 31 About the Veritas 5250 Appliance Veritas 5250 Appliance I/O configuration options Note: Veritas recommends that you use Finisar FTLX8574D3BCV SFP part for 10G connectivity and Mellanox MMA2P00-AS SFP part for 25G connectivity. Mellanox ConnectX-4 Lx EN MCX4121A-ACAT Ethernet card Table 1-13...

  • Page 32: Broadcom P225P 10/25Gb Pcie Ethernet Card

    25GbE SFI transceiver. By default, a 10 GB SFP is shipped with the appliance. Note: Veritas recommends that you use Finisar FTLX8574D3BCV SFP part for 10G connectivity and Mellanox MMA2P00-AS SFP part for 25G connectivity.

  • Page 33: Intel X550-T2 Dual-Port 10Gb Ethernet Card

    About the Veritas 5250 Appliance Veritas 5250 Appliance I/O configuration options Broadcom P225p NIC adapter specifications (continued) Table 1-14 Item Specification Data rate supported per port 10/25Gb Air Flow (minimum) 150 LFM (linear feet per minute) Intel X550-T2 dual-port 10Gb Ethernet card The Intel X550-T2 dual-port network interface card connects the appliance to the 10Gb network infrastructure over 10GBase-T technology.

  • Page 34: Intel Raid Adapter Rs3P4Mf088F

    About the Veritas 5250 Appliance Veritas 5250 Appliance I/O configuration options Intel X550-T2 dual-port 10Gb Ethernet card specifications Table 1-15 (continued) Item Specification Operating temperature 5°C to 35°C Storage temperature -40 °C to +85 °C Storage humidity 5% to 95%, non-condensing System interface type PCIe v3.0...
  • Page 35 About the Veritas 5250 Appliance Veritas 5250 Appliance I/O configuration options RS3P4MF088F RAID adapter specifications Table 1-16 Item Specification Bracket height Low profile mounting bracket Power consumption Typical: 16.70 watts Maximum: 17.71 watts Operating temperature 0°C to 55°C (32 F to 131 F) Storage temperature -45°C to +105°C (-49°F to +221°F)

  • Page 36: Veritas 2U12 65.5Tib/72Tb Storage Shelf

    Components of the D Series Storage Shelf ■ Storage Shelf overview S Series Storage Shelf The optional Veritas S Series 2U12 65.5TiB/72TB Storage Shelf is a 2U12 drive enclosure that contains twelve 8TB 7200 rpm SAS hard disk drives. Available...
  • Page 37 41. D Series Storage Shelf The Veritas D Series 2U12 65.5TiB/72TB Storage Shelf is a direct-attach storage enclosures designed to maximize your server storage capacity. Available storage capacity of the storage shelf is 65 TiB. It offers the flexibility of 3.5-inch or 2.5-inch hard drives (with specially designed carriers) in a 2U, 12-drive enclosure.

  • Page 38: Usable Appliance Storage Capacities

    <appliance-only capacity> + 65.5 = exact usable capacity * You can add up to six Storage Shelves to an existing Veritas 5250 Appliance with internal storage capacities of 9.1TiB or 36.4TiB. However, before you place the system into a production environment, you must migrate all MSDP data from the appliance to the first external storage shelf.

  • Page 39: Components Of The S Series Storage Shelf

    65.5TiB/72TB Storage Shelf, which replaces all existing DIMM modules in the appliance. Contact your Veritas account representative for details. Note: Spanning MSDP data across both Veritas 5250 Appliance internal storage and a storage shelf is not recommended as it may result in degraded performance.
  • Page 40 Indicator Aperture Drive tray Status LEDs The following table describes the disk drive carrier LEDs. Note that the combination of both LEDs provides the status. Veritas S Series 2U12 65.5TiB/72TB Storage Shelf disk drive Table 2-2 carrier LED status Status...

  • Page 41: S Series Storage Shelf Control Panel

    T10 torx screw driver. S Series Storage Shelf control panel The Veritas S Series 2U12 65.5TiB/72TB Storage Shelf control panel is installed on the front left side of the storage shelf. Veritas S Series 2U12 65.5TiB/72TB Storage Shelf control panel...
  • Page 42 Veritas 2U12 65.5TiB/72TB Storage Shelf Components of the S Series Storage Shelf Veritas S Series 2U12 65.5TiB/72TB Storage Shelf control panel Table 2-3 functions Number Item Description Input switch The Input switch enables you to set the Unit Identification display.

  • Page 43: S Series Storage Shelf Rear Components

    For more information, see the Veritas 5250 Appliance Hardware Installation Guide. S Series Storage Shelf rear components This section describes the rear panel features of the Veritas S Series 2U12 65.5TiB/72TB Storage Shelf. The following figure provides an overview of the components that comprise the...

  • Page 44: S Series Storage Shelf I/O Modules

    44. “S Series Storage Shelf Power Cooling Modules” on page 48. “S Series Power Cooling Module LEDs” on page 50. S Series Storage Shelf I/O modules This section discusses the Veritas S Series 2U12 65.5TiB/72TB Storage Shelf I/O modules.
  • Page 45 Components of the S Series Storage Shelf Veritas S Series 2U12 65.5TiB/72TB Storage Shelf I/O module Figure 2-5 The following figure and table provides details of the two Veritas 2U12 65.5TiB/72TB Storage Shelf I/O module canisters. Veritas S Series 2U12 65.5TiB/72TB Storage Shelf I/O modules...

  • Page 46: S Series I/O Module Status Led Location And Conditions

    Veritas 2U12 65.5TiB/72TB Storage Shelf Components of the S Series Storage Shelf Veritas S Series 2U12 65.5TiB/72TB Storage Shelf I/O module Table 2-6 components Number Description I/O module 0 I/O module 1 I/O module Status LEDs “S Series I/O module Status LED location and conditions”...

  • Page 47: S Series I/O Module Sas Activity Led Location And Conditions

    Veritas 2U12 65.5TiB/72TB Storage Shelf Components of the S Series Storage Shelf S Series I/O module Status LED conditions (continued) Table 2-7 Condition Activity Fault LED (amber) LED (green) Power (green) The I/O module is on. The I/O module is off.

  • Page 48: S Series Storage Shelf Power Cooling Modules

    46. S Series Storage Shelf Power Cooling Modules The Veritas S Series 2U12 65.5TiB/72TB Storage Shelf includes two Power Cooling Modules (PCM). The dual PCMs provide redundant power to the storage shelf. If one PCM fails, the storage shelf continues to operate as the second PCM continues...
  • Page 49 Veritas 2U12 65.5TiB/72TB Storage Shelf Components of the S Series Storage Shelf S Series Power Cooling Module Figure 2-9 S Series Power Cooling Module components Table 2-9 Number Component Power Cooling Module LEDs “S Series Power Cooling Module LEDs” on page 50.

  • Page 50: S Series Power Cooling Module Leds

    Veritas 2U12 65.5TiB/72TB Storage Shelf Components of the S Series Storage Shelf S Series Power Cooling Module components (continued) Table 2-9 Number Component Serial number - located on the Power Cooling Module 0 tab Note: The storage shelf serial number begins with the letters SH.
  • Page 51 Veritas 2U12 65.5TiB/72TB Storage Shelf Components of the S Series Storage Shelf S Series Power Cooling Module LED legend Table 2-10 Number LED condition AC fail Fan fail Power Cooling Module OK DC fail S Series Power Cooling Module LED conditions...

  • Page 52: Components Of The D Series Storage Shelf

    Veritas 2U12 65.5TiB/72TB Storage Shelf Components of the D Series Storage Shelf Components of the D Series Storage Shelf The following sections describe the components of the Veritas D Series 2U12 65.5TiB/72TB Storage Shelf. D Series Storage Shelf front panel components Hard disk drive capacities and drive bay slot assignments The Veritas D Series 2U12 65.5TiB/72TB Storage Shelf contains 12, 3.5-inch SAS...
  • Page 53 Veritas 2U12 65.5TiB/72TB Storage Shelf Components of the D Series Storage Shelf Hard disk drive indicator patterns Hard disk drive indicators Figure 2-11 hard disk drive activity indicator (green) hard disk drive status indicator (green and amber) hard disk drive...

  • Page 54: D Series Storage Shelf Control Panel

    D Series Storage Shelf control panel The Veritas D Series 2U12 65.5TiB/72TB Storage Shelf control panel is installed on the front left side of the storage shelf. Veritas D Series 2U12 65.5TiB/72TB Storage Shelf control panel...

  • Page 55: D Series Storage Shelf Rear Components

    D Series Storage Shelf rear components This section describes the rear panel features of the Veritas D Series 2U12 65.5TiB/72TB Storage Shelf. The following figure provides an overview of the components that comprise the...

  • Page 56: D Series Power Indicator Codes

    Power supply unit or cooling fan 600 W power supply. module (PS 2) “D Series Power indicator codes” on page 56. D Series Power indicator codes This section discusses the power indicator codes of the Veritas D Series 2U12 65.5TiB/72TB Storage Shelf.
  • Page 57 Veritas 2U12 65.5TiB/72TB Storage Shelf Components of the D Series Storage Shelf Veritas D Series 2U12 65.5TiB/72TB Power indicator codes Figure 2-14 Veritas D Series 2U12 65.5TiB/72TB Power indicator codes Table 2-16 Number Color State DC power Green ON — Normal operation. Power supply is connected to DC power and the power switch is on.

  • Page 58: Chapter 3 Veritas 5250 Appliance And Veritas 2U12 65.5Tib/72Tb Storage Shelf Cables

    ■ Power cables Each of the AC power modules in the Veritas 5250 Appliance and in the optional Storage Shelf accept one AC power cable. One end of the AC power cable is connected to the power supply on the appliance or the storage device. The other end of the cable is connected to an external Power Distribution Unit (PDU) on the rack.

  • Page 59: Network Cable

    AC power connector (IEC-60320-C13) to an appliance or a storage device. Note: If your power distribution unit is not compatible with the IEC-60320-C14 plug, then Veritas recommends that you purchase your power cable locally. Make sure the power cable meets or exceeds the indicated power rating.

  • Page 60: Multi-Mode Fiber Optic Cable

    Veritas 5250 Appliance and Veritas 2U12 65.5TiB/72TB Storage Shelf cables Multi-Mode fiber optic cable Network cable Figure 3-2 “Power cables” on page 58. “Multi-Mode fiber optic cable” on page 60. “SAS-3 cable” on page 62. “Twinaxial copper cables” on page 61.

  • Page 61: Twinaxial Copper Cables

    Veritas 5250 Appliance and Veritas 2U12 65.5TiB/72TB Storage Shelf cables Twinaxial copper cables Fiber optic cables require Small Form-factor Pluggable (SFP+) transceivers, which are provided with each device having Fibre Channel ports. The diagram shows the SFP, labeled 1, and the fiber optic cable which is attached to it, labeled 2.

  • Page 62: Sas-3 Cable

    SAS-3 cable SAS-3 data cables are used to connect the optional Veritas 2U12 65.5TiB/72TB Storage Shelf to the Veritas 5250 Appliance. SAS-3 cables have a mini-SAS HD connector on both ends. Two 1m SAS-3 cables are shipped with each S Series Storage Shelf.
  • Page 63 Veritas 5250 Appliance and Veritas 2U12 65.5TiB/72TB Storage Shelf cables SAS-3 cable SAS-3 cable Figure 3-4 “Power cables” on page 58. “Multi-Mode fiber optic cable” on page 60. “Twinaxial copper cables” on page 61. “Network cable” on page 59.

  • Page 64: Appendix A Technical Specifications, Environmental/Protocol Standards, And Compliance Standards

    Environmental/Protocol standards, and Compliance standards This appendix includes the following topics: Veritas 5250 Appliance technical specifications ■ Veritas S Series 2U12 65.5TiB/72TB Storage Shelf technical specifications ■ Veritas D Series 2U12 65.5TiB/72TB Storage Shelf technical specifications ■ Environmental specifications ■...

  • Page 65: Veritas 5250 Appliance Technical Specifications

    Technical specifications, Environmental/Protocol standards, and Compliance standards Veritas 5250 Appliance technical specifications Veritas 5250 Appliance technical specifications The following table provides technical specifications for the Veritas 5250 Appliance. Veritas 5250 Appliance technical specifications Table A-1 Technical Specification Veritas 5250 Appliance Rack information 19"...
  • Page 66 Technical specifications, Environmental/Protocol standards, and Compliance standards Veritas 5250 Appliance technical specifications Veritas 5250 Appliance technical specifications (continued) Table A-1 Technical Specification Veritas 5250 Appliance Maximum number of storage shelves 1 Gb Ethernet ports Up to 4 maximum 10/25 Gb Ethernet ports...

  • Page 67: Veritas S Series 2U12 65.5Tib/72Tb Storage Shelf Technical Specifications

    Acoustic noise 70 dBA “Veritas S Series 2U12 65.5TiB/72TB Storage Shelf technical specifications” on page 67. Veritas S Series 2U12 65.5TiB/72TB Storage Shelf technical specifications The following table provides technical specifications for a Veritas S Series 2U12 65.5TiB/72TB Storage Shelf.
  • Page 68 Technical specifications, Environmental/Protocol standards, and Compliance standards Veritas S Series 2U12 65.5TiB/72TB Storage Shelf technical specifications Veritas S Series 2U12 65.5TiB/72TB Storage Shelf technical Table A-2 specifications Technical specification Description Rack information The rack installation height is the space occupied by a storage shelf in a rack cabinet.

  • Page 69: Veritas D Series 2U12 65.5Tib/72Tb Storage Shelf Technical Specifications

    “Veritas 5250 Appliance technical specifications” on page 65. Veritas D Series 2U12 65.5TiB/72TB Storage Shelf technical specifications The following table provides technical specifications for a Veritas D Series 2U12 65.5TiB/72TB Storage Shelf. Veritas D Series 2U12 65.5TiB/72TB Storage Shelf technical Table A-3...
  • Page 70 Technical specifications, Environmental/Protocol standards, and Compliance standards Veritas D Series 2U12 65.5TiB/72TB Storage Shelf technical specifications Veritas D Series 2U12 65.5TiB/72TB Storage Shelf technical Table A-3 specifications (continued) Technical specification Description Hot swappable components Disk drives, power cooling modules, and I/O modules Usable storage capacity (TB) 65.5TiB/72TB...

  • Page 71: Environmental Specifications

    The non-operating temperature is defined as the temperature of the system when the system is turned off. It is also referred to as the storage temperature. Veritas recommends that you do not store the system in an environment where the temperatures fall outside of the listed temperature range.

  • Page 72: Protocol Standards

    Technical specifications, Environmental/Protocol standards, and Compliance standards Protocol standards Protocol standards The following table provides standards with which the Veritas 5250 Appliance and the Veritas 2U12 Storage Shelf comply. Veritas 5250 Appliance / Veritas 2U12 Storage Shelf standards Table A-5...

  • Page 73: Product Regulatory Compliance

    Technical specifications, Environmental/Protocol standards, and Compliance standards Product regulatory compliance WARNING To ensure regulatory compliance, you must adhere to the assembly instructions in this guide to ensure and maintain compliance with existing product certifications and approvals. Use only the described, regulated components that are specified in this guide.

  • Page 74: Product Safety Compliance

    Technical specifications, Environmental/Protocol standards, and Compliance standards Product safety compliance CCC Certification (China) ■ BIS India ■ NOM Mexico ■ InMetro Brazil ■ NRCS & SABS South Africa ■ BSMI Taiwan ■ VCCI Japan ■ KVALITET Serbia ■ Note: Other countries are either based on these requirements or do not require certification.

  • Page 75: Product Environmental Compliance

    BSMI CNS13438 Emissions (Taiwan) ■ Note: For a complete list of regulatory notices please refer to this link: Veritas Safety and Compliance Guide Product environmental compliance Use of banned substances are restricted in accordance with world-wide regulatory requirements. Restrictions include quantity limitations on the following: Quantity limit of 0.1% by mass (1000 PPM) for: Lead, Mercury, Cadmium,...

  • Page 76: Index

    LED indicators 12 front panel Appliance Storage Shelf 39 configurations 6 Veritas 2U12 65.5TiB/72TB Storage Shelf 39 control panel 13 Control panel system Status LED indicator 15 Appliance disk drive configurations 10 system LED descriptions 13...
  • Page 77 8 hard disk drive capacities RAID levels 8 Storage Shelf 39 protocol standards hardware configurations Veritas 5250 Appliance / Veritas 2U12 Storage available 23, 26 Shelf 72 I/O configuration RAID configuration ethernet card 30 Appliance 10 I/O configurations...
  • Page 78 Index usable storage capacities appliance 38 USB port Appliance 13 Veritas 2U12 65.5TiB/72TB Storage Shelf components 39...
