Veritas Appliance
Hardware Service Procedure
SAS data cable replacement: NetBackup 5330 storage shelves
Document Number: 151
Version: 3.1 (6/14/16)
Purpose
This document describes how to remove and replace damaged or faulty NetBackup 5330 storage
shelf SAS data cables while the appliance is operating.
Affected Models
NetBackup 5330 Appliance

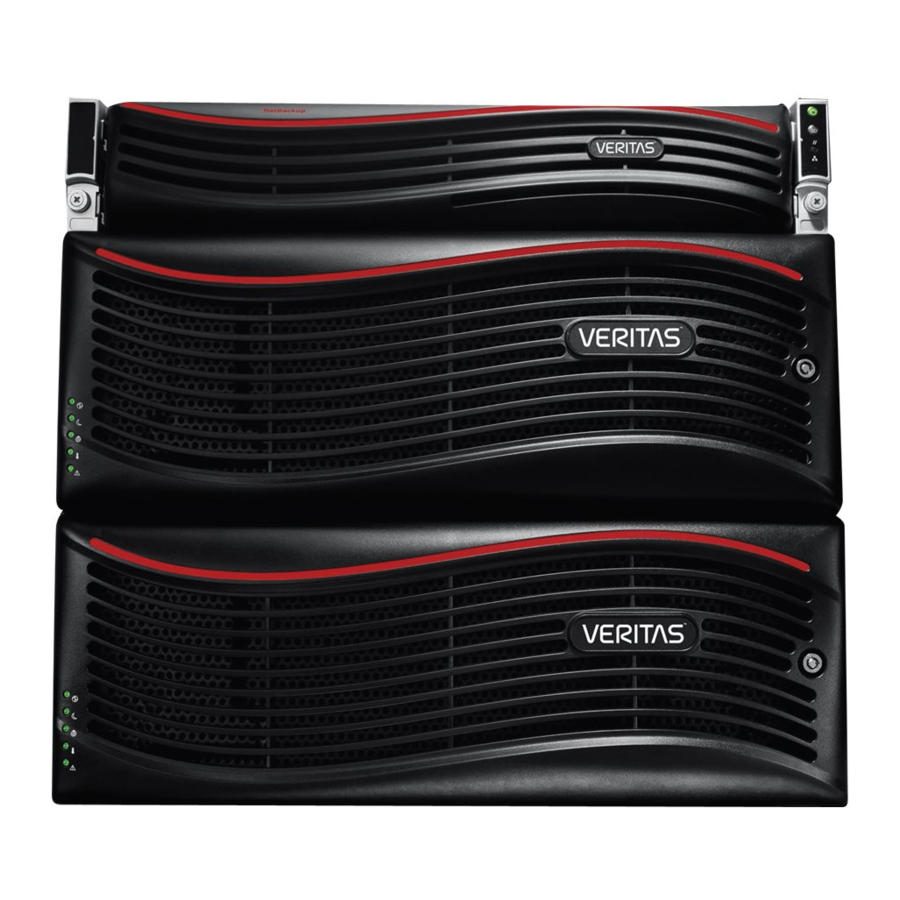

The NetBackup 5330 Appliance is a hardware and software storage system that scales to a total of
456TB of available backup capacity. It consists of a 2U NetBackup 5330 Appliance compute node
and one attached 4U NetBackup Primary Storage Shelf. You can add up to two optional 4U Expansion
Storage Shelves if you require additional storage.
The NetBackup 5330 Appliance compute node contains eight 3TB SAS disks, which can be accessed
from the front panel. An embedded RAID controller on the compute node's mainboard is used to
configure six of the eight disks into two RAID1 mirrored volumes, plus two hot-spare disks. These
volumes are labeled Volume 0 and Volume 1. If a disk in either RAID volume experiences a hardware
error, the appliance automatically initiates a RAID rebuild operation. During the rebuild operation, the
appliance randomly selects a hot-spare disk, and then rebuilds the RAID volume.
The disks in slot 6 and slot 7 are reserved for future use, while the slots 8 through 11 are empty.
A small control panel is on the right side of the front panel. It contains system LEDs and operations
buttons, including the power button.
Front view of the NetBackup 5330 Appliance compute node
Figure 1
1

Advertisement

loading

Related Manuals for VERITAS NetBackup 5330

Summary of Contents for VERITAS NetBackup 5330

  • Page 1 Affected Models NetBackup 5330 Appliance The NetBackup 5330 Appliance is a hardware and software storage system that scales to a total of 456TB of available backup capacity. It consists of a 2U NetBackup 5330 Appliance compute node and one attached 4U NetBackup Primary Storage Shelf. You can add up to two optional 4U Expansion Storage Shelves if you require additional storage.
  • Page 2 The appliance must be shut down and turned off completely before you remove the cover. If the appliance is not shut down, contact the customer for shutdown or the Veritas Field Service Coordinators if the customer is not available.
  • Page 3 HSP 151 Storage shelf SAS cable replacement Number Definition Color Power LED Green Standby LED Green Locate LED White Over-temperature LED Amber Over-temperature LED Amber Each drawer in a storage shelf contains slots for 12 disks. The disks are numbered as shown in the following diagram.

  • Page 4: Electrical Safety

    This document describes how to remove and replace damaged or faulty NetBackup 5330 storage shelf SAS data cables while the appliance is operating. Because of SAS cabling redundancy, you can replace the damaged or faulty SAS data cables without shutting down the entire NetBackup 5330 Appliance system.
  • Page 5 HSP 151 Storage shelf SAS cable replacement • Standard 1 meter SAS data cables are provided with the Primary Storage Shelf and the Expansion Storage Shelf. However, optional 2 meter SAS data cables are also available for use with the storage shelves.
  • Page 6 HSP 151 Storage shelf SAS cable replacement Removing and replacing NetBackup 5330 storage shelf SAS data cables Warning: Remove only one SAS data cable at a time. To remove and replace a NetBackup 5330 storage shelf SAS data cable • Do one of the following: •...
  • Page 7 HSP 151 Storage shelf SAS cable replacement Obtain the replacement SAS data cable. Gently plug one end of the SAS data cable into the SAS port on the first Expansion Storage Shelf where you removed the previous cable. Gently plug the other end of the SAS data cable into the SAS port on the second Expansion Storage Shelf where you removed the previous cable.
