Veritas Appliance
Hardware Service Procedure
Operating system disk drive and log disk drive replacement -
NetBackup 5240 Appliance
Document Number: 171
Version: 4.0 (7/04/16)

Purpose

This document describes the process for replacing a 1-TB operating system hard disk drive and a
1-TB log disk drive in the NetBackup 5240 Appliance.

Affected Models

NetBackup 5240 Appliance
The NetBackup 5240 Appliance is a hardware and software storage system that can scale to 220 TB
of available backup capacity. It consists of a NetBackup 5240 Appliance and up to four optional
NetBackup 5240 Appliance Storage Shelves. By itself, the 2U NetBackup 5240 Appliance offers
internal data storage from 4TB to 27TBs, depending on the storage configuration you purchase. When
additional storage is required, you can attach up to four 2U storage shelves to the NetBackup 5240
Appliance. Each NetBackup 5240 Appliance Storage Shelf offers 49TBs of backup storage capacity.
Attaching four storage shelves offers 196TBs of storage, in addition to the internal storage that is
available with the NetBackup 5240 Appliance.
SAS-3 cables are used to connect the NetBackup 5240 Appliance to the storage shelves. SAS-3
cables are also used to connect the storage shelves to each other.

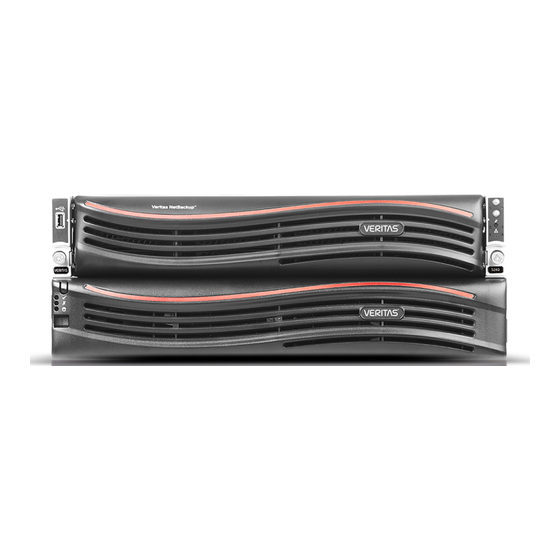

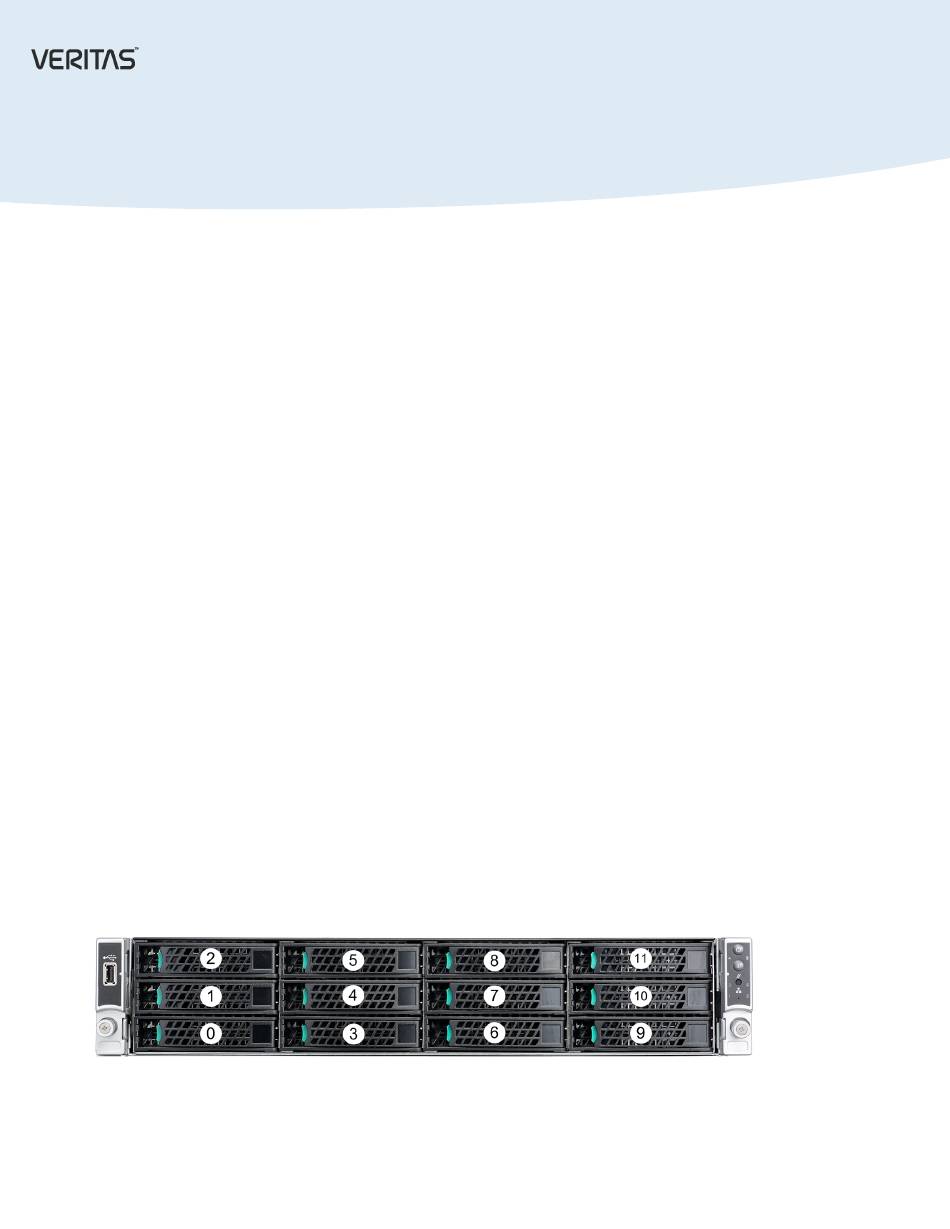

Front view of the NetBackup 5240 Appliance
Figure 1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetBackup 5240 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VERITAS NetBackup 5240

Summary of Contents for VERITAS NetBackup 5240

  • Page 1 Affected Models NetBackup 5240 Appliance The NetBackup 5240 Appliance is a hardware and software storage system that can scale to 220 TB of available backup capacity. It consists of a NetBackup 5240 Appliance and up to four optional NetBackup 5240 Appliance Storage Shelves. By itself, the 2U NetBackup 5240 Appliance offers internal data storage from 4TB to 27TBs, depending on the storage configuration you purchase.
  • Page 2 This section describes how to replace a 1-TB operating system disk drive or a 1-TB log file disk drive in the NetBackup 5240 Appliance. The NetBackup 5240 Appliance operating system is installed on two internal RAID 1 (mirrored )1-TB hard disks. The operating system disks are located in drive bay slots 0 and 1. The appliance also uses two internal RAID 1 (mirrored) 1-TB disk drives to store appliance software-generated log files.
  • Page 3 HSP #171 Operating system and log file disk drive replacement: NetBackup 5240 Appliance NetBackup 5240 Appliance operating system disk drive and log file disk drive slot locations Figure 3 Caution: Only 1-TB drives can be used in slots 0 - 3. Make sure you do not replace the faulty drive with any other size drive.
  • Page 4 HSP #171 Operating system and log file disk drive replacement: NetBackup 5240 Appliance In the front panel, check for a solid amber drive status LED. The drive status LED is the bottom of the two LEDs on the disk drive face plate. If the LED is blinking amber, the disk drive is in the process of rebuilding and must not be disturbed.
  • Page 5 HSP #171 Operating system and log file disk drive replacement: NetBackup 5240 Appliance Place the drive in an ESD-protective bag. To install the disk drive Put on an ESD-compliant wrist strap or take other ESD-protective measures. Remove the replacement disk drive from the ESD-protective wrapper.
