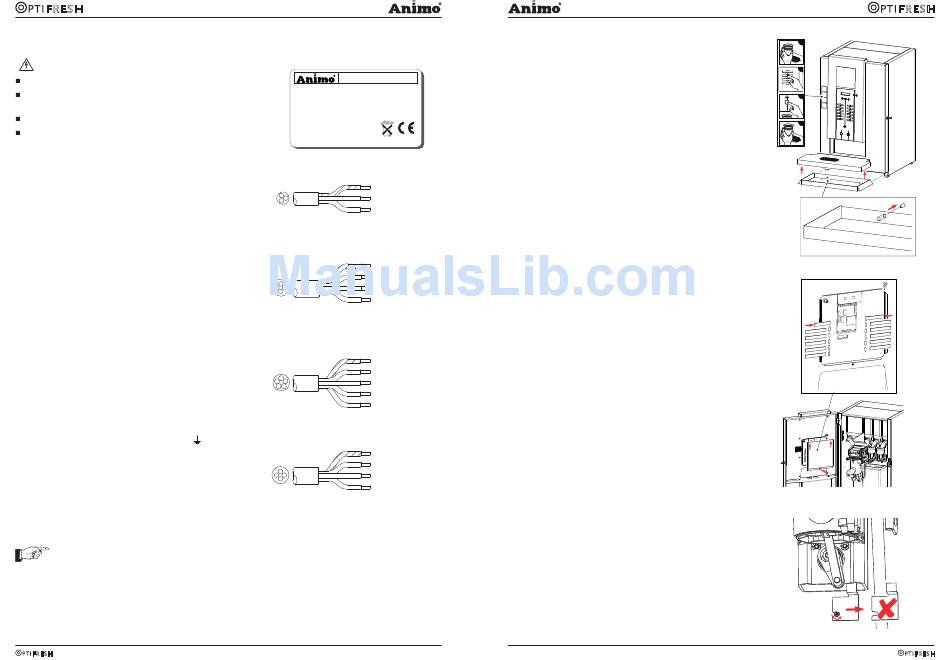

3.4 Electrical connection
WARNING
Supply voltage and frequencies can differ per country.
Check if the appliance is suitable for connection
to the local power mains.
Check if the details on the type plate (¿ g. 6) correspond.
Connect the appliance to an earthed wall socket.
The earthed wall socket and the fused group with a
main switch belong to the electrical installation.
No heavy machines that could cause variations in
power when being switched on, can be connected to
this group.
A machine with power current (two or three phase) is
supplied from the factory without plug. At delivery, the
machine must be provided with an electrically suitable
plug as advised and provided by the installer.
Depending on the appliance's electrical set-up, it must
be connected as below.
(¿ g. 7) 1 N~ 230V (3 core cable)
(¿ g. 8) 2 N~ 400V (4 core cable)
(¿ g. 9) 3 N~ 400V (5 core cable)
(¿ g. 10) 3 ~ 230V (4 core cable)
The following points should be observed when wiring
a new plug:
1. The GREEN/YELLOW colored wire [ EARTH ] should
be connected to the terminal which is either marked
with the letter [ PE ], the "earth" symbol ( ), or
colored green/yellow.
2. The BLUE colored wire [ NEUTRAL ] should be
connected to the terminal which is either marked with
the letter [ N ] or colored black.
3. The BROWN, BLACK and GRAY colored wire
[PHASE ] should be connected to the terminal which
is either marked with the letter [ L1, L2 and L3 ].
If the installation instructions are not met,
the supplier cannot be held liable for any
consequences.
Premium coffee makers &
beverage equipment
OptiVend [ type ]
[ Art. No. ] / [ Mach. No. ]
_______ V 50-60Hz ______ W
M A D E I N H O L L A N D
Gr/Ye - Earth (PE)
3
Blue - Neutral (N)
Brown - Live
Gr/Ye - Earth
Blue - Neutral (N)
4
Brown - Live 1 (L1)
Black - Live 2 (L2)
Gr/Ye - Earth
Blue - Neutral (N)
5
Brown - Live 1 (L1)
Black - Live 2 (L2)
Gray - Live 3 (L3)
Gr/Ye - Earth
Brown - Live 1 (L1)
4
Black - Live 2 (L2)
Gray - Live 3 (L3)
60 07/2009 Rev. 0.9

3.5 Drip tray discharge

It is possible to ¿ t a waste hose to the drip tray.
In order to do so, please remove the synthetic plug from
the connection at the back (¿ g. 11) and apply the waste
hose.

3.5.1 Applying info sticker

Apply (if desired) the information sticker (Figure 11)
next to the control panel so a user easily can see which
buttons to push.
Fig. 6
(L)
Fig. 7
(PE)

3.6 Applying recipe strips

The factory does not yet apply the recipe strips next to
the buttons. The device is always delivered together
Fig. 8
with a sheet of various recipe strips.
Please slide the recipe strip that is applicable to your
situation in the window next to the corresponding button
(¿ g. 12).
(PE)
Section 3.8 Standard recipe settings will show you
which recipes (drinks) correspond to the factory setting.
The service appendix (chapter 3) describes how every
individual recipe (drink) can be set. After you set a
modi¿ ed recipe, make sure you slide the appropriate
Fig. 9
slide-in strip into the window next to the corresponding
button.
If your dealer took the service attachment away after
(PE)
installing the device, then please contact your dealer.
Fig. 10

3.7 Removing the transit safety

The brewer has been secured at the factory for safe
transportation.
The transit safety must be removed before you start us-
ing the device (¿ g. 13) so that the brewer can be taken
out of the machine for cleaning.
Attention: tighten the screw that ¿ xed the transport
safety again.
07/2009 Rev. 0.9
1
2
COFFEE
KOFFIE
KAFFEE
CAFÉ
3
4
Fig. 11
Fig. 12
Fig. 13
61
