3. INSTALLATION

This device should only be placed and connected by an authorised service engineer. The following
must be taken into account:
• Only suitable for indoor use
• Unsuitable for use in damp areas
• Unsuitable in areas with a risk of explosion
3.1 Unpacking
In order to prevent any damage to your new purchase, the device is carefully packaged.
You should carefully remove the packaging without using any sharp objects. Check whether the device
is complete. In order to protect the device, the stainless steel sections are partly wrapped in protective
foil. This foil should be removed during installation.
The device is supplied with the following accessories:
(Some accessories are located in the litter bin next to the brewer.)
Number
Coffee residue litter bin 1
Reception tray brewer 1
Drip tray + grid 1
Door keys 2
Jug lock keys 2
Service pen 1
Coffee fur remover (sachet) 1
If some parts are missing or damaged, please contact your dealer.
WARNING
Some water will always remain in the heating system. Therefore never place the device in an area
where the temperature can drop below freezing.

3.2 Placement preparation

• Place the device at work top height on a ¿ rm, À at surface so that it can support the weight of the
(¿ lled) device.
• Make sure that the device is level and cannot cause damage in case of any leakage.
• Make sure that the ventilation openings at the back of the device are not obstructed.
• The water supply and electricity plug should be no further than half a meter away from the position
of the device.
• These installation technical preparations must be out sourced by the user and should be carried out
by an authorised ¿ tter according to the general and local regulations.
• Only the service engineer can connect the device to the prepared connection points.
Number
Extra permanent¿ lter brewer
Recipe strips (set)
User manual
Service manual
Disassembly equipment ¿ lter
1.5 m Connection hose
0.5 m Drain hose (Drip tray)
58 07/2009 Rev. 0.9

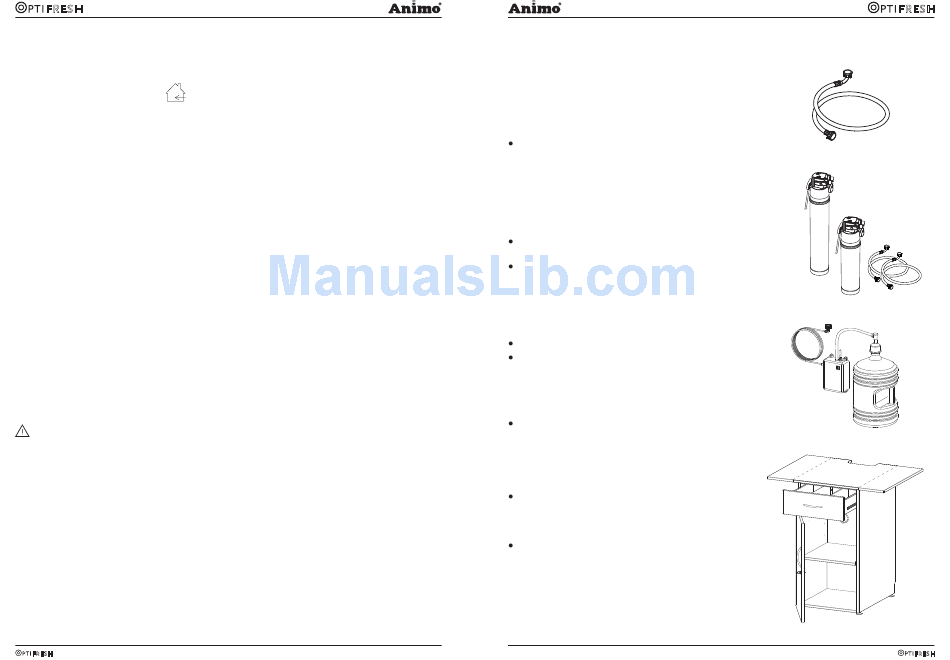

3.3 Water connection

Connect the device to a well accessible tap with air
valve, which can be turned off quickly in case of prob-
lems. The minimal water pressure must not fall below 1
bar (at 5 l/min À ow pressure).
If necessary, the OptiFresh can be connected to hot
water. We explicitly advise you to use a special hot
water connection tube (¿ g. 2).
Hot water connection tube
3.3.1 Water treatment (¿ g. 3)
We explicitly advise you to use a water softener and/
or water ¿ lter if the tap water has been chlorinated or is
too hard. This increases the quality of the drink and will
ensure that you do not have to descale the device too
often.
Filter system Brita AquaQuell 1.5
incl. ¿ lter template and connection tube set
Filter template Brita AquaQuell 1.5
1
1
3.3.2 Stand-alone pump set (¿ g. 4)
If no ¿ xed water connection point is present near the
1
machine, a stand-alone pump set can be supplied as
1
an option.
Water pump stand-alone
1
Water tank 18 litre stand-alone
1
1
3.3.3 Base cabinets (¿ g. 5)
A number of base cabinets are available as an option
for the OptiFresh fresh brew machine.
Base cabinet
Prepared for building in a stand-alone pump set and
for fitting a water filter at the back.
Work top large
Work top small
Base cabinet with cooling unit
Prepared for building in a cooling unit (OptiFresh Hot
& Cold) and for fitting a water filter at the back.
Base cabinet with transit
Prepared for building in a collection unit for collecting
more coffee residue and for fitting a water filter at the
back. This base cabinet does not have a drawer!
Transit work top large
Transit work top small
07/2009 Rev. 0.9
60°C
Art. No. 08175.
Art. No. 99681
Art. No. 07996
Art. No. 93500
Art. No. 01013
Art. No. 65070
Art. No. 03390
Art. No. 03357
Art. No. 65065
Art. No. 65060
Art. No. 65031
Art. No. 65032
59
Fig. 2
Fig. 3
Fig. 4
Fig. 5
