4.1.9

To import and export a system configuration

If you need to reuse a configuration in another EXPLORER 5075GX, you can save the
current configuration to a file, which can then be loaded into another EXPLORER 5075GX.
You can also use this feature for backup purposes.
Important
The configuration file contains all the settings you have entered during system setup:
satellite profiles, VSAT modem profiles, LAN setup, user permissions etc.
To save a configuration to a file, do as follows:
1. Select ADMINISTRATION > Export/import config.

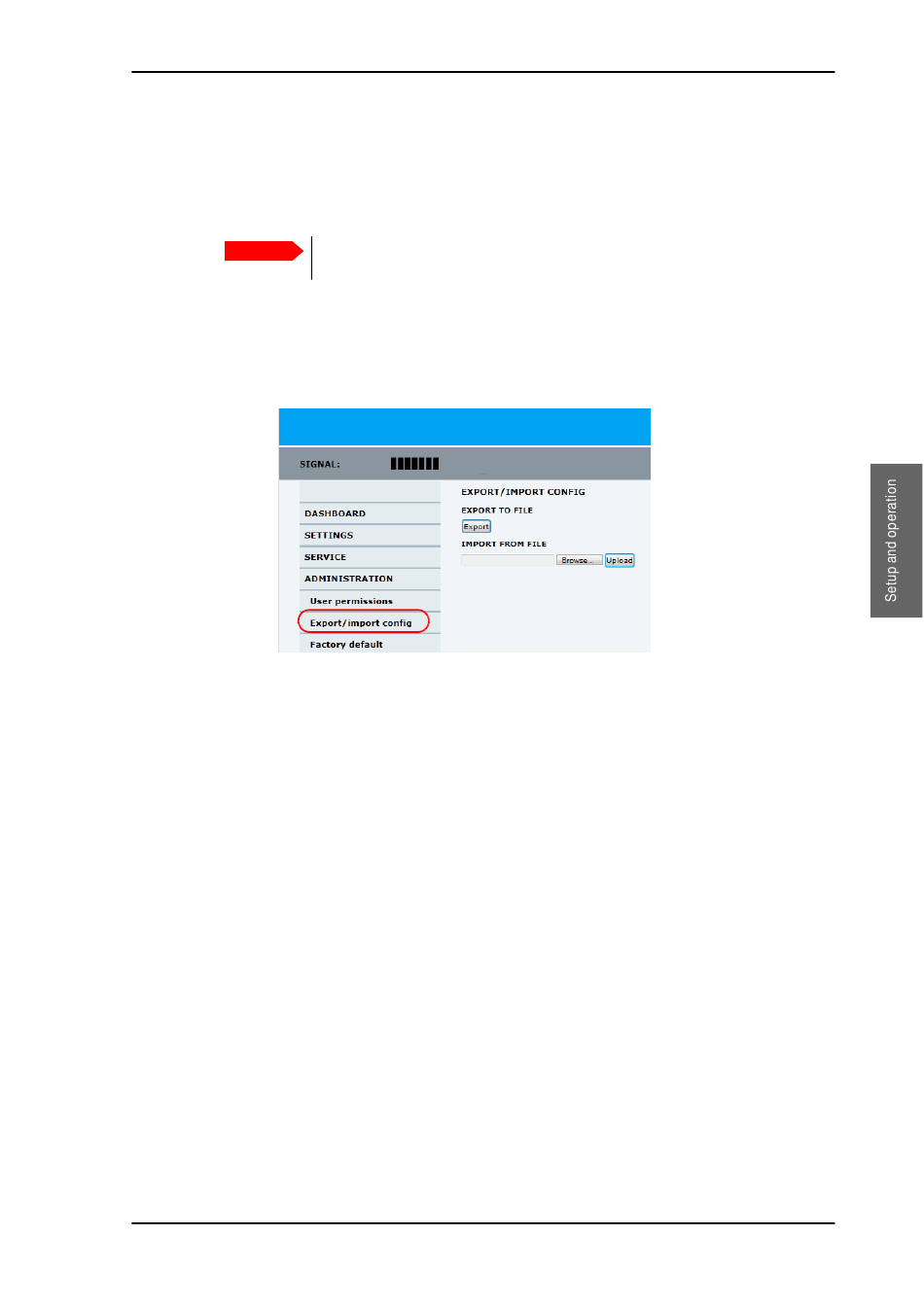

Figure 4-13: Web interface: Administration, Export/import configuration
2. Click the button Export. Follow the download instructions on the screen. You can use
this configuration file for upload into another EXPLORER 5075GX,
To load a configuration from a file, do as follows:
1. Select ADMINISTRATION > Export/import config.
2. Click the button Browse and locate the configuration file (.cfg file) you want to upload.
Then click the button Open.
3. In the web interface click the button Upload.
To clone a system configuration, do as follows:
1. Reset to factory default, see the following section for details.
2. Import a configuration from file, see section above.
98-143492-B
Load and save configurations can only be done with the same software
version in the units involved.
Chapter 4: Setup and operation
Setup using the web interface
4-15
