DocuCutter 545
Position Detection
Each Slitter has a Sensor Plate mounted to the top of the
Slitter. The Sensor Plate has a slot that permits the Slitter
Sensor to activate when the Slitter is in the home position.
The Sensor Plates are shown in Figure 15.
NOTE The Slitter Sensor Plate can be moved side-to-side
several millimeters when the mounting screws are
loosened. The available movement is for factory setup
and should not be changed. Slitter calibration position is
performed through the service menu.
LEFT SLITTER UNIT POSITION SHAFT
SENSOR PLATE
BEARING
TO LEFT SLITTER STEPPER MOTOR
SENSOR PLATE
LEFT SLITTER UNIT
TO RIGHT SLITTER STEPPER MOTOR
KEYWAYS
RIGHT SLITTER UNIT
RIGHT SLITTER UNIT POSITION SHAFT
SLITTER DRIVE GEARS

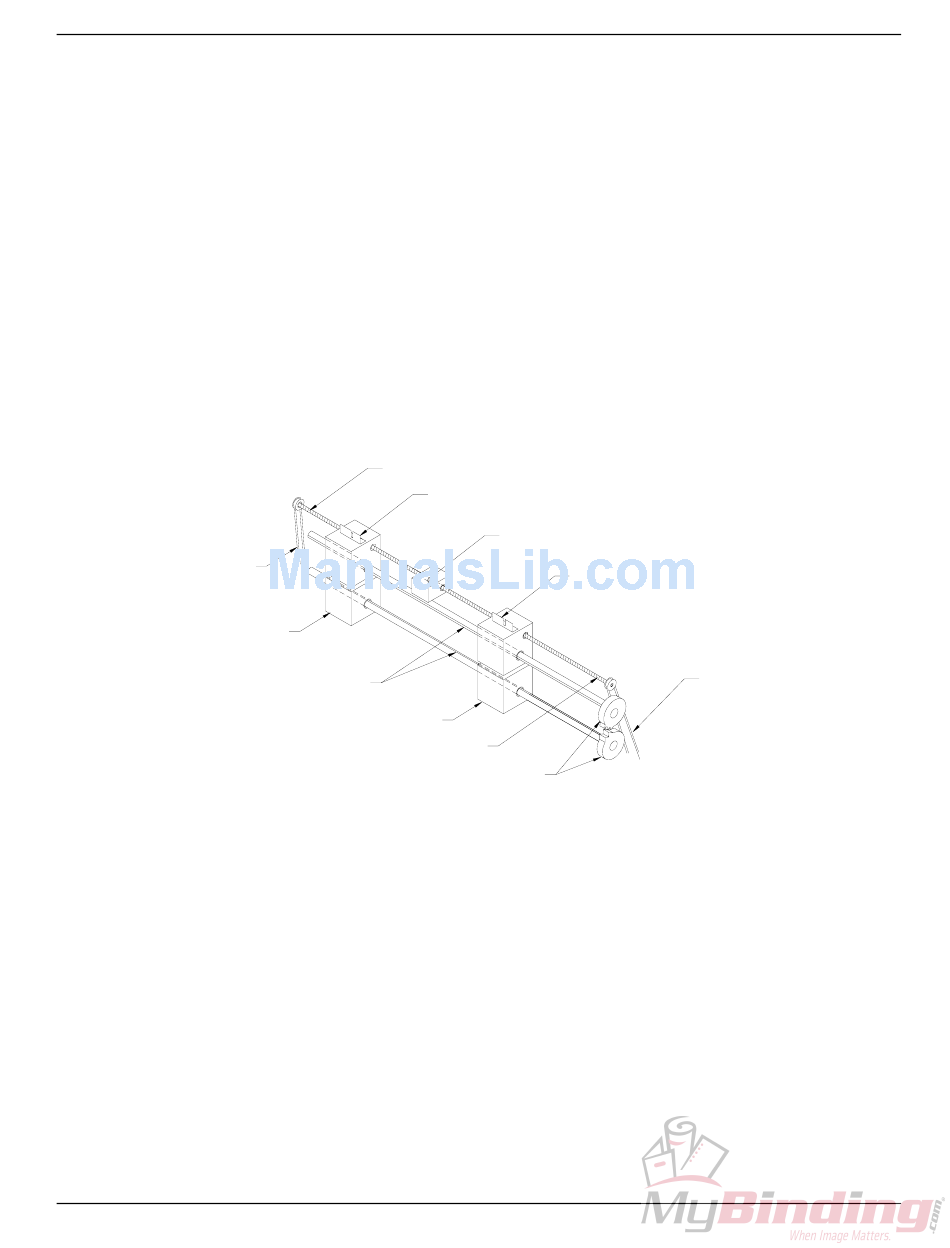

Figure 15. Slitter Components
