Paper Path - Duplo DocuCutter DC-545 Service Training Manual

Names and Locations of Paper Path Components
Item
Number
1 Input Feed Rollers
2 Input Roller
3 Upper Primary Feed Roller
4 Upper Secondary Feed Roller
5 Right (Left) Margin Slitter Lead Screw 23
6 Upper Margin Slitter Drive Gear
7 Upper Cutter Feed Roller
8 Cutter Unit
9 Upper Creaser Feed Roller
10 Creaser Unit
11 Upper Center Slitter Feed Roller
12 Left Center Slitter Lead Screw
13 Upper Center Slitter Drive Gear
14 Right Center Slitter Lead Screw
15 Upper Rear Slitter Feed Roller
16 Rear Slitter Drive Lead Screw
17 Upper Rear Slitter Drive Gear
18 Upper Exit Feed Roller
© 2002, Duplo USA Corporation
DocuCutter 545

Paper Path

All of the finishing operations within the DocuCutter DC-
545 take place along the Main Paper Path. The locations
of the main paper path components are shown in Figure
14.
5
1 2 3 4 6
19
20 21

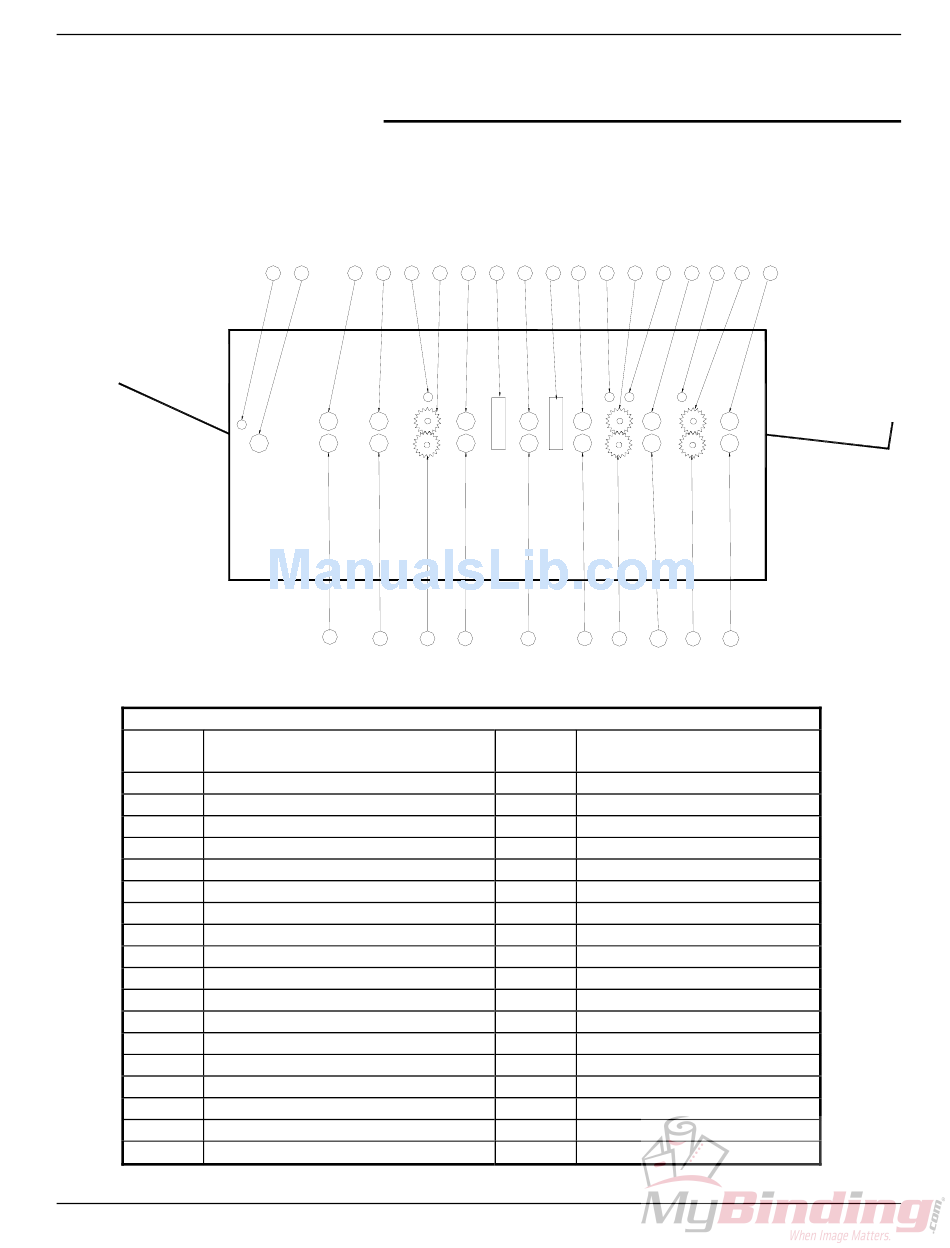

Figure 14. Main Paper Path Components
Descriptions
7 8 9 10 11 12 13
22 23 24 25
Item
Number
19 Lower Primary Feed Roller
20 Lower Secondary Feed Roller
21 Lower Margin Slitter Drive Gear
22 Lower Cutter Feed Roller
Lower Creaser Feed Roller
24 Lower Center Slitter Feed Roller
25 Lower Center Slitter Drive Gear
26 Lower Rear Slitter Drive Roller
27 Lower Rear Slitter Drive Gear
28 Lower Exit Drive Roller
DocuCutter 545 Training Guide
14 15 16 17 18
26 27 28
Descriptions
23
