Flexible Mounting
Step 4 Connect to a power source.
• To connect the assembly which uses flexible mount with direct-wired junction box
(CDB-MNT-FLEX-DIR) to a power source, use an armored cable. See
CDB-MNT-FLEX-DIR accepts 100V – 277V AC Input.
• To connect the assembly which uses flexible mount with IEC C14 power junction box
(CDB-MNT-FLEX-C14) to a power source, use country-specific power cord.
CDB-MNT-FLEX-C14 accepts 100V – 240V AC Input.

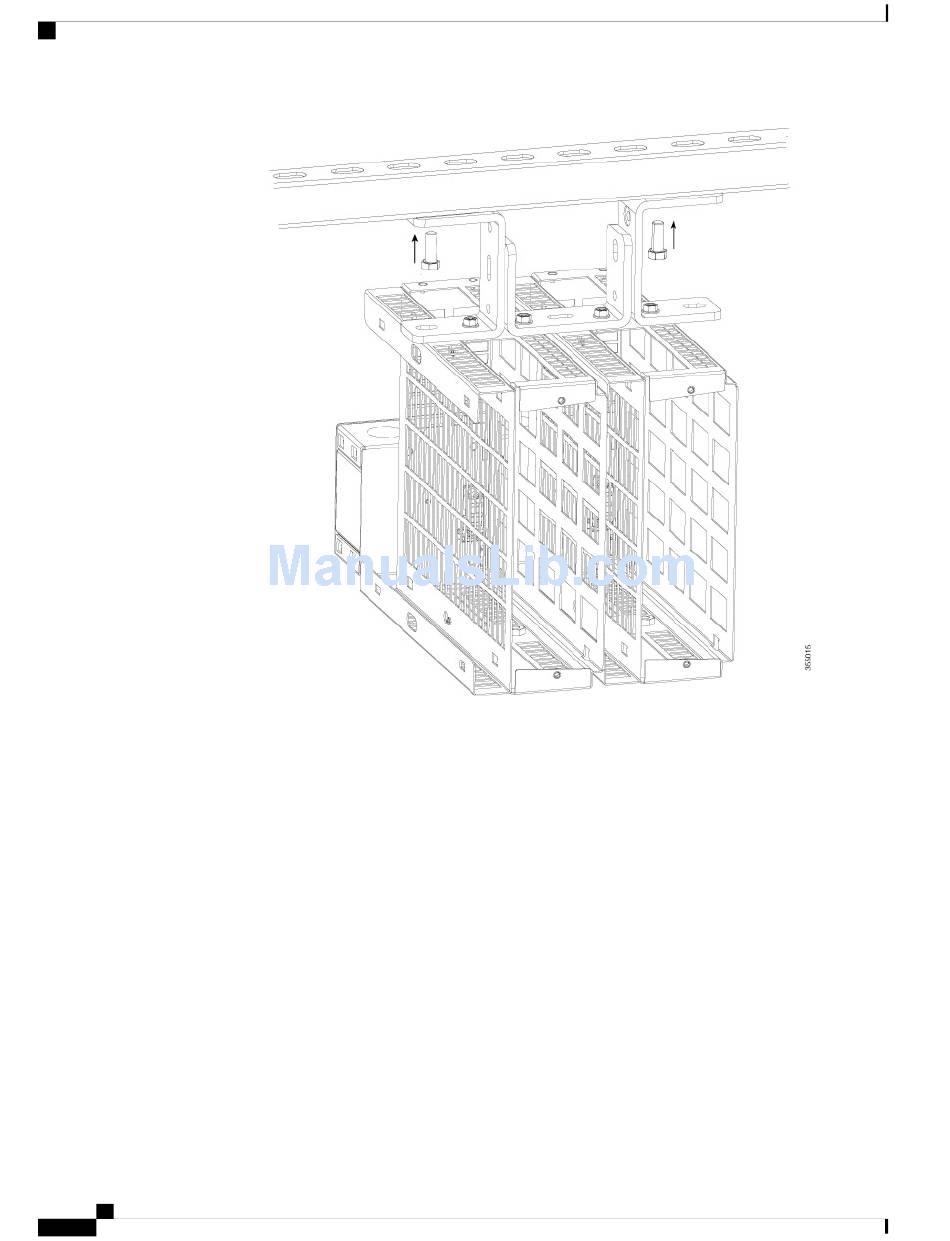

Step 5 Slide the switch into the flexible mount in a front mounting position as shown in the figure and tighten thumb
screws to secure the switch to flexible mount.
Catalyst Digital Building Series Switch Hardware Installation Guide
56
Switch Installation
Electrical Installation section.
