Flexible Mounting

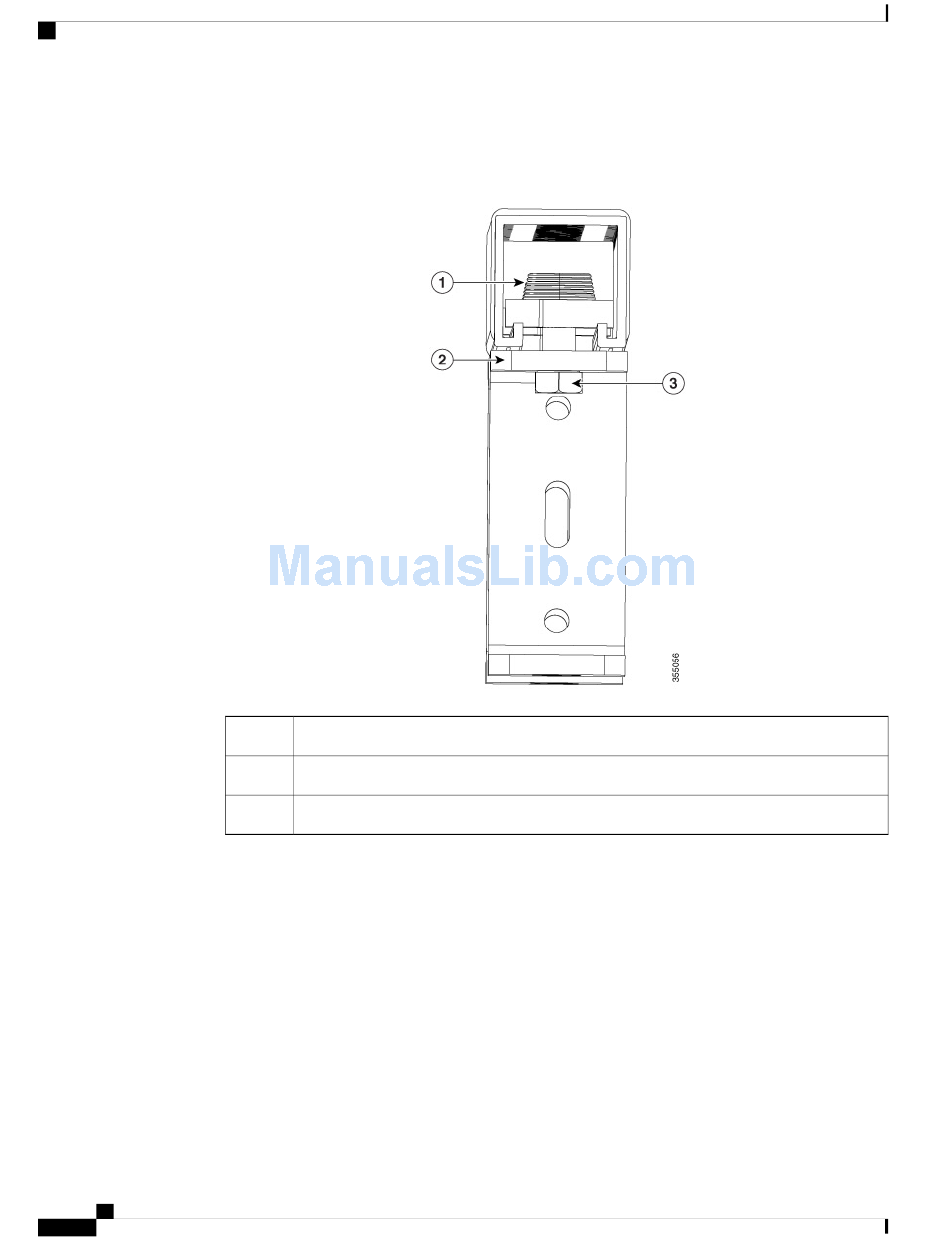

Figure 30: Strut Channel Nut Attachment Detail
1
2
3
Catalyst Digital Building Series Switch Hardware Installation Guide
44
Strut channel nut
U-shaped mounting bracket
Bolt matching the strut nut
• Strut channel nut slides is inserted into the channel and held by a spring or a plastic cone.
• The bracket acts as an integrated washer. So, strut washer is not required.
• Matching bolt is fed from below into the strut channel nut.
