Flexible Mounting
Step 3

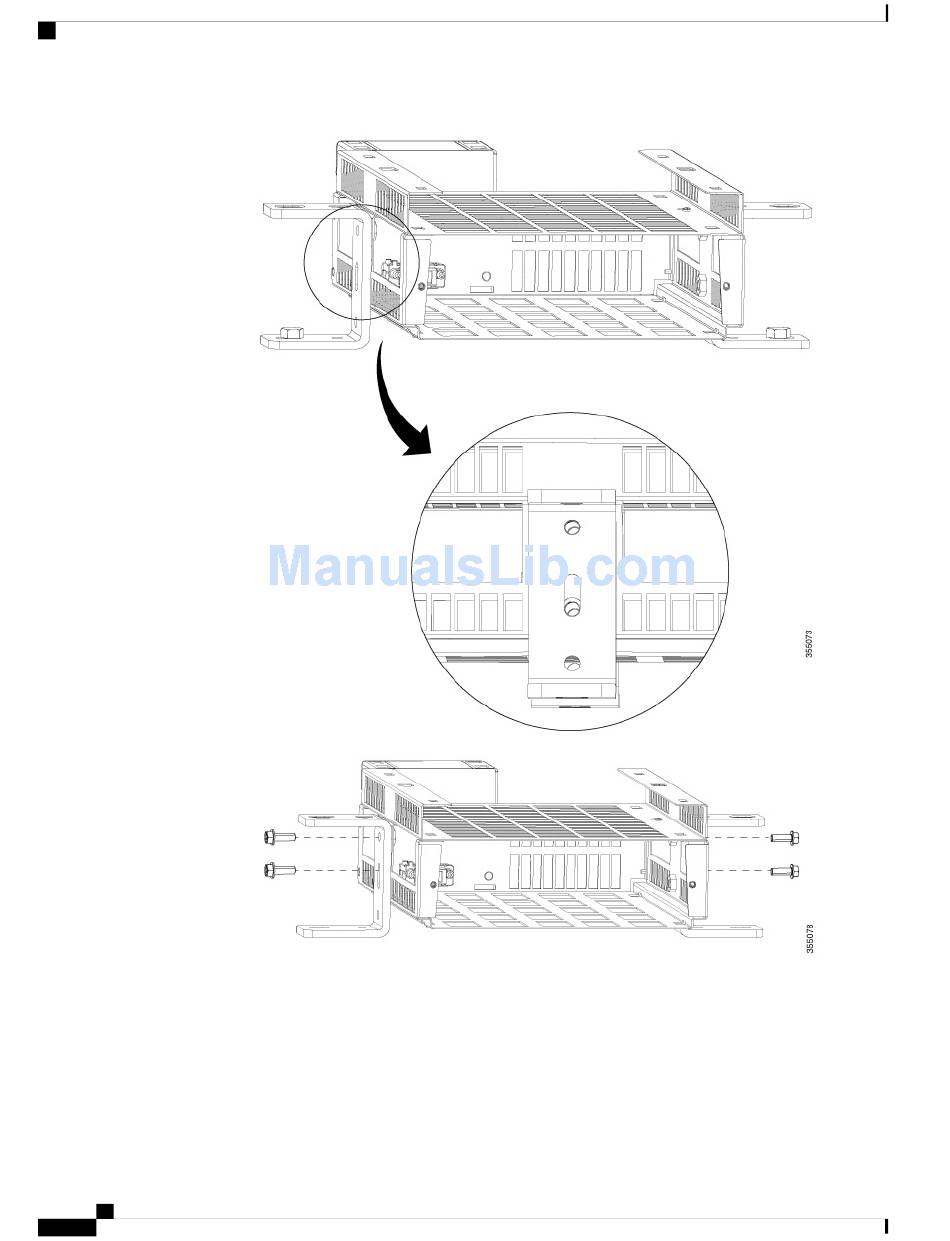

Position the assembly as shown in the figure. Align one of the screw holes — 1/4" or 3/8" — of the mounting
bracket to the strut nut hole on the strut channel and secure the bracket to the strut channel using a bolt matching
to the strut nut.
Note
Catalyst Digital Building Series Switch Hardware Installation Guide
34
The bolt must match the strut
nut.
Switch Installation
