Switch Installation
• Physical Installation - Includes horizontal mounting, vertical mounting and wall mounting
• Electrical Installation - Includes connecting the switch to a power source
The different types of mounting are described in detail in the sections below. You can use these mounting
positions to install the switch in a flexible mount.
• Horizontal Mounting
• Vertical Mounting
• Wall Mount

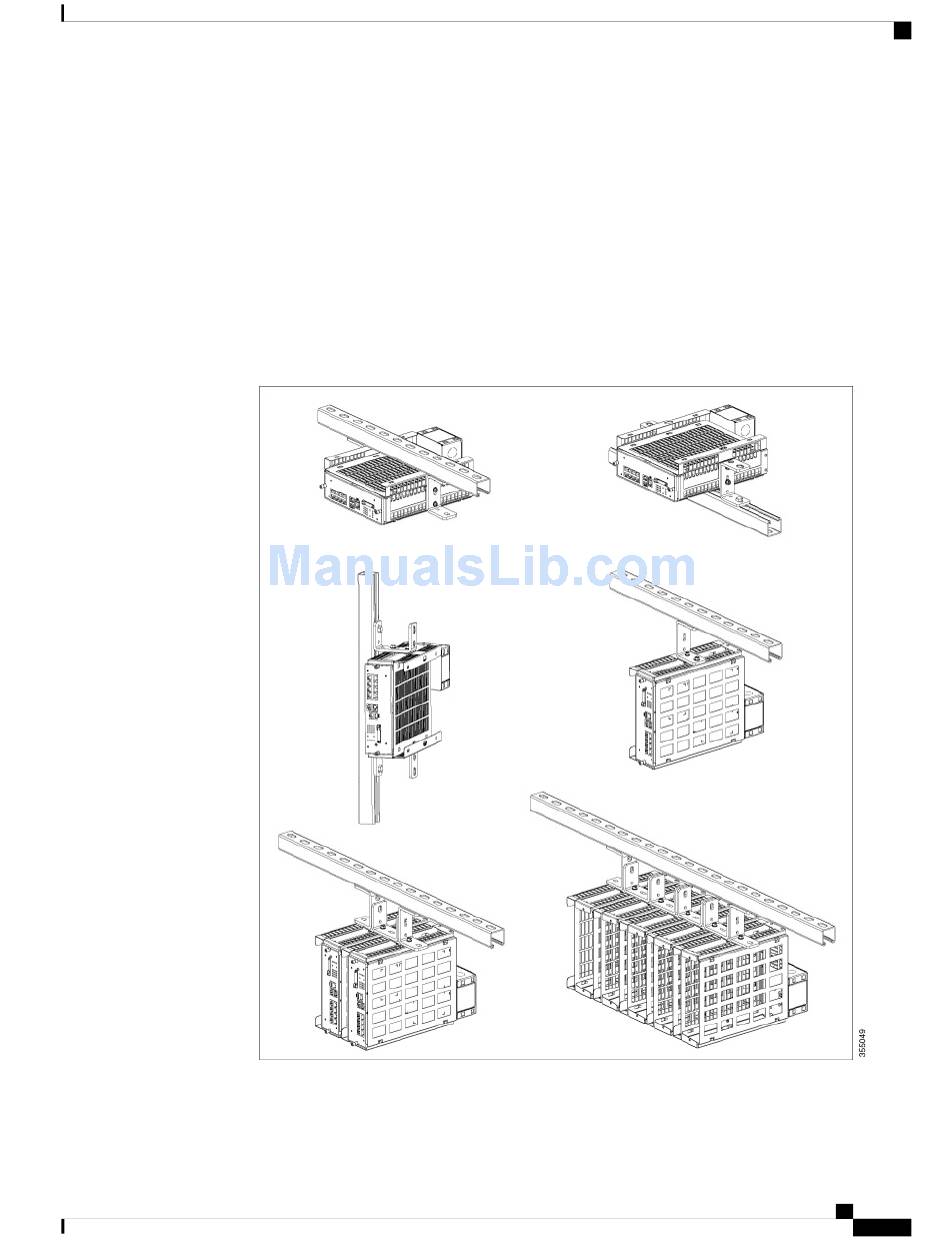

Figure 13: Mounting Orientations for Cisco Catalyst Digital Building Series Switch
Catalyst Digital Building Series Switch Hardware Installation Guide
Flexible Mounting
