Flexible Mounting
CDB-MNT-FLEX-C14 accepts 100V – 240V AC Input.
Step 5
Slide the switch into the flexible mount in a front mounting position as shown in the figure and tighten thumb
screws to secure the switch to flexible mount.
Warning

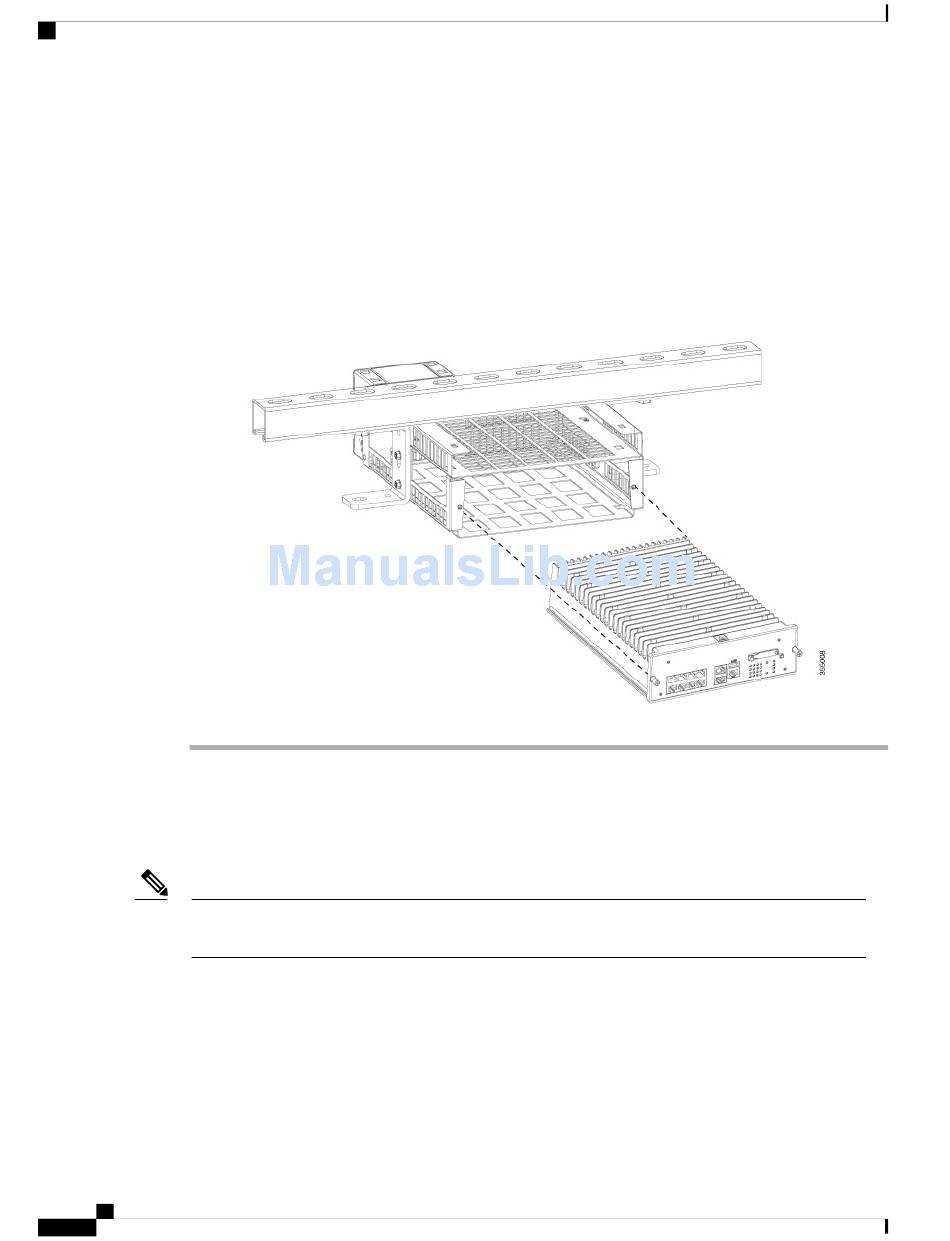

Figure 18: Inserting switch into flexible mount assembly

Horizontal Mounting - Overmount

To install the Catalyst Digital Building Series Switch in a flexible mount in horizontal overmount orientation,
follow these steps :
Note If you are using the flexible mount with a direct-wired junction box (CDB-MNT-FLEX-DIR), refer to the
Electrical Installation
Before You Begin
• Refer to
• Refer to
(CDB-MNT-FLEX-DIR).
Catalyst Digital Building Series Switch Hardware Installation Guide
30
Switches require at least 3 inches of space above the heatsink fins for proper cooling. Do not
stack multiple switches on top of each other in horizontal mounting orientation. To collocate
multiple switches, use top vertical mounting orientation as described in
section before you start the installation procedure.
Installation Guidelines section.
Electrical Installation section if you are using the flexible mount with direct-wired junction box
Switch Installation
Top Vertical Mount .
