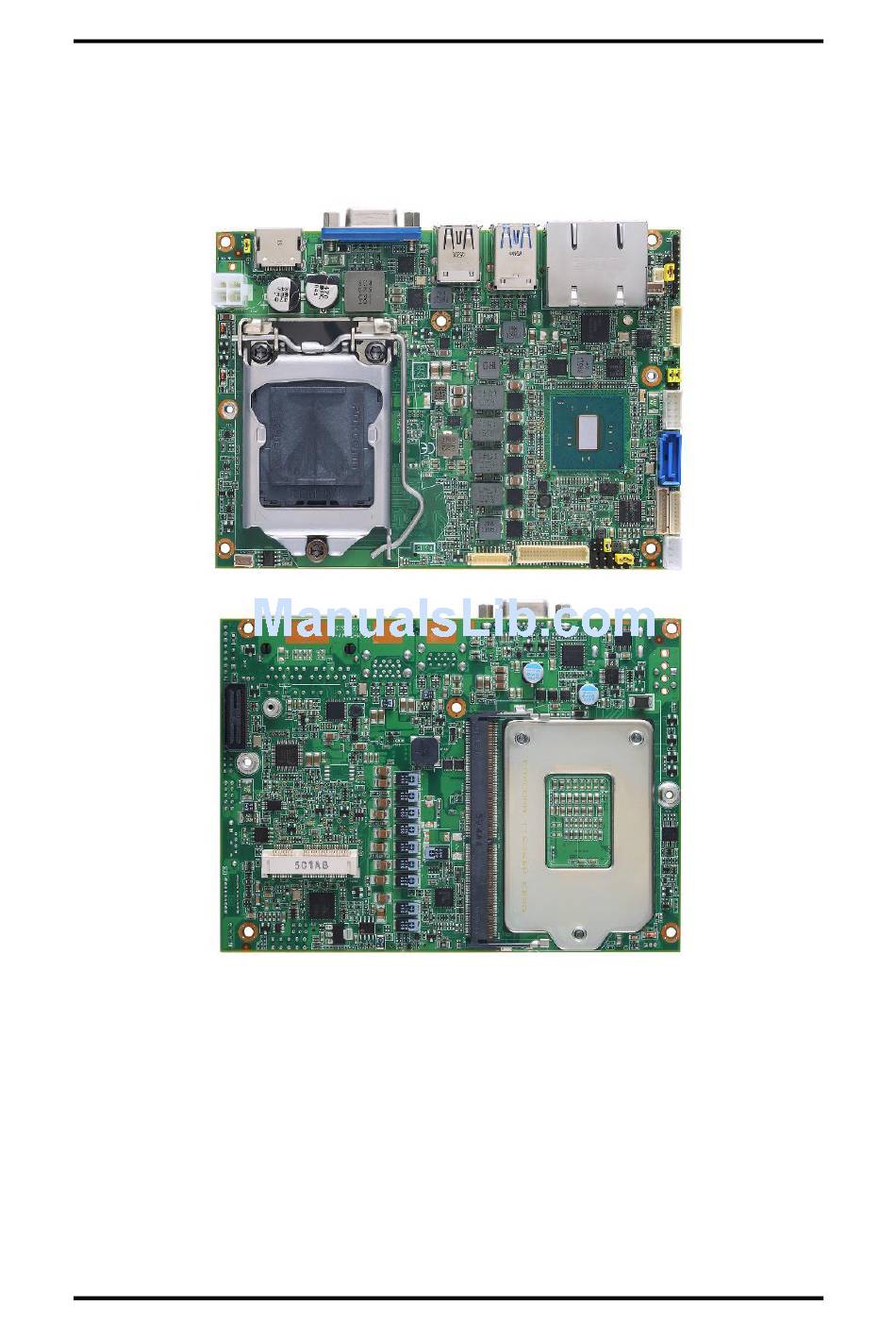

The CAPA500, a high performance 3.5" board, supports LGA1151 socket for 6
®
Generation Intel Core
delivers outstanding system performance through high-bandwidth interfaces, multiple I/O
functions for interactive applications and various embedded computing solutions.
There is one 260-pin unbuffered SO-DIMM socket for single channel DDR4 2133MHz memory
supporting up to 16GB memory capacity. It also features two Gigabit/Fast Ethernet ports, one
SATA port with transfer rate up to 6Gb/s, three USB 3.0 and three USB 2.0 high speed
compliant, and built-in HD audio codec that can achieve the best stability and reliability for
industrial applications. Additionally, it provides you with unique embedded features, such as
one serial port (RS-232/422/485) and 3.5" form factor that applies an extensive array of PC
peripherals.
Introduction
CAPA500 Intel
TM
i7/ i5/ i3 processors with H110 (Q170 optional) chipsets. The board
® TM
Core Processor Family 3.5" Board
Chapter 1
Introduction
th th
/ 7
1
