CAPA500 Intel Core Processor Family 3.5" Board

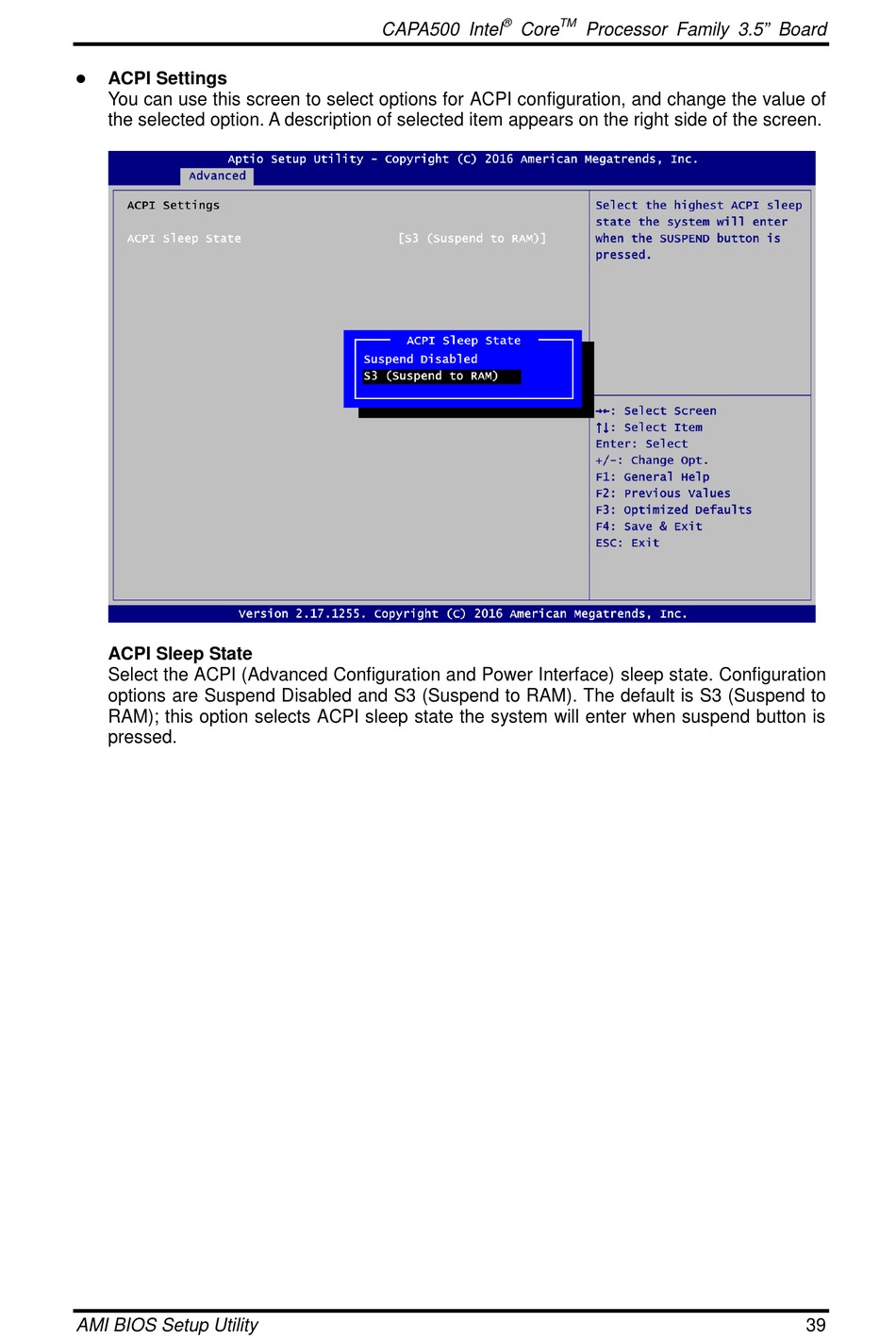

 ACPI Settings
You can use this screen to select options for ACPI configuration, and change the value of
the selected option. A description of selected item appears on the right side of the screen.
ACPI Sleep State
Select the ACPI (Advanced Configuration and Power Interface) sleep state. Configuration
options are Suspend Disabled and S3 (Suspend to RAM). The default is S3 (Suspend to
RAM); this option selects ACPI sleep state the system will enter when suspend button is
pressed.
AMI BIOS Setup Utility 39
