CAPA500 Intel Core Processor Family 3.5" Board

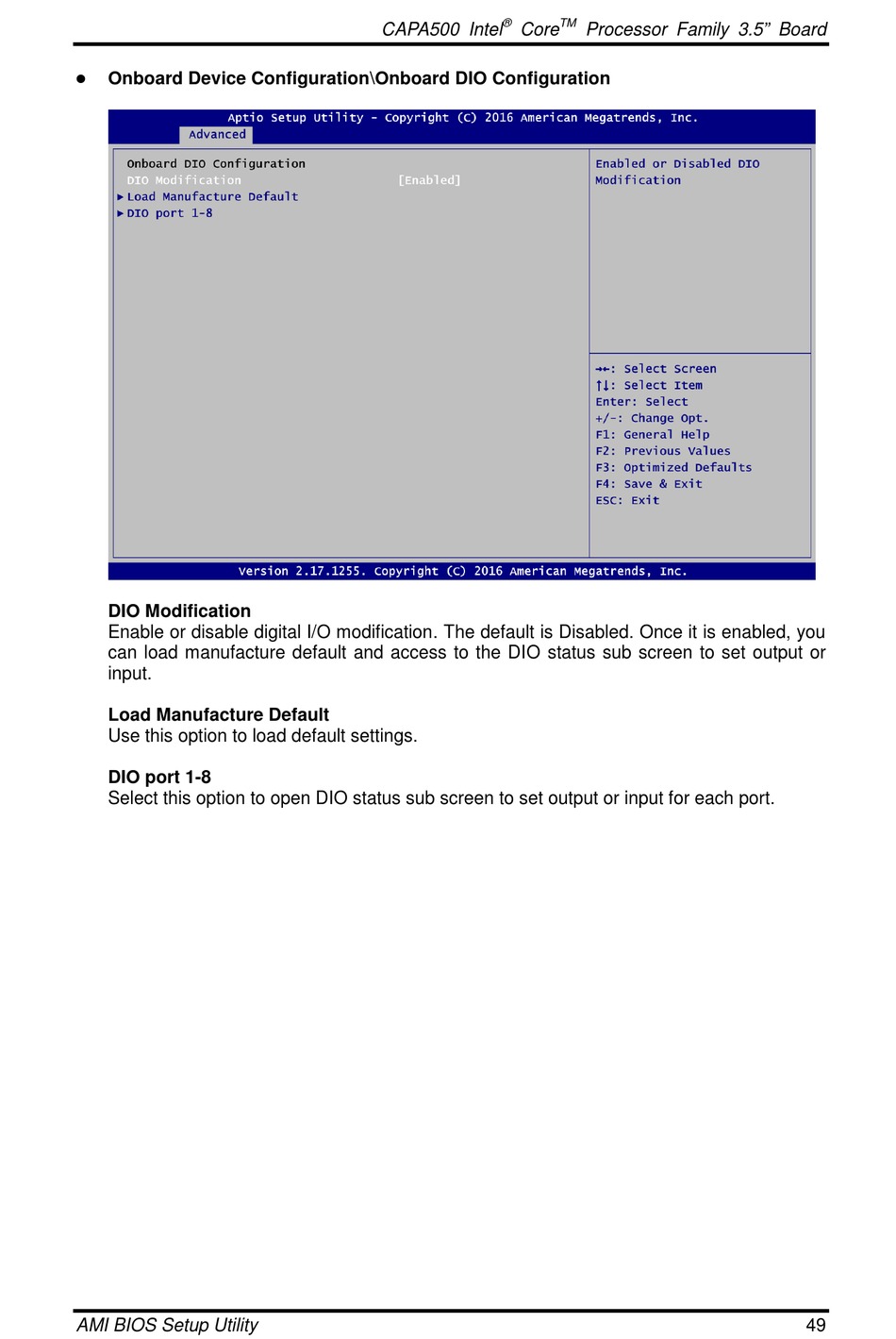

 Onboard Device Configuration\Onboard DIO Configuration
DIO Modification
Enable or disable digital I/O modification. The default is Disabled. Once it is enabled, you
can load manufacture default and access to the DIO status sub screen to set output or
input.
Load Manufacture Default
Use this option to load default settings.
DIO port 1-8
Select this option to open DIO status sub screen to set output or input for each port.
