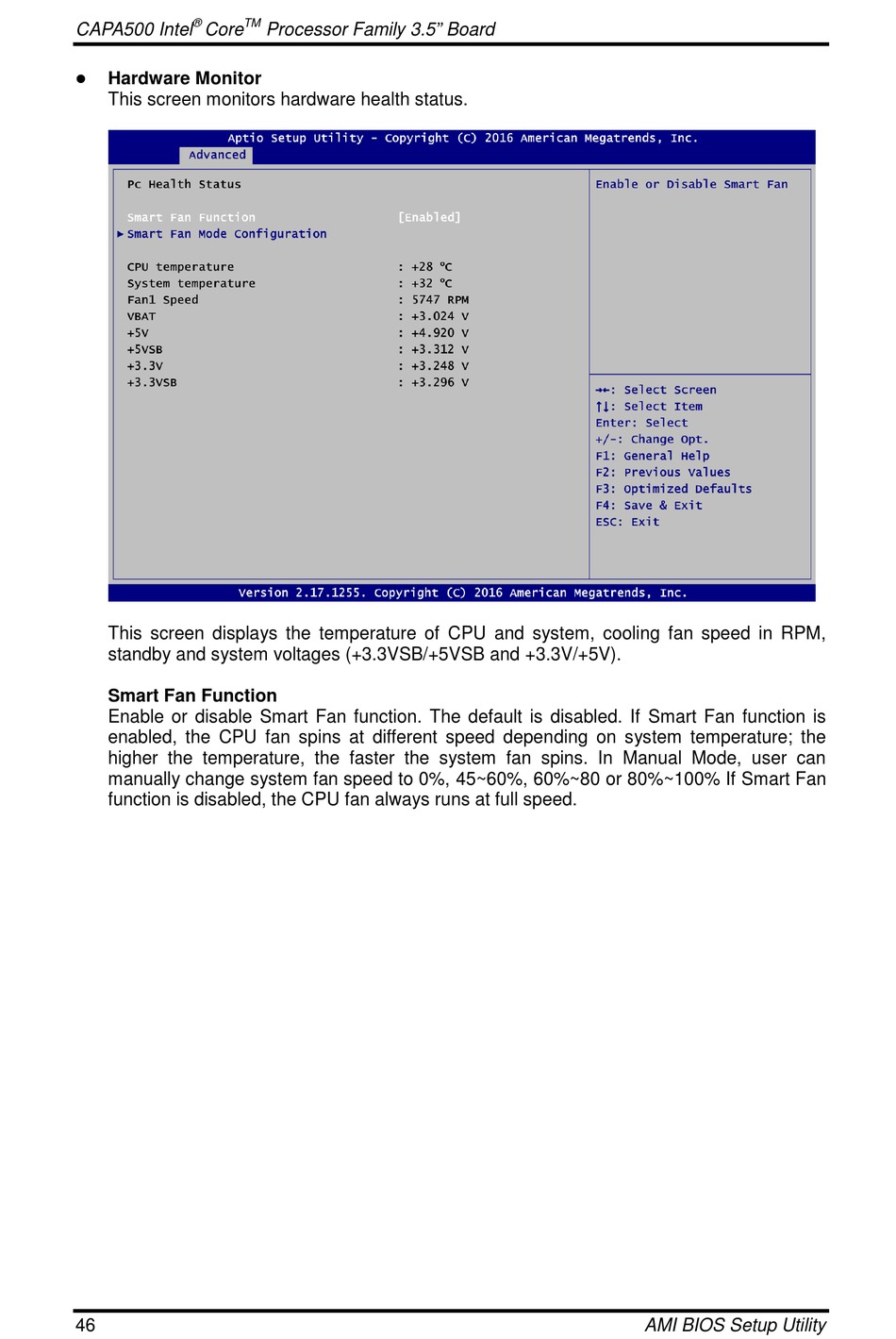

 Hardware Monitor
This screen monitors hardware health status.
This screen displays the temperature of CPU and system, cooling fan speed in RPM,
standby and system voltages (+3.3VSB/+5VSB and +3.3V/+5V).
Smart Fan Function
Enable or disable Smart Fan function. The default is disabled. If Smart Fan function is
enabled, the CPU fan spins at different speed depending on system temperature; the
higher the temperature, the faster the system fan spins. In Manual Mode, user can
manually change system fan speed to 0%, 45~60%, 60%~80 or 80%~100% If Smart Fan
function is disabled, the CPU fan always runs at full speed.
