CAPA500 Intel Core

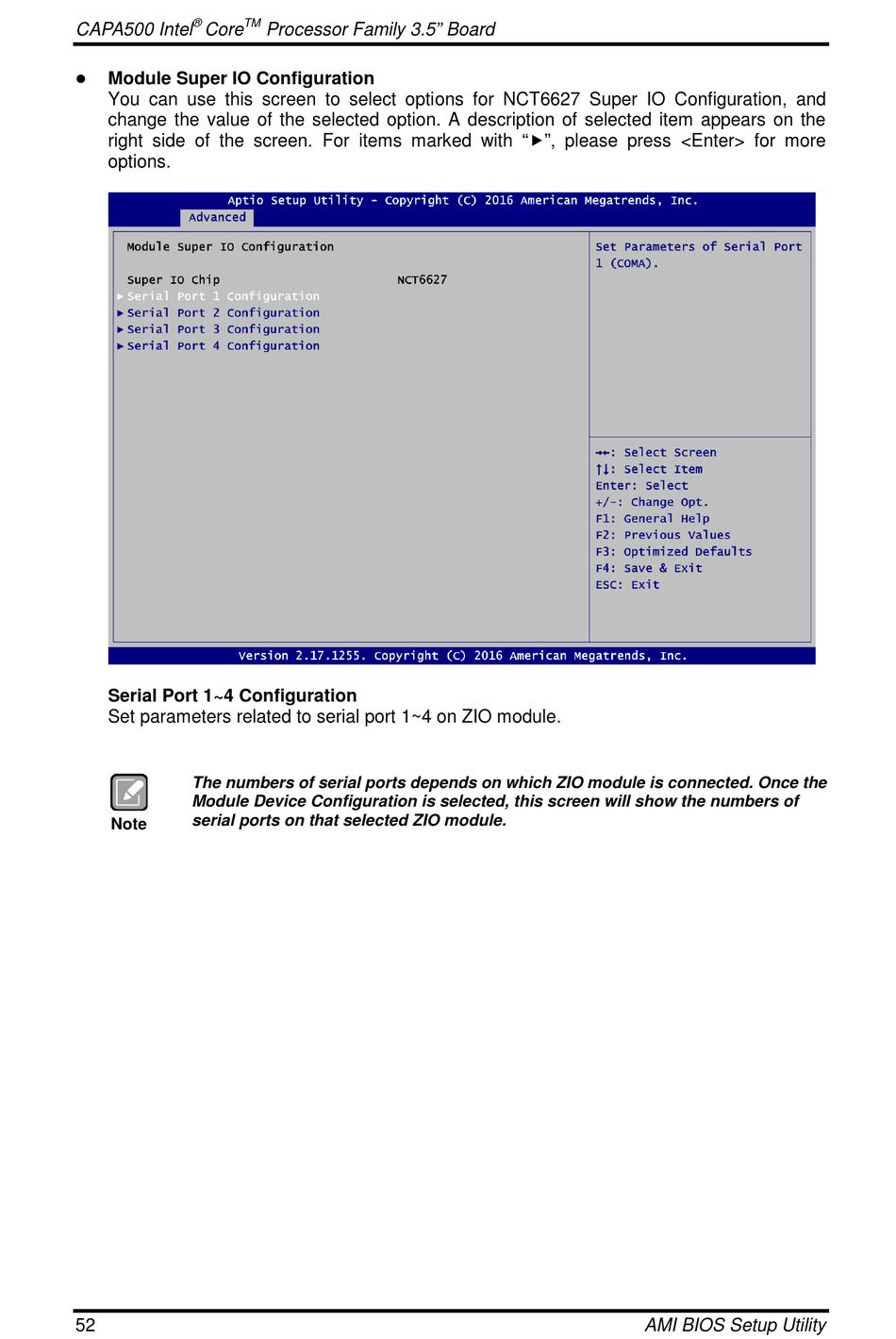

 Module Super IO Configuration
You can use this screen to select options for NCT6627 Super IO Configuration, and
change the value of the selected option. A description of selected item appears on the
right side of the screen. For items marked with "", please press <Enter> for more
options.
Serial Port 1~4 Configuration
Set parameters related to serial port 1~4 on ZIO module.
The numbers of serial ports depends on which ZIO module is connected. Once the
Module Device Configuration is selected, this screen will show the numbers of
serial ports on that selected ZIO module.
Note
52
Processor Family 3.5" Board
AMI BIOS Setup Utility
