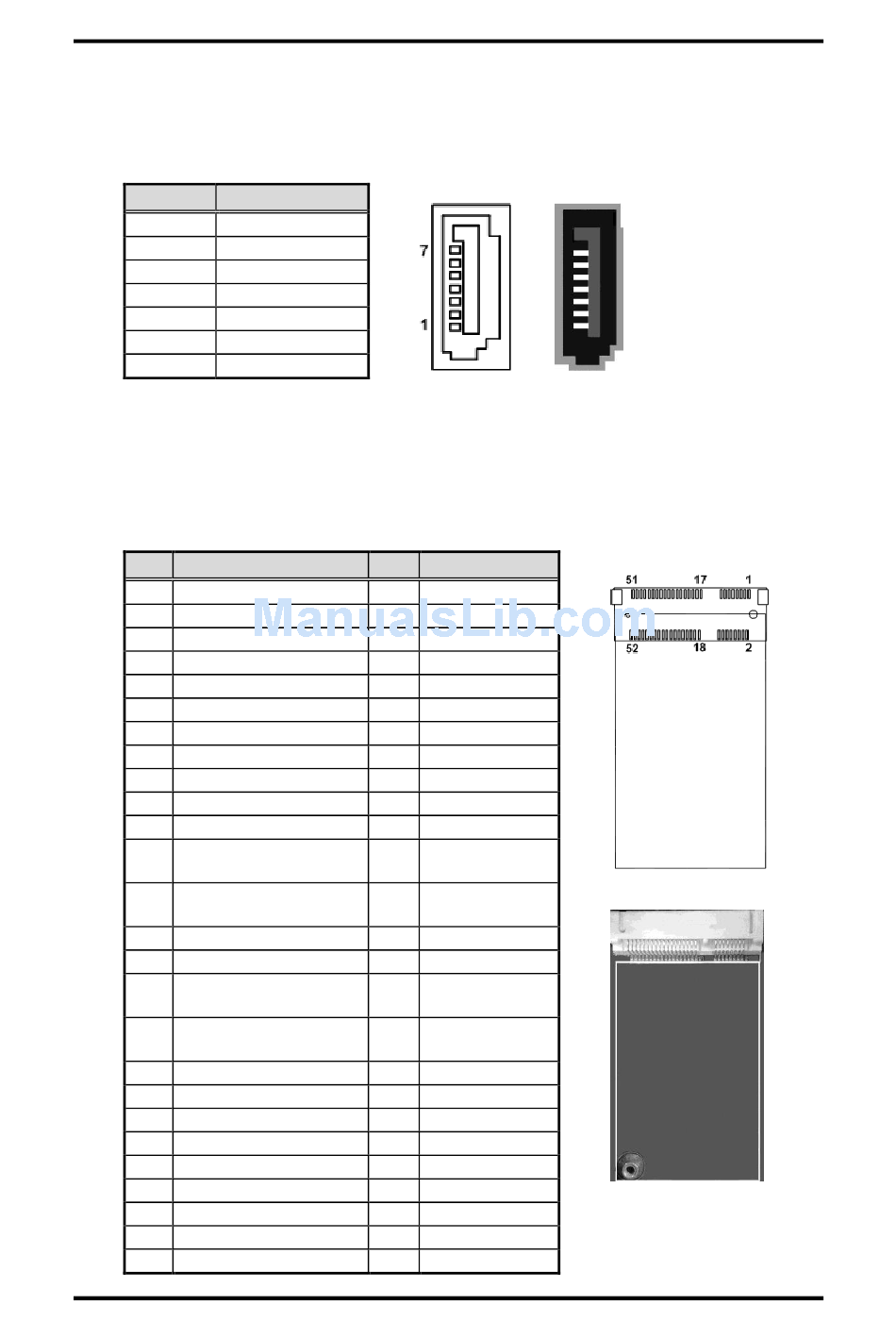

SATA Port (SATA1)

This Serial Advanced Technology Attachment (Serial ATA or SATA) connector is for high
speed SATA interface. It is a computer bus interface for connecting to devices such as
hard disk drive.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
2.5.20

Full-size PCI-Express Mini Card Connector (SCN1)

This is a full-size PCI-Express Mini Card connector on the bottom side complying with
PCI-Express Mini Card Spec. V1.2. It supports either PCI-Express, USB 2.0 or SATA
(mSATA). You can select PCI-Express or mSATA feature via BIOS setting in section 4.4.
Pin Signal
1 WAKE#
3 No use
5 No use
7 CLKREQ#
9 GND
11 REFCLK-
13 REFCLK+
15 GND
17 No use
19 No use
21 GND
PE_PCH_CARD_RN7/
23
SATA1_mSATA_RXP
PE_PCH_CARD_RP7/
25
SATA1_mSATA_RXN
27 GND
29 GND
PE_PCH_CARD_TN7/
31
SATA1_mSATA_TXN
PE_PCH_CARD_TP7/
33
SATA1_mSATA_TXP
35 GND
37 GND
39 +3.3VSB
41 +3.3VSB
43 GND
45 No use
47 No use
49 No use
51 No use
Board and Pin Assignments
®
CAPA500 Intel Core
Pin Signal
2 +3.3VSB
4 GND
6 +1.5V
8 No use
10 No use
12 No use
14 No use
16 No use
18 GND
20 W_DISABLE#
22 PERST#
24 +3.3VSB
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_D7-
38 USB_D7+
40 GND
42 No use
44 No use
46 No use
48 +1.5V
50 GND
52 +3.3VSB
TM
Processor Family 3.5" Board
21
