CAPA500 Intel Core Processor Family 3.5" Board

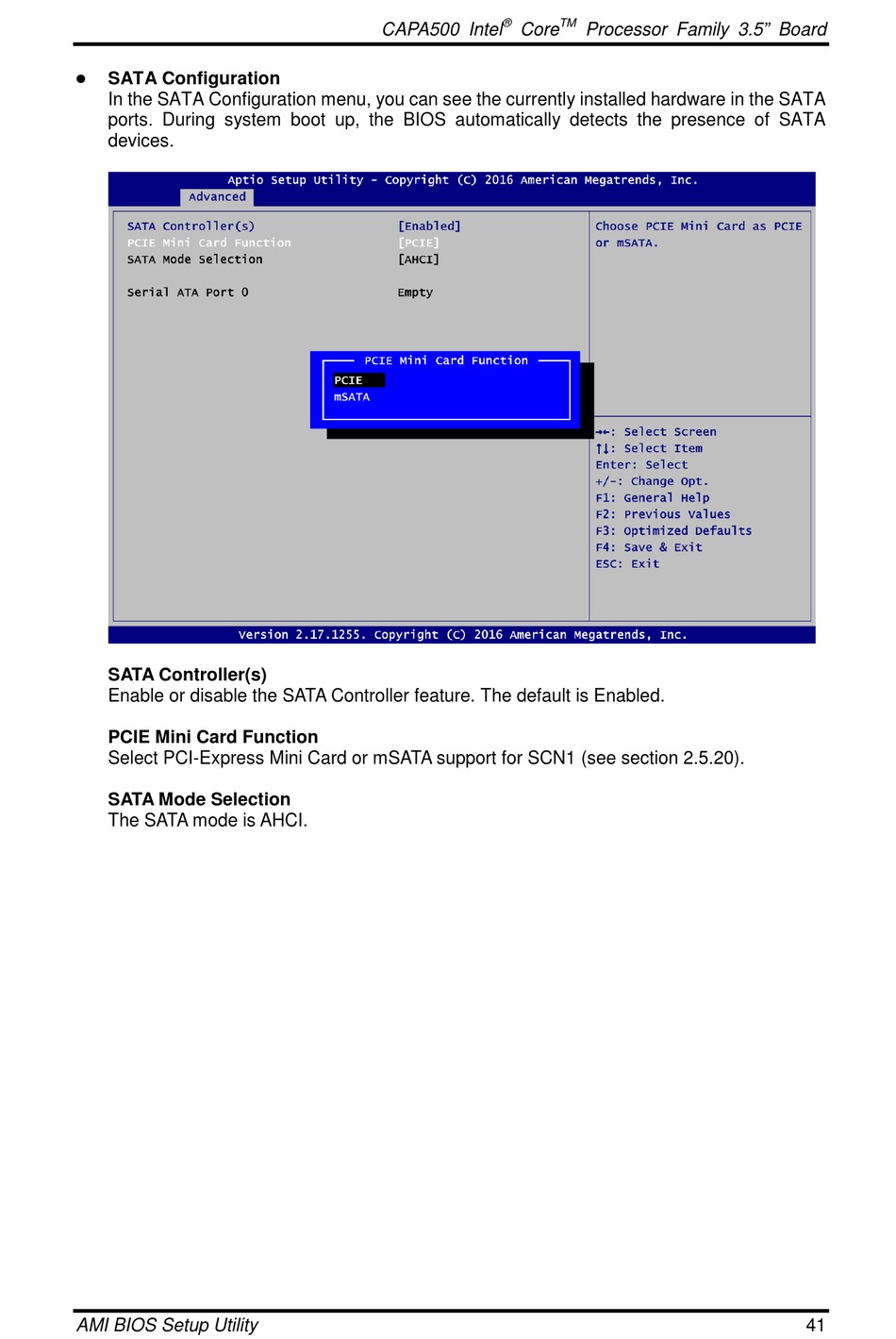

 SATA Configuration
In the SATA Configuration menu, you can see the currently installed hardware in the SATA
ports. During system boot up, the BIOS automatically detects the presence of SATA
devices.
SATA Controller(s)
Enable or disable the SATA Controller feature. The default is Enabled.
PCIE Mini Card Function
Select PCI-Express Mini Card or mSATA support for SCN1 (see section 2.5.20).
SATA Mode Selection
The SATA mode is AHCI.
AMI BIOS Setup Utility 41
