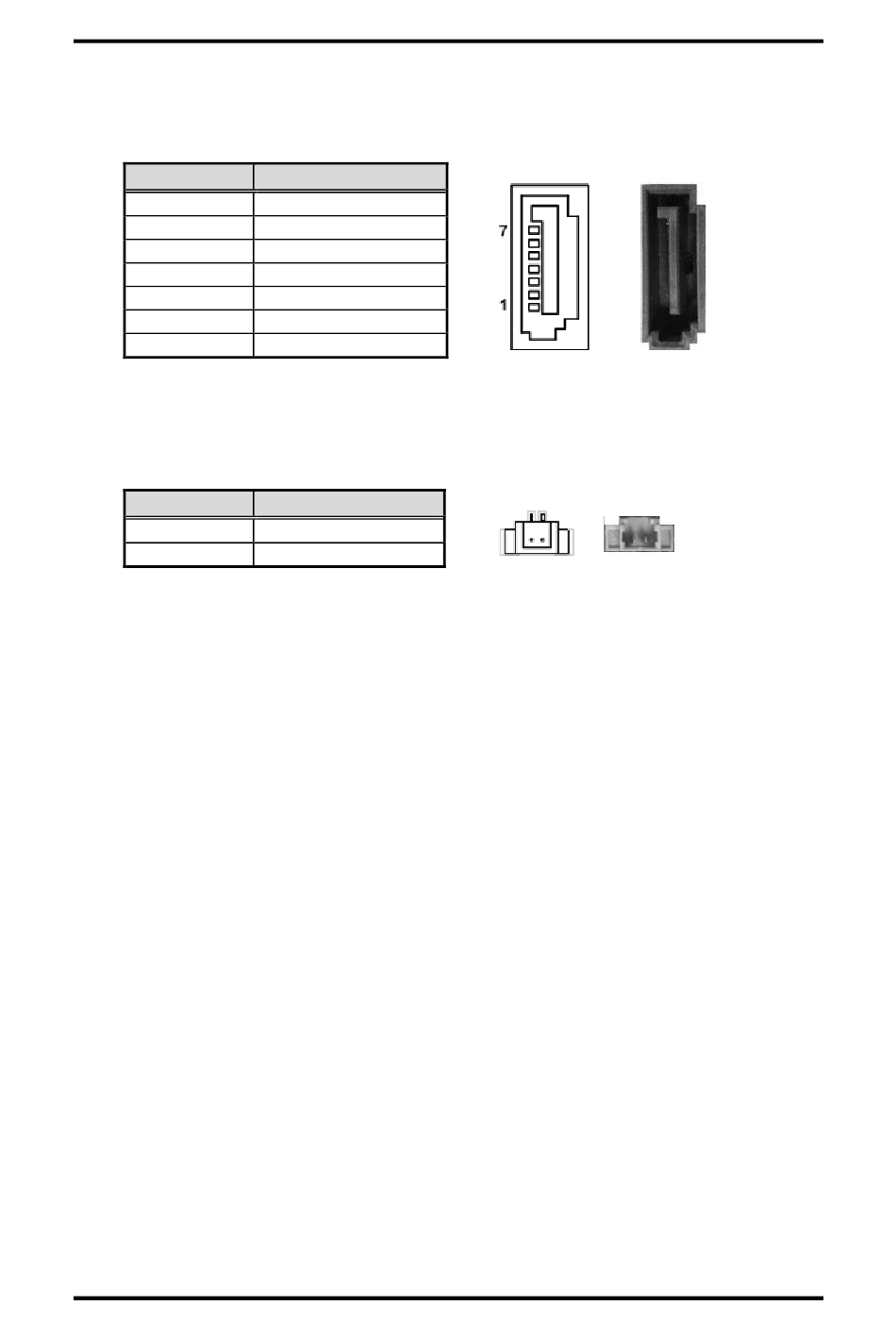

SATA Port (SATA1)

The Serial Advanced Technology Attachment (Serial ATA or SATA) connector is
computer bus interface for connecting to devices such as hard disk drive.
Pin
1
2
3
4
5
6
7
2.5.15

CMOS Battery Connector (BAT1)

This is a 2-pin (pitch=1.25mm) wafer connector for CMOS battery interface.
Pin
1
2
22
Signal
GND
SATA_TX+
SATA_TX-
GND
SATA_RX-
SATA_RX+
GND
Signal
BAT1(+3V level)
GND
1
Board and Pin Assignments
