UFQFPN28 package information

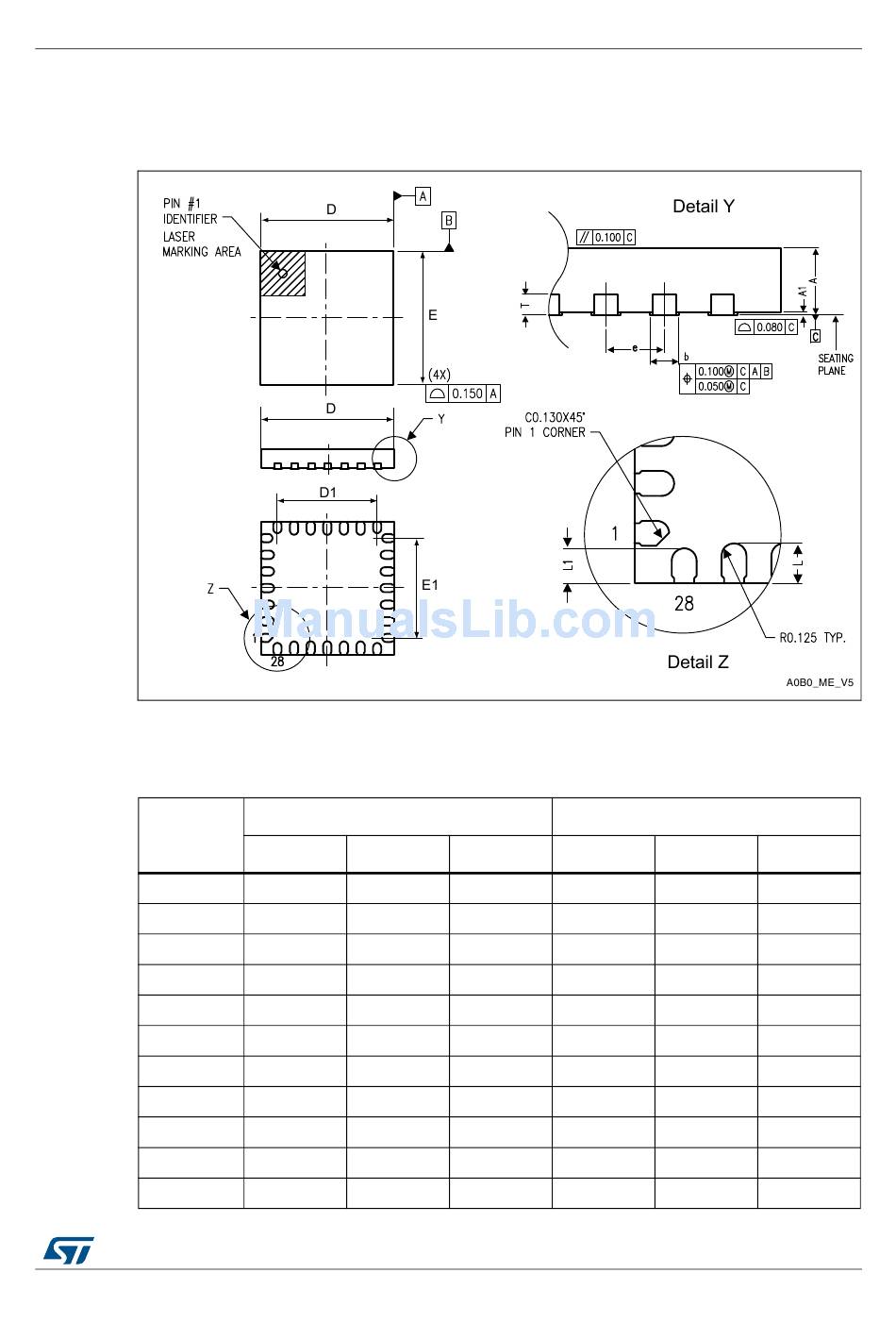

Figure 40. UFQFPN28 - 28-lead, 4x4 mm, 0.5 mm pitch, ultra thin fine pitch quad flat

1. Drawing is not to scale.

Table 64. UFQFPN28 - 28-lead, 4x4 mm, 0.5 mm pitch, ultra thin fine pitch quad flat

Symbol
A
A1
D
D1
E
E1
L
L1
T
b
e
