Electrical characteristics
6.1.6

Power supply scheme

Caution: Each power supply pair (V
capacitors as shown above. These capacitors must be placed as close as possible to, or
below, the appropriate pins on the underside of the PCB to ensure the good functionality of
the device.
38/113
微可Vicor——值得信赖的元器件供应商
http://www.vicor.top/

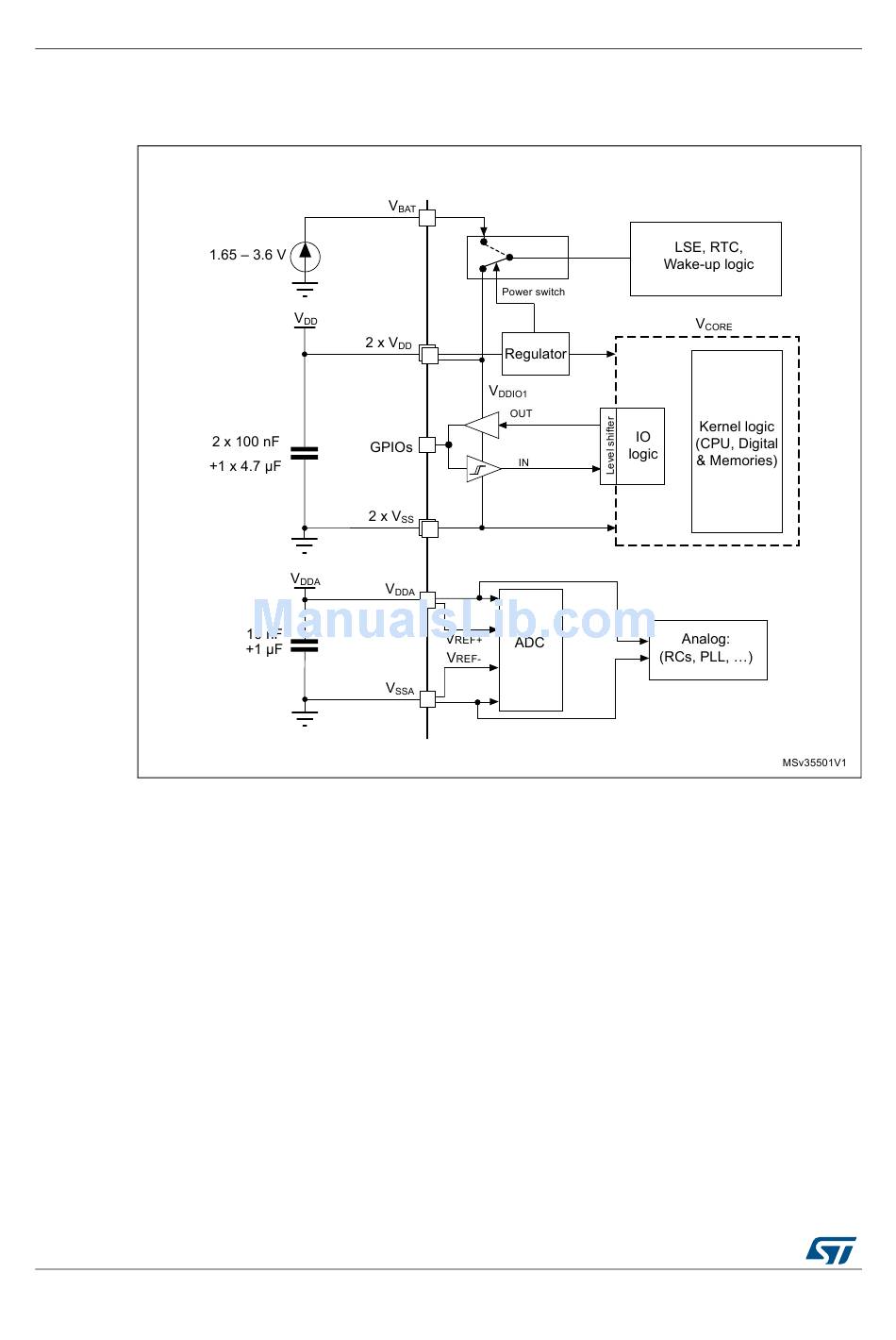

Figure 12. Power supply scheme

/V , V /V etc.) must be decoupled with filtering ceramic
DD SS DDA SSA
DocID025743 Rev 3
