Electrical characteristics
1. The reset network protects the device against parasitic resets.
2. The user must ensure that the level on the NRST pin can go below the V
Table 46. Otherwise the reset will not be taken into account by the device.
6.3.15

TIM timer characteristics

The parameters given in the
Refer to
characteristics (output compare, input capture, external clock, PWM output).
Symbol
t
res(TIM)
f
EXT
Res
TIM
t
COUNTER
t
MAX_COUNT
1. TIMx is used as a general term to refer to the TIM2, TIM3 and TIM4 timers.
90/135

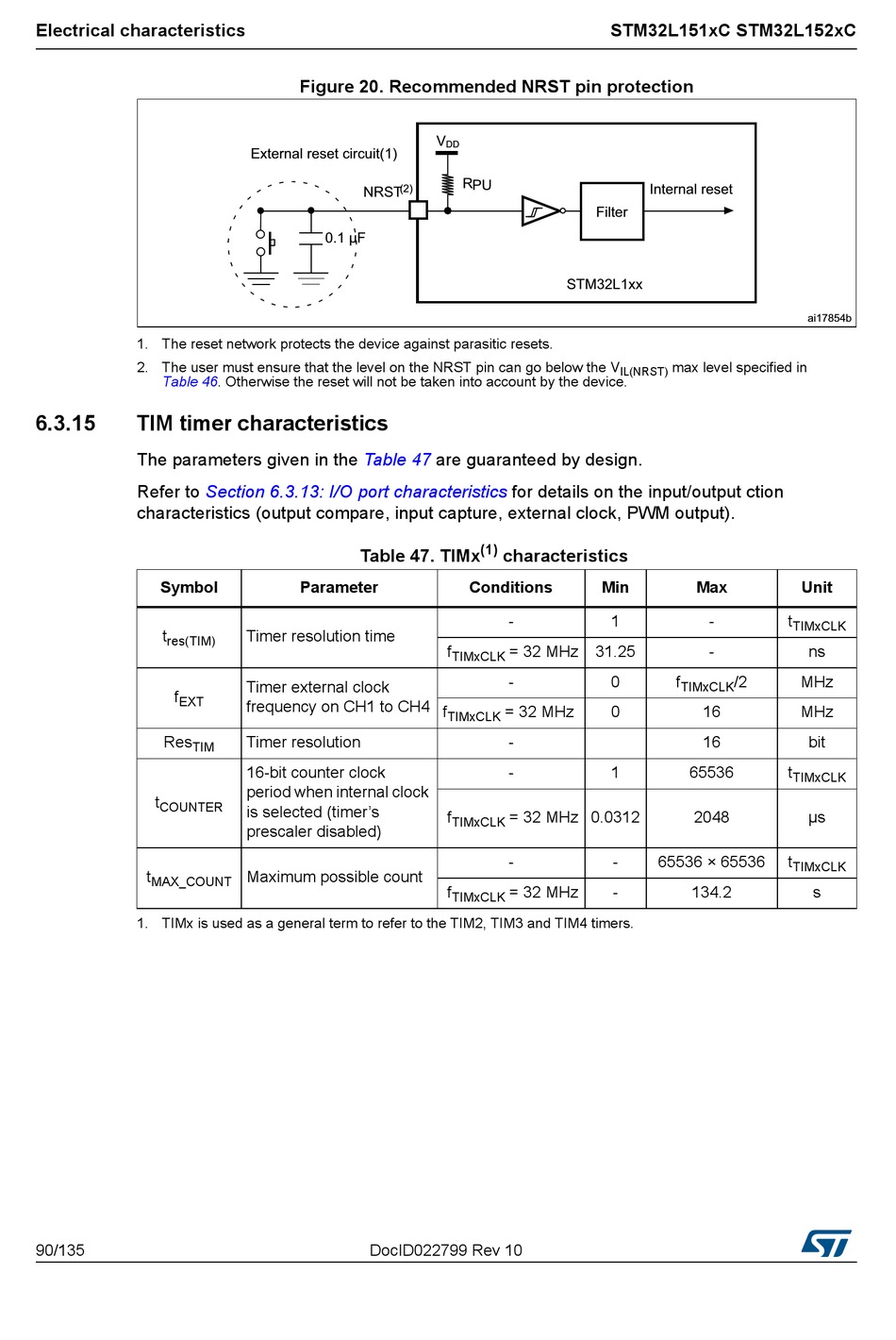

Figure 20. Recommended NRST pin protection

Table 47
Section 6.3.13: I/O port characteristics
Table 47. TIMx
Parameter
Timer resolution time
Timer external clock
frequency on CH1 to CH4
Timer resolution
16-bit counter clock
period when internal clock
is selected (timer's
prescaler disabled)
Maximum possible count
DocID022799 Rev 10
are guaranteed by design.
for details on the input/output ction
(1)
characteristics
Conditions Min
-
f = 32 MHz 31.25
TIMxCLK
-
f = 32 MHz
TIMxCLK
-
-
f = 32 MHz 0.0312
TIMxCLK
-
f = 32 MHz
TIMxCLK
STM32L151xC STM32L152xC
max level specified in
IL(NRST)
Max
1 -
-
0 f /2
TIMxCLK
0 16
16
1 65536
2048
- 65536 × 65536
- 134.2
Unit
t
TIMxCLK
ns
MHz
MHz
bit
t
TIMxCLK
µs
t
TIMxCLK
s
