STM32L151xC STM32L152xC

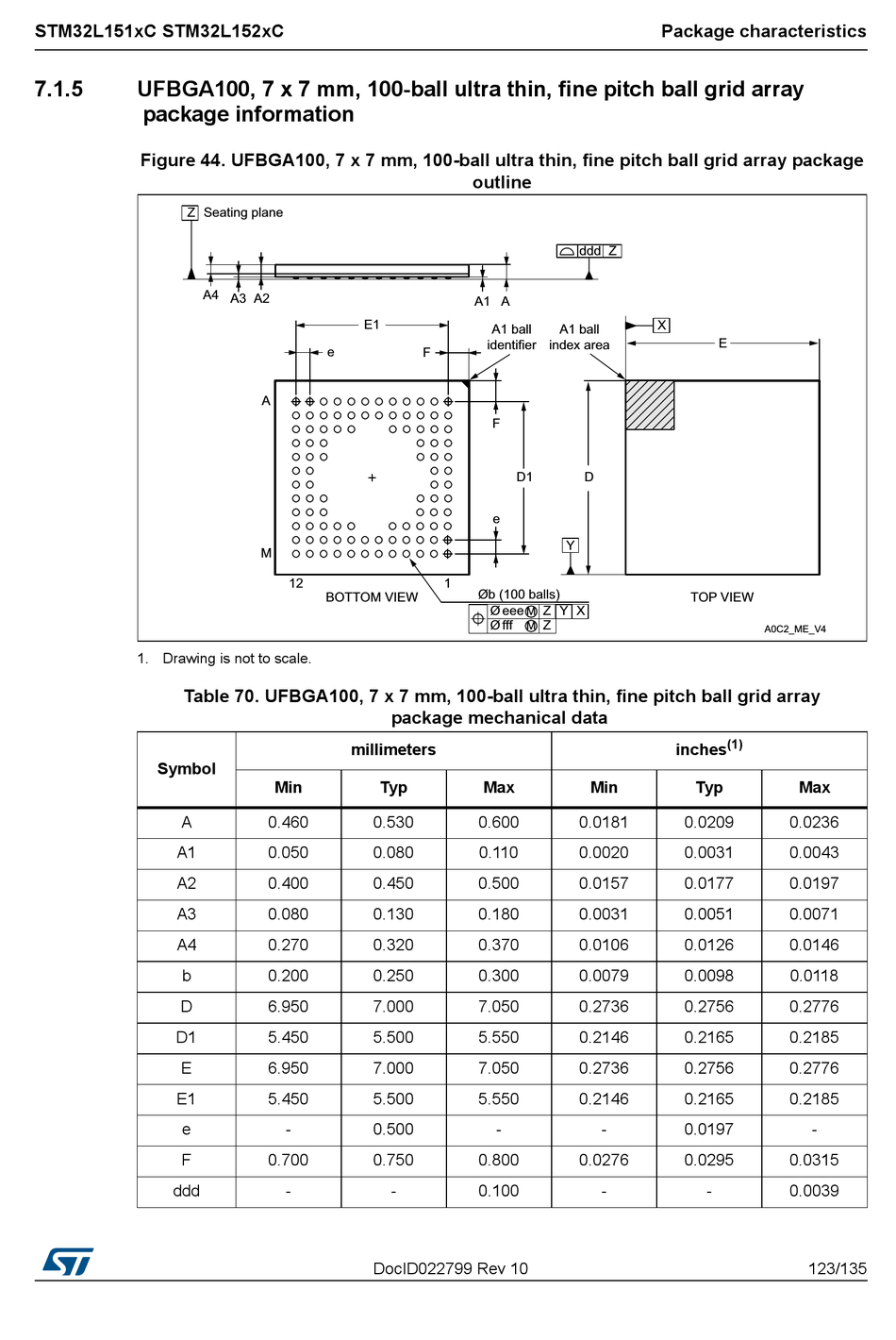

7.1.5 UFBGA100, 7 x 7 mm, 100-ball ultra thin, fine pitch ball grid array
package information

Figure 44. UFBGA100, 7 x 7 mm, 100-ball ultra thin, fine pitch ball grid array package

1. Drawing is not to scale.

Table 70. UFBGA100, 7 x 7 mm, 100-ball ultra thin, fine pitch ball grid array

Symbol
A
A1
A2
A3
A4
b
D
D1
E
E1
e
F
ddd

package mechanical data

millimeters
Min Typ
0.460 0.530
0.050 0.080
0.400 0.450
0.080 0.130
0.270 0.320
0.200 0.250
6.950 7.000
5.450 5.500
6.950 7.000
5.450 5.500
- 0.500
0.700 0.750
- -
DocID022799 Rev 10

outline

Max Min
0.600 0.0181
0.110 0.0020
0.500 0.0157
0.180 0.0031
0.370 0.0106
0.300 0.0079
7.050 0.2736
5.550 0.2146
7.050 0.2736
5.550 0.2146
- -
0.800 0.0276
0.100 -
Package characteristics
(1)
inches
Typ Max
0.0209 0.0236
0.0031 0.0043
0.0177 0.0197
0.0051 0.0071
0.0126 0.0146
0.0098 0.0118
0.2756 0.2776
0.2165 0.2185
0.2756 0.2776
0.2165 0.2185
0.0197 -
0.0295 0.0315
- 0.0039
123/135
