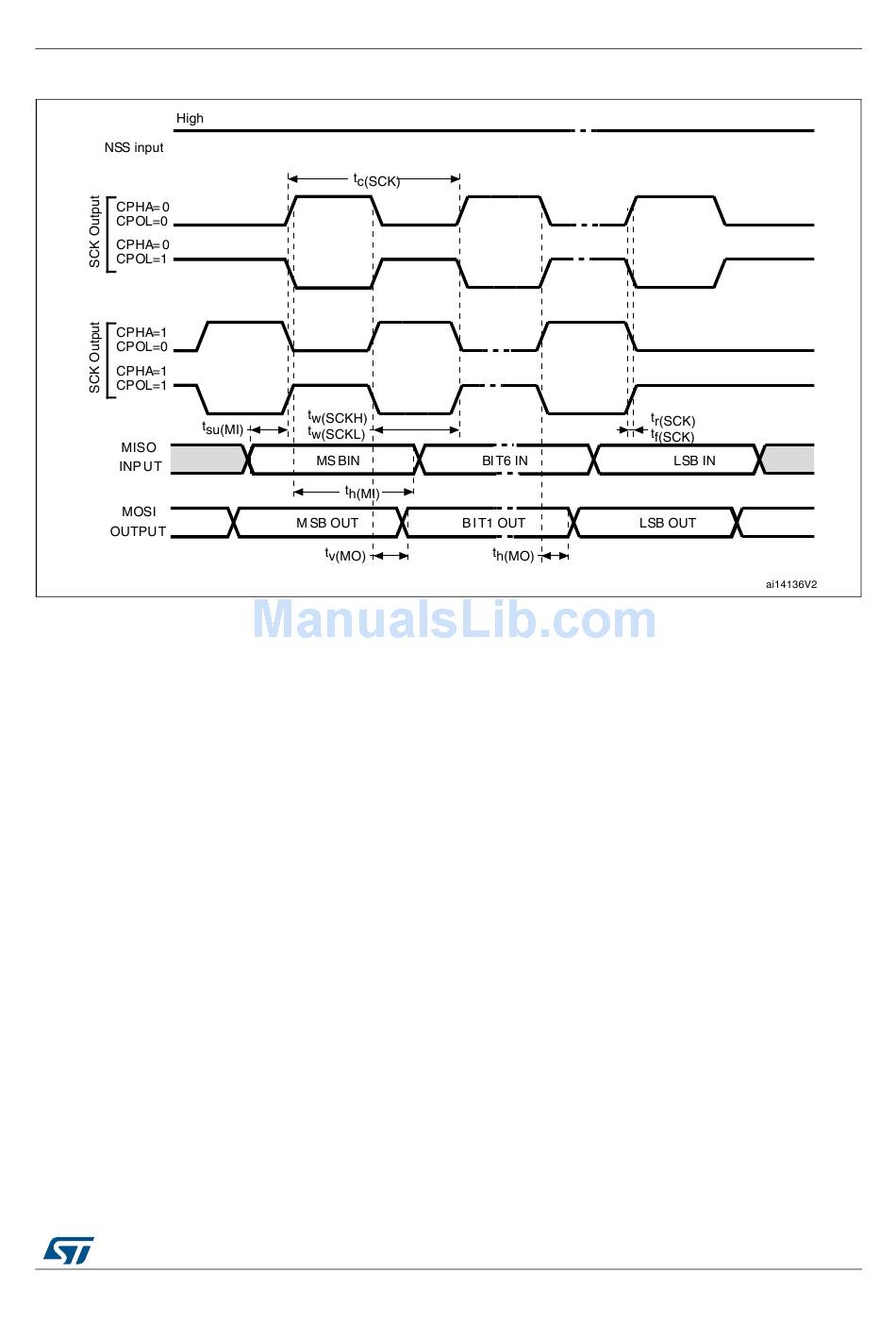

Figure 24. SPI timing diagram - master mode

1. Measurement points are done at CMOS levels: 0.3V

and 0.7V

DD.
