Battery Power Bar Settings

◆
VOL represents voltage settings. Each bar represents a voltage value. 5 bars voltage
values must be entered one by one. For example, VOL 1 is first bar voltage value. The
default value is 31.5V.
To set battery power bar, press the "+" or the "-" button to increase or decrease the
number. To store a changed setting and access the second bar, press the "i" button.
By analogy, after 5 bars voltage values is entered , hold the "i" button to confirm and
then return to the previous menu.

Assistance Level Settings (optional)

◆

Assistance Level Option

In assistance level settings, there are 8 modes to select：0-3, 1-3, 0-5, 1-5, 0-7, 1-7, 0-
9, 1-9. The default value is 0-5.
In assistance-level settings, there are 8 modes to select：0-3, 1-3, 0-5,
1-5, 0-7, 1-7, 0-9, 1-9. The default value is 0-5.
To change the mode of assistance-level, press the "+" or the "-" button to choose the
desired mode, and then press the "i" button to confirm, then access the PAS ratio settings
page automatically.

PAS Ratio Settings

To modify the value of PAS ratio, press the "+" button or "-" button to choose the
desired value, and then press the "i" button to confirm
For example, the range is "45-55 percent" of "1" level, bottom value can be modified,
and the default value is 50 percent.
To store the modified setting, press the "i" button and turn to the next PAS ratio settings.
After all PAS ratio inputted, hold the "i" button for 2 s to confirm and then return to
previous menu. Please refer to Attached list 2.
Battery Power Bar Settings

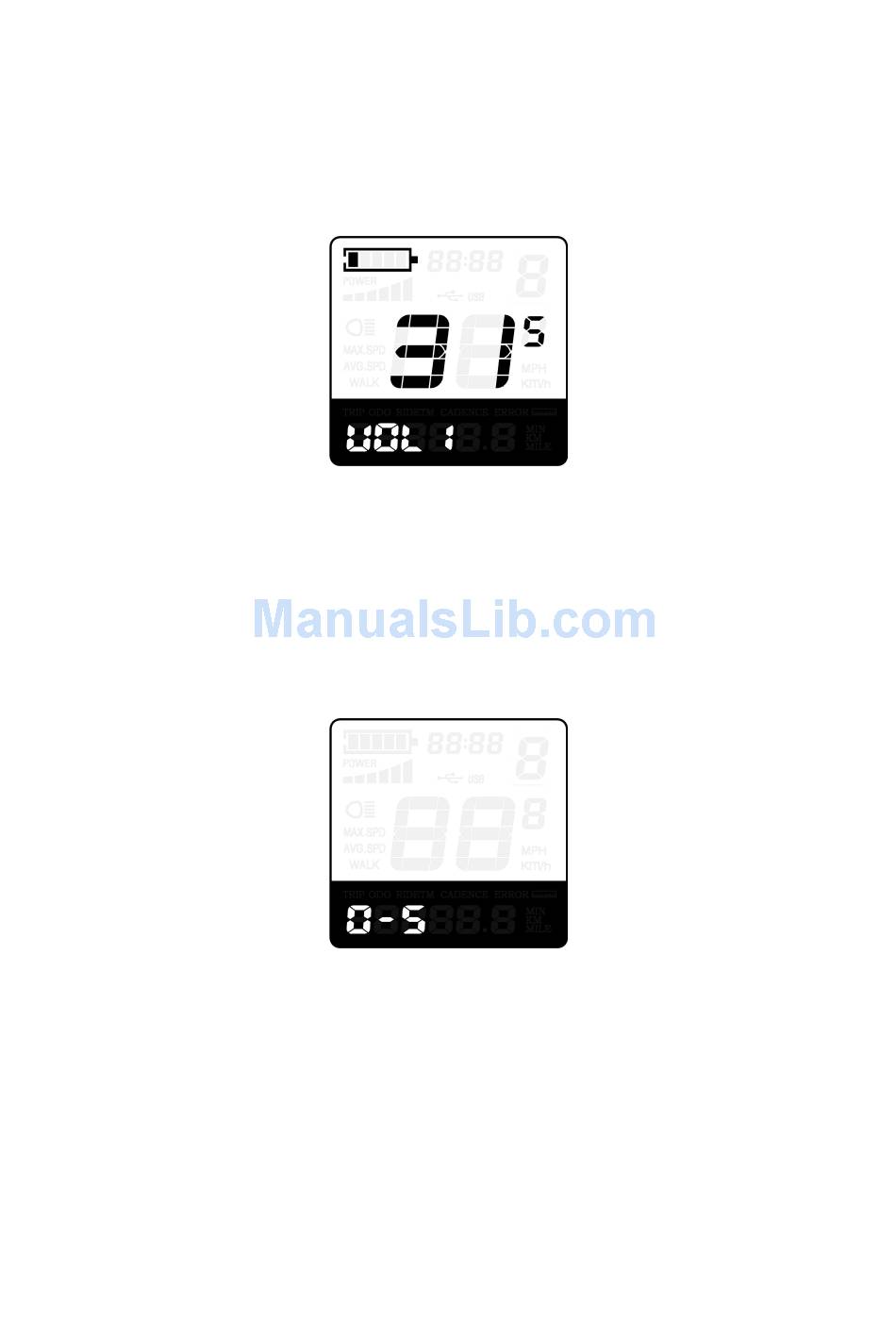

PAS Mode Option Interface
