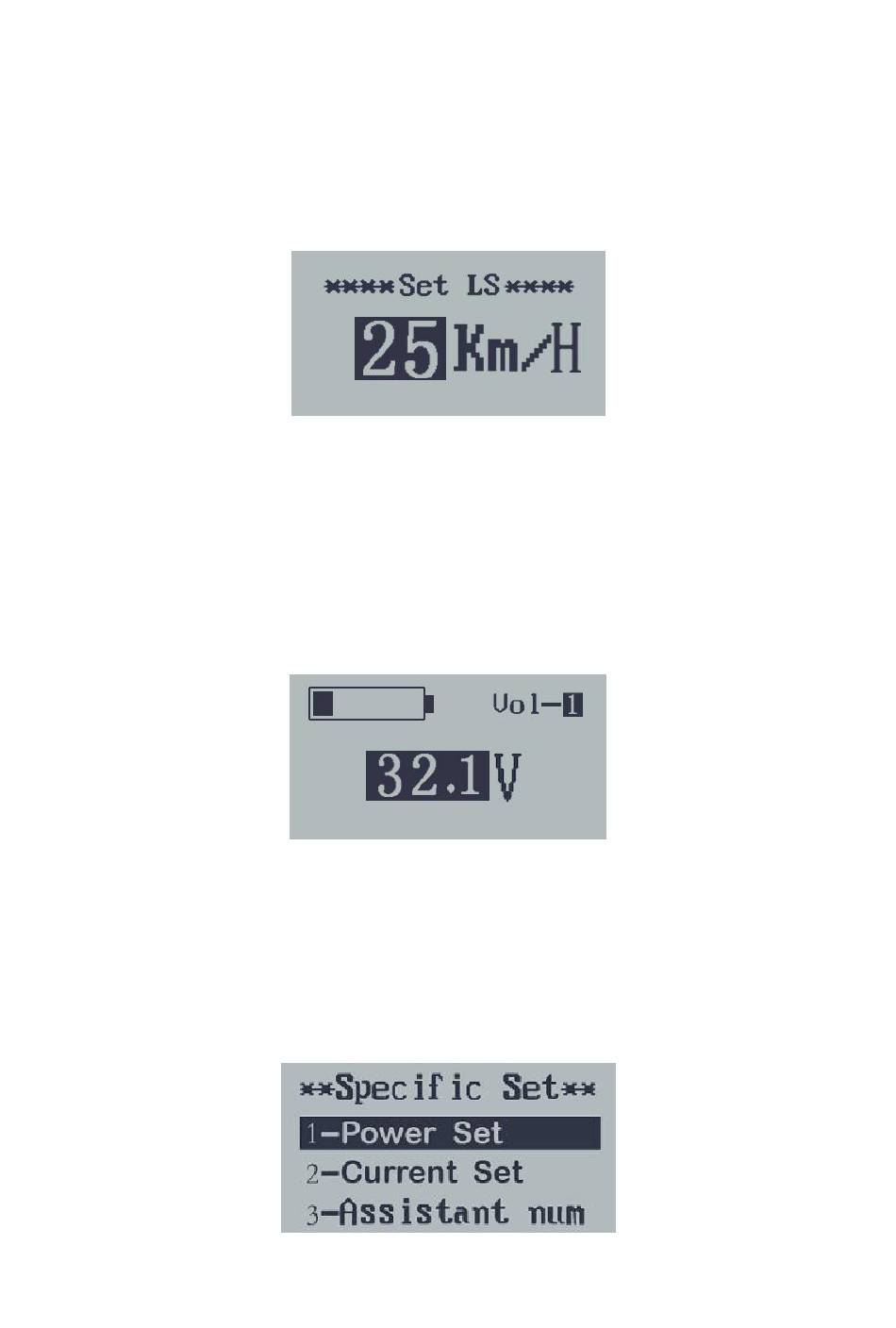

◆Speed limit Settings
Set LS represents speed limit settings. When current speed is faster than speed
limit, the E-bike system will be switched off automatically. Limited speed range is
12Km/h to 40Km/h. The default value is 25Km/h.
To change basic settings, press UP/DOWN to increase or decrease until the
desired value is displayed.
To store a changed setting, press ON/OFF button and the screen says 'OK' then
returns to G eneral settings interface .
◆Battery Power bar Settings
Set Voltage represents voltage settings. Each bar represents a voltage value. 5 bar-
voltage values must be entered one by one.
For example, Vol-1 is the first bar voltage and the default value is 31.5V. Press
UP/DOWN to increase or decrease the voltage value.
To store a changed setting, press the ON/OFF button and access the second bar
setting.
After 5 bar-voltage values are entered, press ON/OFF button to confirm. T
screen says 'OK' and then returns to G eneral settings interface .
Personalized Parameter Settings(Specific Set)
Personalized
Parameter
requirements.
Hold both UP and DOWN button for 2s to enter General Settings and hold the UP
and DOWN button for 2s again to enter Personalized Parameter Settings selection
interface. Press the UP or DOWN button to choose the settings items, then press the
ON/OFF button to enter the corresponding settings interface.
Speed Limit Settings Interface
Battery Power Bar Settings
Settings(Specific
6
can
meet
various
Set)
he
riders'
