Summary of Contents for Key-Disp KD26E
- Page 2 Contents Product name and model......................1 Specifications..........................1 Appearance and Size ......................1 Function Summary and Button Definition ................2 ◆Function Summary......................2 ◆Button Definition......................2 General Operation ........................2 ◆Switching the eBike System On/Off................2 ◆Switching the Lighting On/Off..................2 ◆Switching Push-assistance mode On/Off..............3 ◆PAS Level Selection.......................
-
Page 3: Specifications

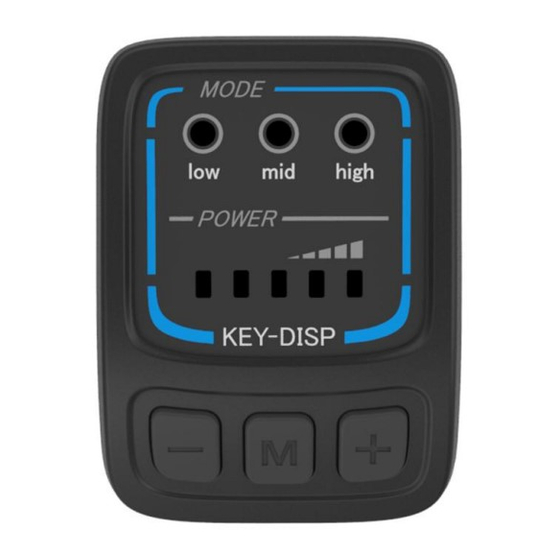

Product name and model Electric bicycle intelligent LED instrument, model: KD26E. Specifications ● 24V/36V/48V Power Supply ● Rated working current: 10mA ● The maximum working current: 30mA ● Off leakage current: <1uA ● The supply controller working current: 50mA ●... - Page 4 Function Summary and Button Definition ◆Function Summary KD26E can provide a lot of functions to fit the users’ need. The indicating contents are as following: ● Smart battery indicator ● Assistance-level indicator ● The push-assistance function ● The Lighting On/Off (optional）...
- Page 5 ◆Switching Push-assistance mode On/Off To access the push-assistance mode, hold the DOWN button always, the eBike will go on at a uniform speed of 6 Km/h. Three power-assistance level indicator lights flash at the same time. The push-assistance function switches off as soon as you release the DOWN button.
- Page 6 Display-side connector Display-side adapter Switch wiring Line sequence table Line sequence Color Function Red （VCC） Blue(K) Lock Black(GND) Green(RX) Yellow(TX) ■ Some wire use the water-proof connector, users are not able to see the inside color.
