Service instruction

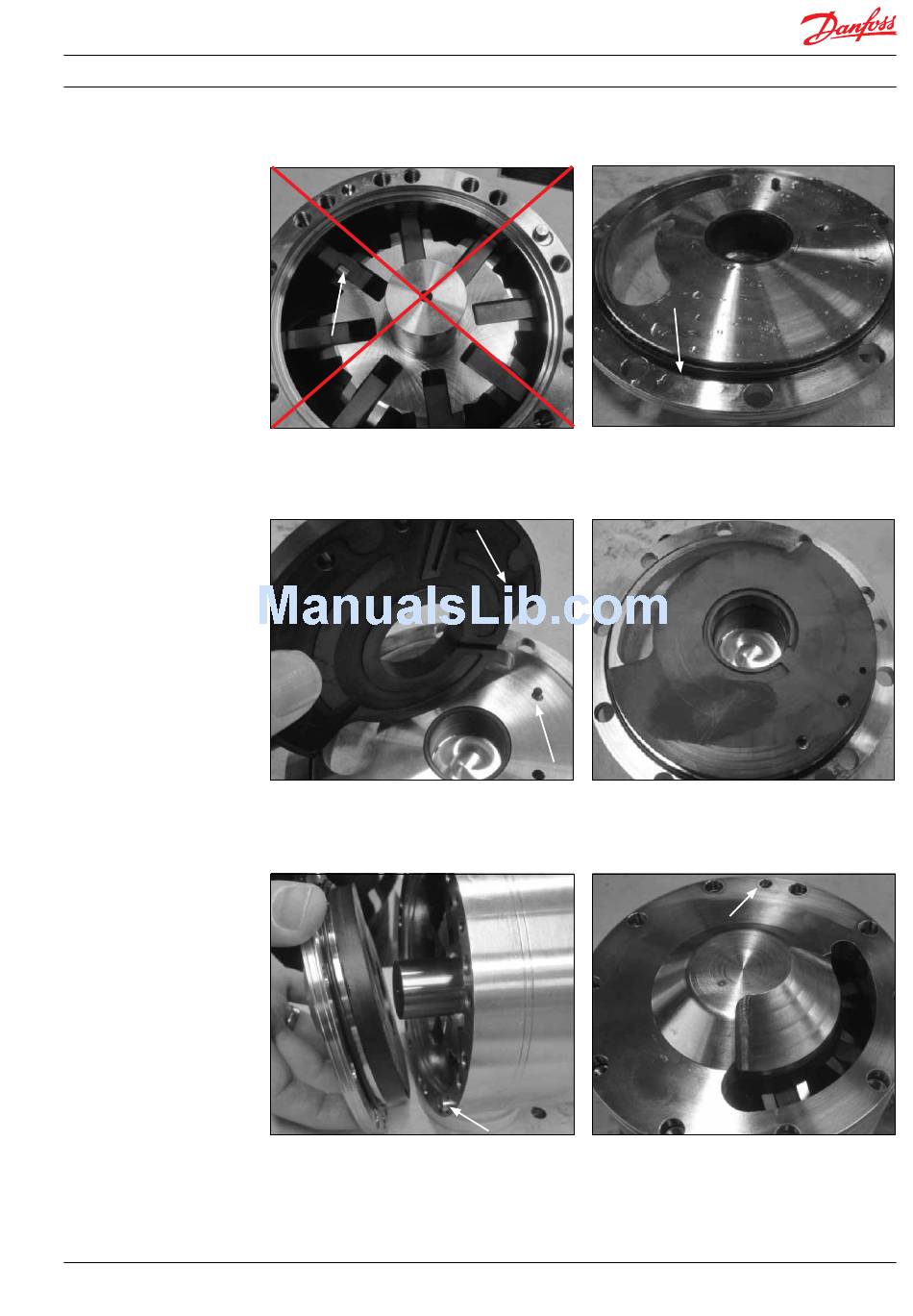

Disassembling and assembling iSave 21
One vane is NOT positioned correctly.
8.
10.
Position the side plate over the guide pin.
12.
Fit the flange into both the bearing in the
flange and the location pin in the stator.
180R9219 / 521B1171 / DKCFN.PI.003.K3.02 / 11.2013
9.
Replace the O-ring on the flange and wet
the flange properly with clean filtered water.
11.
Make sure that the guide pin is located in the
locating hole in the side plate. See #10.
13.
Make sure that the guide pin is located in
the location hole.
