Service instruction

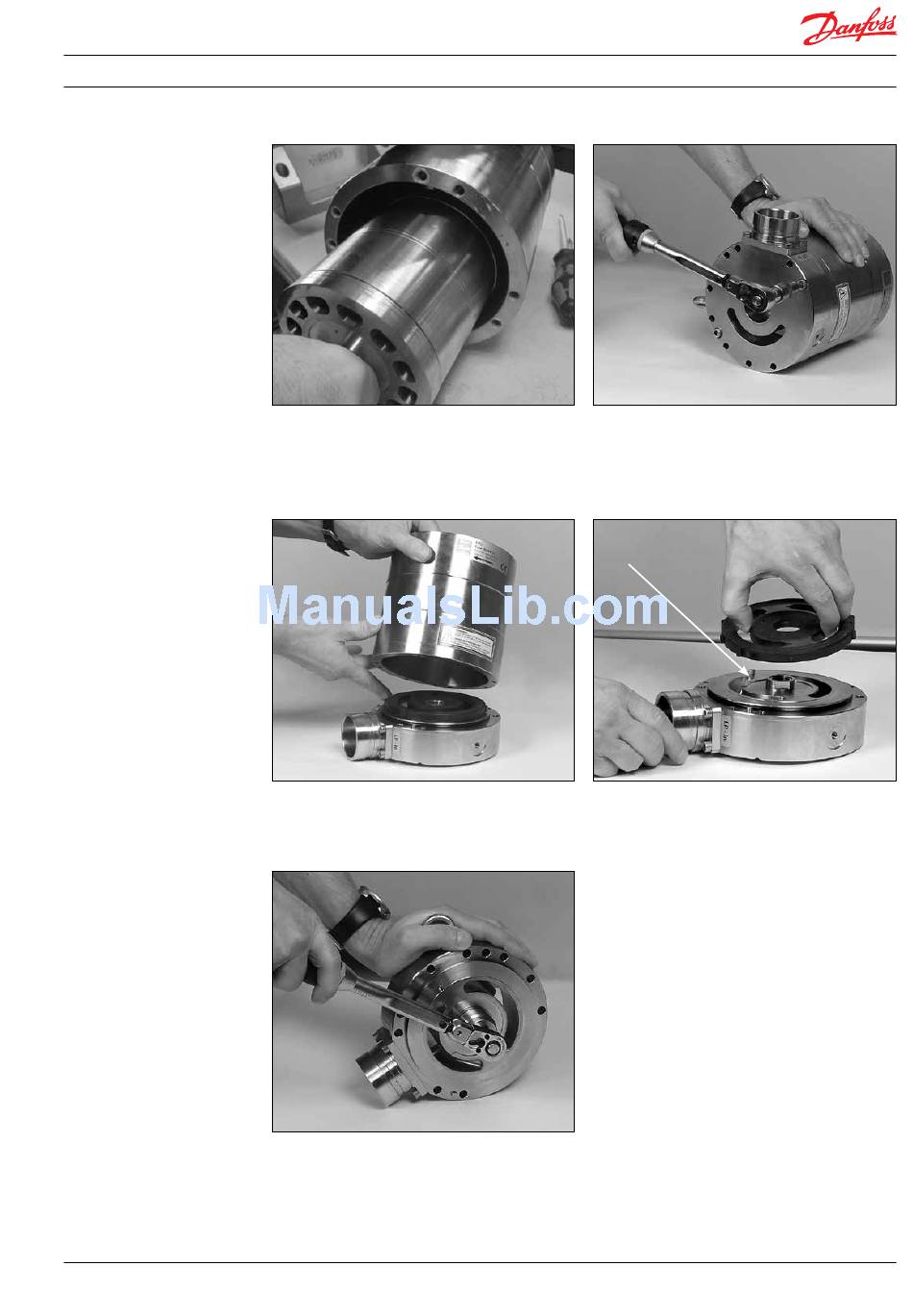

Disassembling and assembling iSave 21
7.
Gently remove the cylinder barrel.
9.
Gently remove the housing.
Note: Loose parts on the inside of the flange .
11.
Unscrew high-pressure bearing using a
special socket.
180R9219 / 521B1171 / DKCFN.PI.003.K3.02 / 11.2013
8.
Unscrew the bolts in the flange.
10.
Remove port plate and pin.
Pin
5
