Danfoss Series 90 Technical Information

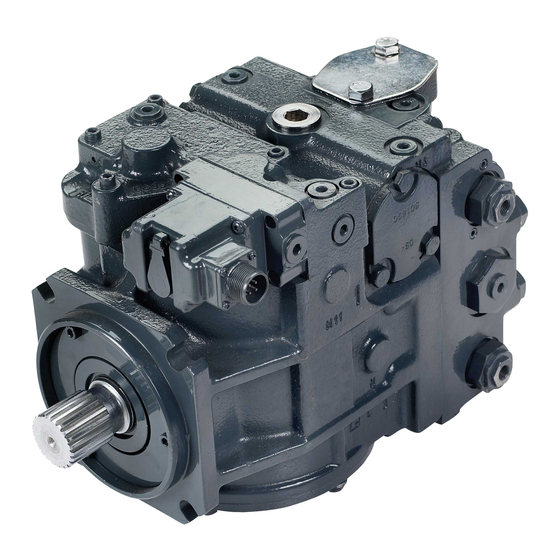

Axial piston pumps
Hide thumbs Also See for Series 90:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
MAKING MODERN LIVING POSSIBLE
Technical Information
Series 90
Axial Piston Pumps
powersolutions.danfoss.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Series 90 and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss Series 90

Summary of Contents for Danfoss Series 90

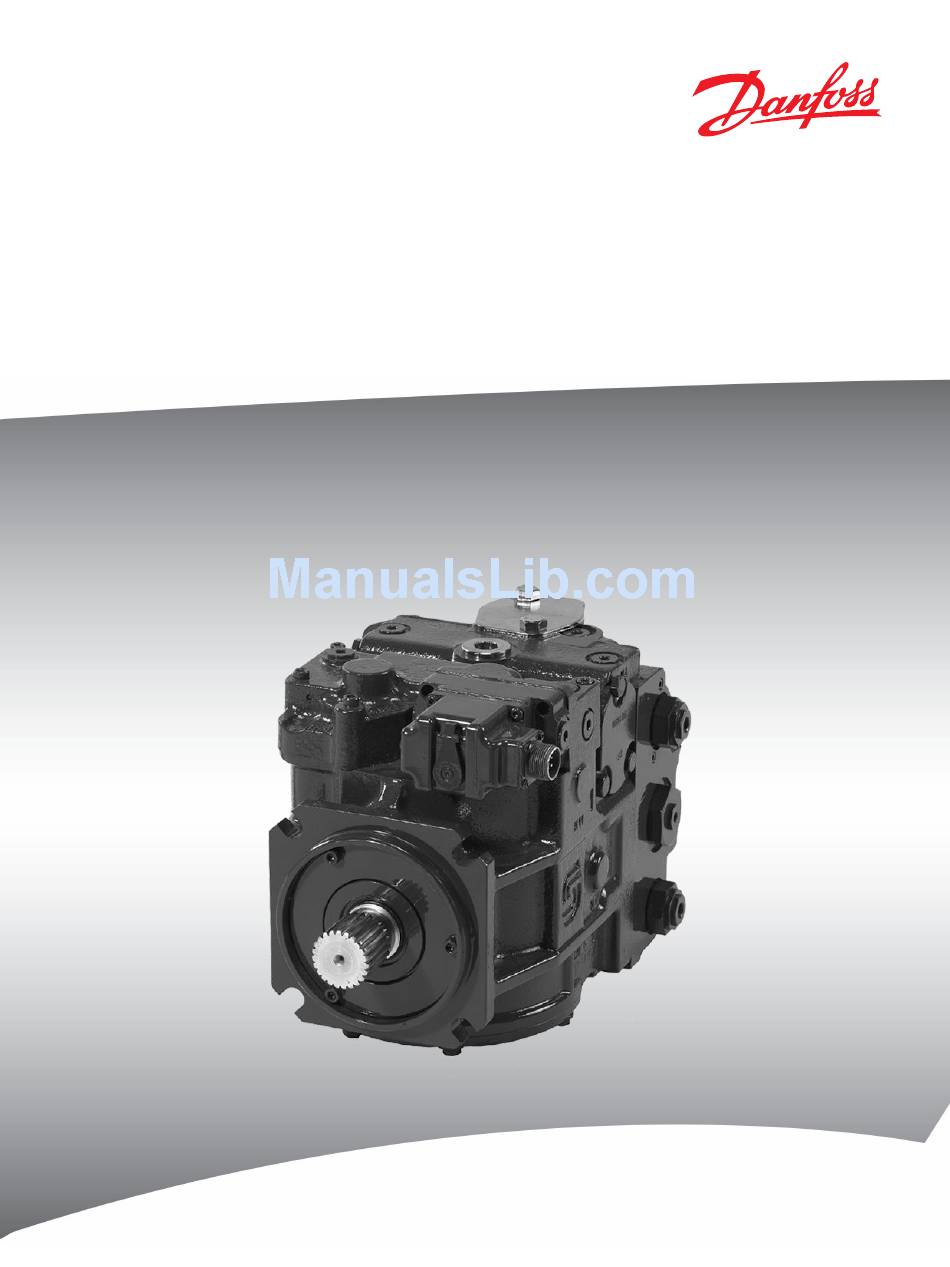

  • Page 1 MAKING MODERN LIVING POSSIBLE Technical Information Series 90 Axial Piston Pumps powersolutions.danfoss.com...
  • Page 2 Technical Information Series 90 Axial Piston Pumps Revision history Table of revisions Date Changed March 2016 Minor edit 0804 January 2015 correction to O-ring sizing - page 77 May 2014 corrections to pin assignments - page 48 February 2014 Danfoss Layout...

  • Page 3: Table Of Contents

    Technical Information Series 90 Axial Piston Pumps Contents General Description Series 90 Family of Pumps and Motors.............................5 PLUS+1 Compliant Controls and Sensors..........................5 Design........................................6 Pictorial Circuit Diagram................................6 System schematic.....................................7 Technical Specifications General Specifications..................................8 Features and Options..................................8 Operating Parameters..................................9 Fluid Specifications..................................9 Operating Parameters Overview......................................
  • Page 4 Pump output flow direction vs. control handle rotation................... 36 MDC with Neutral Start Switch (NSS)............................37 Non Feedback Proportional Electric Control (NFPE) ......................37 Control response..................................37 NFPE control used with a Danfoss microcontroller......................38 Input signal requirements..............................39 Features and Options Multi-Function Valves...................................40 Overpressure protection................................40...

  • Page 5: General Description

    General Description Series 90 Family of Pumps and Motors Series 90 hydrostatic pumps and motors can be applied together or combined with other products in a system to transfer and control hydraulic power. They are intended for closed circuit applications.

  • Page 6: Design

    Made in USA P108494E Place of Manufacture Series 90 pumps are also manufactured in Europe and China. Place of manufacture shown on nameplate will correspond with the actual place of manufacture. Pictorial Circuit Diagram This configuration shows a hydrostatic transmission using a Series 90 axial piston variable displacement pump and a Series 90 fixed displacement motor.

  • Page 7: System Schematic

    Technical Information Series 90 Axial Piston Pumps General Description Control ha ndle Displacem ent control valve Heat excha nger bypass valv e Reservoi r Orificed c heck Vacuum gauge valve Heat excha nger Purge reli e f valve P102 000...

  • Page 8: Technical Specifications

    Recommended mounting for a multiple pump stack is to arrange the highest power flow towards the input source. Consult Danfoss for nonconformance to these guidelines. Auxiliary cavity pressure Will be inlet pressure with internal charge pump. For reference see Operating Parameters.

  • Page 9: Operating Parameters

    Technical Information Series 90 Axial Piston Pumps Technical Specifications Operating Parameters Parameter Unit Frame Input speed Minimum min-1(rpm) Rated Speed 4200 3900 3600 3300 3100 2600 2300 Maximum 4600 4250 3950 3650 3400 2850 2500 Operating parameters System pressure Maximum working pressure...

  • Page 10: Overview

    Series 90 Axial Piston Pumps Operating Parameters Overview This section defines the operating parameters and limitations for Series 90 pumps with regard to input speeds and pressures. For actual parameters, refer to the Operating parameters for each displacement. Input Speed Minimum speed is the lowest input speed recommended during engine idle condition.

  • Page 11: Servo Pressure

    Technical Information Series 90 Axial Piston Pumps Operating Parameters Minimum low loop pressure must be maintained under all operating conditions to avoid cavitation. All pressure limits are differential pressures referenced to low loop (charge) pressure. Subtract low loop pressure from gauge readings to compute the differential.

  • Page 12: External Shaft Seal Pressure

    The minimum temperature relates to the physical properties of component materials. Size heat exchangers to keep the fluid within these limits. Danfoss recommends testing to verify that these temperature limits are not exceeded. Viscosity For maximum efficiency and bearing life, ensure the fluid viscosity remains in the recommended range.

  • Page 13: System Design Parameters

    Technical Information Series 90 Axial Piston Pumps System Design Parameters Filtration System To prevent premature wear, ensure only clean fluid enters the hydrostatic transmission circuit. A filter capable of controlling the fluid cleanliness to ISO 4406 class 22/18/13 (SAE J1165) or better, under normal operating conditions, is recommended.

  • Page 14: Charge Pressure Filtration (Partial Charge Pump Flow)

    Charge pressure filtration (partial charge pump flow) Two types of pressure filtration exist for most Series 90 pumps. The two types are: remote pressure filtration (filter remotely mounted on vehicle) and integral pressure filtration (filter mounted to the endcap).

  • Page 15: Fluid Selection

    Technical Information Series 90 Axial Piston Pumps System Design Parameters Charge pressure filtration Screen Hydraulic fluid reservoi r Adjustable charge pressure relief valve Charge pump Filter To pump case To low pressure side and P102 004E control Warning Remote filter heads without bypass and poor plumbing design can encounter excessive pressure drops that can lead to charge pump damage in addition to contaminants being forced through the filter media and into the transmission loop.

  • Page 16: Pump Life

    Danfoss representative. Charge Pump Charge flow is required on all Series 90 pumps applied in closed circuit installations. The charge pump provides flow to make up internal leakage, maintain a positive pressure in the main circuit, provide flow for cooling and filtration, replace any leakage losses from external valving or auxiliary systems, and to provide flow and pressure for the control system.

  • Page 17: Applications With External Shaft Loads

    * no tapered shaft available If continuous applied external radial loads are 25% of the maximum allowable or more or thrust loads/ bending moments known to occur, contact your Danfoss representative for an evolution of bearing life. Avoid external thrust loads in either direction.

  • Page 18: Sizing Equations

    Technical Information Series 90 Axial Piston Pumps System Design Parameters • Use flexible hoses. • Limit system line length. • If possible, optimize system line position to minimize noise. • If you must use steel plumbing, clamp the lines. •...
  • Page 19 Technical Information Series 90 Axial Piston Pumps System Design Parameters Overhung load example Second stage First stage Third stage P108 511E Estimated maximum and rated acceleration factors for some typical applications are shown in the table below. Estimating overhung load moments...
  • Page 20 Technical Information Series 90 Axial Piston Pumps System Design Parameters Allowable overhung load moment values are shown in the following table. Allowable overhung load moments Frame size Rated moment (MR) Shock load moment (MS) N•m lbf•in N•m lbf•in 7600 3020...

  • Page 21: Master Model Code

    Technical Information Series 90 Axial Piston Pumps Master Model Code Series 90 Master Model Code Size Series 90 Master Model Code Type and Rotation Right Hand [CW] Left Hand [CCW] Size 42 cc [2.56 in ] max. displacement per revolution 55 cc [3.36 in...
  • Page 22 Technical Information Series 90 Axial Piston Pumps Master Model Code Size Series 90 Master Model Code (continued) High Pressure Regulation pressure limiter for port A and B (140-450 bar) high pressure relief valves for port A and B (90-450 bar)
  • Page 23 Technical Information Series 90 Axial Piston Pumps Master Model Code Size Series 90 Master Model Code (continued) Shaft Options splined shaft, 15 teeth, pitch = 16 / 32 splined shaft, 21 teeth, pitch = 16 / 32 splined shaft, 23 teeth, pitch = 16 / 32...
  • Page 24 1.6 *) 1.6 *) 0.81 1.02 *) No orif ce installed in control, orif ce hole in contro spool If further orif ce options are needed, please contact your Danfoss representative inlet P drain TA drain TB servo A servo B...
  • Page 25 Technical Information Series 90 Axial Piston Pumps Master Model Code Size Series 90 Master Model Code (continued) Special Hardware Features speedring, no sensor, CP30 +4,3° valve plate speed sensing, Turck connector (KPPx156), CP15° +0,5° valve plate speed sensing, Turck connector (KPPx156), CP30° +4,3° valve plate nested t- bar springs, CP15 +1,5°...

  • Page 26: Control Options

    Technical Information Series 90 Axial Piston Pumps Control Options 3-Position (FNR) Electric Control - DC, DD The 3-Position (FNR) control uses an electric input signal to switch the pump to a full stroke position. To use the FNR control in a PLUS+1 Guide application, download HWD file 10106826 from www.Danfoss.com/PLUS+1.

  • Page 27: Response Time

    (deceleration), is a function of the size of the orifice, the charge pressure, valve plates and other vehicle dynamics. A range of orifice sizes are available for the Series 90 FNR Control to assist in matching the rate of swashplate response to the acceleration and deceleration requirements of the application. Testing should be carried out to determine the proper orifice selection for the desired response.

  • Page 28: Features And Benefits

    Technical Information Series 90 Axial Piston Pumps Control Options piston tilts the cradle swashplate, thus varying the pump's displacement from full displacement in one direction to full displacement in the opposite direction. The control has a mechanical feedback mechanism which moves the servo valve in relation to the input signal and the angular position of the swashplate.
  • Page 29 Technical Information Series 90 Axial Piston Pumps Control Options Cross-section P C P P102 025 To use the EDC control in a PLUS+1 Guide application, download HWD file 10106626 from www.Danfoss.com/Plus1. Electrical Characteristics One of Dual Coils Dual Coils in Series...
  • Page 30 Technical Information Series 90 Axial Piston Pumps Control Options MS connector (option KA) MS 3102C-14S-2P Danfoss mating parts kit Part no. K01588 Ident No. 615062 P102 027E Packard® Weather-Pack (option KP) 4-way shroud connector Danfoss mating parts kit Part no. K03384...

  • Page 31: Response Time

    (deceleration) is a function of the size of the orifice in the control flow passage, charge pressure, valve plate and other vehicle dynamics. A range of orifice sizes is available for the Series 90 Electric Displacement Control to assist in matching the rate of swashplate response to the acceleration and deceleration requirements of the application. Testing should be carried out to determine the proper orifice selection for the desired response.

  • Page 32: Hydraulic Displacement Control (Hdc), Option Hf

    Technical Information Series 90 Axial Piston Pumps Control Options Pump Phasing With EDC Manual Operator (MOR) Pump Pump Flow Rotation Towards Connector Towards Connector P108 498E Manual Over Ride (MOR) EDC Pilot Stage (PCP) P108 496E EDC Second Stage Warning Unintended MOR operation will cause the pump to go into stroke.

  • Page 33: Response Time

    (deceleration) is a function of the size of the orifice in the control flow passage, charge pressure, valve plates and other vehicle dynamics. A range of orifice sizes are available for the Series 90 hydraulic displacement control to assist in matching the rate of swashplate response to the acceleration and deceleration requirements of the application.

  • Page 34: Pump Output Flow Direction Vs. Control Pressure

    Technical Information Series 90 Axial Piston Pumps Control Options Pump displacement vs. signal pressure 100 % Signal pressure "0" 100 % P102 031E Hydraulic signal pressure range* 3 ± 0.5 bar [43 ± 6 psi] 11 ± 0.5 bar [160 ± 6 psi] Pump output flow direction vs.

  • Page 35: External Control Handle Requirements

    Technical Information Series 90 Axial Piston Pumps Control Options • The manual displacement control is a high gain control: With only small movement of the control handle (input signal), the servo valve moves to full open position porting maximum flow to the servo cylinder.

  • Page 36: Response Time

    A range of orifice sizes is available for the Series 90 manual displacement control to assist in matching the rate of swashplate response to the acceleration and deceleration requirements of the application. Testing should be carried out to determine the proper orifice selection for the desired response.

  • Page 37: Mdc With Neutral Start Switch (Nss)

    Control response Series 90 controls are available with optional control passage orifices to assist in matching the rate of swashplate response to the application requirements (e.g. in the event of electrical failure). Software ramp or rate limiting should be used to control vehicle response in normal operation.

  • Page 38: Nfpe Control Used With A Danfoss Microcontroller

    100 % NFPE control Signal Current mA(DC) "0" 100 % P003 187E NFPE Schematic P003 174 NFPE control used with a Danfoss microcontroller • Creep mode • Two automotive control ramps via mode switch • Engine overspeed protection • Electric control •...

  • Page 39: Input Signal Requirements

    Amp Junior Timer AMP Junior Timer Amp Junior Timer * PWM Signal Required for Optimum Control Performance. To use the NFPE control in a PLUS+1 application, download the appropriate file from www.Danfoss.com/ PLUS+1. NFPE pump displacement vs. input signal Shaft rotation...

  • Page 40: Features And Options

    Multi-Function Valves Overpressure protection The Series 90 pumps are designed with a sequenced pressure limiting system and high pressure relief valves. When the preset pressure is reached, the pressure limiter system acts to rapidly de-stroke the pump to limit the system pressure. For unusually rapid load application, the high pressure relief valve is also available to limit the pressure level.

  • Page 41: Bypass Function

    Pump mounting flanges and shafts with the dimensions noted below are compatible with the auxiliary mounting pads on the Series 90 pumps. An O-ring is required when a pump is bolted to an aux pad. Refer to outline drawings for more details and O-ring dimensions.

  • Page 42: Displacement Limiter

    [0.71] [2.95] [1.06] Displacement Limiter All Series 90 pumps are designed with optional mechanical displacement (stroke) limiters. The maximum displacement of the pump can be set independently for forward and reverse using the two adjustment screws. Warning Adjusting the displacement limiter with the machine running may result in leakage. If backed out too far, the adjustment screw will come completely out of its threaded bore.

  • Page 43: Shaft Torque

    Technical Information Series 90 Axial Piston Pumps Features and Options Displacement limiter location Pump rotation Displacement limiter mounted on Displacement limitation at high servo side pressure side Right [CW] Left [CCW] Displacement limiter Side 2 Side 1 P108 705E Frame size...

  • Page 44: Shaft Torque For Tapered Shafts

    Technical Information Series 90 Axial Piston Pumps Features and Options maximum published rating. A flooded spline would be indicative of a pump driven by a pump drive or plugged into an auxiliary pad of a pump. Maintaining a spline engagement at least equal to the Pitch Diameter will also maximize spline life. Spline engagements of less than ¾...

  • Page 45: Tapered Shaft Customer Acknowledgement

    Technical Information Series 90 Axial Piston Pumps Features and Options Shaft availability and maximum input torque - splined shafts (continued) Option code Customer end Frame size/Maximum torque N•m [lbf•ft] 25T 20/40 1379 [1017] 1390 [1025] 13T 8/16 2303 [1700] 2303 [1700]...

  • Page 46: Charge Pump

    Charge Pump Charge flow is required on all Series 90 pumps applied in closed circuit installations. The charge pump provides flow to make up internal leakage, maintain a positive pressure in the main circuit, provide flow for cooling and filtration, replace any leakage losses from external valving or auxiliary systems, and to provide flow and pressure for the control system.

  • Page 47: Speed Sensor

    Technical Information Series 90 Axial Piston Pumps Features and Options Case drain: 80 °C (8.2 cSt) 180 °F (53 SUS) Reservoir temperature: 70 °C (11 cSt) 160 °F (63 SUS) Charge pump output flow 1000 2000 3000 4000 4500 Speed min¯¹ (rpm)
  • Page 48 Warning Do not energize the 4.5 to 8.5 Vdc sensor with 12 Vdc battery voltage. Use a regulated power supply. If you need to energize the sensor with battery voltage, contact your Danfoss representative for a special sensor. Pulse frequency Pulse per revolution 520L0603 •...

  • Page 49: Connector Pin Assignments

    Technical Information Series 90 Axial Piston Pumps Features and Options Connector Pin Assignments 3 pin Deutsch Plug DT Series connector 4 pin Deutsch® Plug DT Series Connector Speed Power + Power + Ground Speed Direction Ground 3525 3523 3 or 4 pin Delphi Connector...

  • Page 50: Installation Drawings

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Frame Size 042 Manual displacement control (MDC), endcap twin ports, option 80 View "Z" Control MDC, option MA "Y" Gauge port M2 [3.39] [4.37] system pressure B 9/16-18UNF-2B "W" Port S: Charge...
  • Page 51 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad – options AB, BC, BB View "X" Coupling spline data: Pitch diameter = 14.288 [0.5625] SAE A, option AB Pressure angle = 30° Number of teeth = 9 Pitch = 16/32 ANSI B92.1-1970, class 6,...
  • Page 52 Technical Information Series 90 Axial Piston Pumps Installation Drawings Shaft dimensions Option T8 [2.8] Cone flange must not [0.32] protrude beyond this point 28.1 [1.106] Self-lock nut (DIN 985) Refer to (torque - tapered shafts) table page 42 for torque information...

  • Page 53: Frame Size 055

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Frame Size 055 Manual displacement control (MDC), endcap side ports, option 60 View "Z" "Y" Control MDC, option MA Gauge port M2 93.7 111.1 system pressure B [3.69] [4.37] 9/16-18UNF-2B "W"...
  • Page 54 Technical Information Series 90 Axial Piston Pumps Installation Drawings Manual displacement control (MDC) endcap twin ports, option 80 Control MDC, option MA "Y" Gauge port M2 system pressure B 9/16-18UNF-2B Port S: charge pump inlet 1-5/16-12UN-2B 57.15 Ports A and B Gauge port M1: system pressure A [2.25]...
  • Page 55 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad – options AB, BC, CD, BB Coupling spline data: View "X" Pitch diameter = 14.288 [0.5625] Pressure angle = 30° SAE A, option AB Number of teeth = 9 Pitch = 16/32 ANSI B92.1-1970, class 6,...
  • Page 56 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad – options AB, BC, CD, BB Coupling spline data: Pitch diameter = 23.8125 [0.9375] View "X" Pressure angle = 30° SAE B-B, option BB Number of teeth = 15 Pitch = 16/32 ANSI B92.1-1970, class 6,...

  • Page 57: Frame Size 075

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Frame Size 075 Manual Displacement Control (MDC) Endcap Side Ports, Option 60 View "Z" "Y" Control MDC, option MA Gauge port M2 99.3 110.7 System pressure B [3.91] [4.36] 9/16-18UNF-2B "W"...
  • Page 58 Technical Information Series 90 Axial Piston Pumps Installation Drawings Manual Displacement Control (MDC), endcap twin ports, option 80 Control MDC, option MA "Y" Gauge port M2 system pressure B 9/16-18UNF-2B Port S: charge pump inlet 1-5/16-12UN-2B 57.15 Gauge port M1: system pressure A [2.25]...
  • Page 59 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad – Options AB, BC, CD, BB Coupling spline data: View "X" Pitch diameter = 14.288 [0.5625] Pressure angle = 30° SAE A, option AB Number of teeth = 9 Pitch = 16/32 ANSI B92.1-1970, class 6,...

  • Page 60: Frame Size 075 Nfpe Options Fk, Fl, Fm, Fn

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad – options AB, BC, CD, BB Coupling spline data: Pitch diameter = 23.8125 [0.9375] View "X" Pressure angle = 30° SAE B-B, option BB Number of teeth = 15 Pitch = 16/32 ANSI B92.1-1970, class 6,...
  • Page 61 Technical Information Series 90 Axial Piston Pumps Installation Drawings View "C" View "A" Charge pressure Gage port M4 relief valve Servo pressure 9/16-18UNF-2B 110.8 [4.362] Multifunction valve Connector Deutsch: DTM 06-3 S Split flange boss (2x) DN 25 TypII 40MPa series per ISO 6162 Thread: 0.4375-14UNC-2B...
  • Page 62 Technical Information Series 90 Axial Piston Pumps Installation Drawings View "E" 262.4 [10.332] 141.7 [5.581] P104 327E Integrated NFPE control, endcap twin ports "C" System pressure B [12.043] Gage port M2 9/16-18UNF-2B Case drain L1 [2.118] 1-1/16-12UN-2B Connector [0.56] AMP Junior Typ A 12.45±0.25...
  • Page 63 Technical Information Series 90 Axial Piston Pumps Installation Drawings View "C" Gage port M4 Servo pressure 9/16-18UNF-2B Connector Deutsch: DTM 06-3 S [6.780] Gage port M5 Servo pressure 9/16-18UNF-2B P104 329E Shaft dimensions Coupling must not protude beyond this surface [0.311]...
  • Page 64 Technical Information Series 90 Axial Piston Pumps Installation Drawings Option T6 [3.504] [0.358] Cone flange must not protude beyond this point 32.1 Wrench size 36 mm [1.264] Refer to (torque - tapered shafts) table page 42 for torque information 38.1 M24 x 1.5...

  • Page 65: Frame Size 100

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Frame Size 100 Manual Displacement Control (MDC), endcap side ports, option 60 View "Z" "Y" Control MDC, option MA Gauge port M2 108.5 119.6 system pressure B [4.27] [4.71] 9/16-18UNF-2B "W"...
  • Page 66 Technical Information Series 90 Axial Piston Pumps Installation Drawings Manual Displacement Control (MDC), endcap twin ports, option 80 Gauge port M2 "Y" system pressure B 9/16-18UNF-2B Port S: charge pump inlet 1-5/8-12UN-2B 57.15 Gauge port M1: system pressure A Ports A and B [2.25]...
  • Page 67 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pads, SAE AB, SAE BC, SAE CD COUPLING SPLINE DATA: View "X" Pitch Dia = 14,288 (.5625) Pressure Angle = 30 SAE A, Option AB Number of teeth = 9 Pitch = 16/32 ANSI B92.1-1970, Class 6,...
  • Page 68 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad, SAE BB COUPLING SPLINE DATA: Pitch Dia = 23,8125 (.9375) View "X" Pressure Angle = 30 SAE B-B, Option BB Number of teeth = 15 Pitch = 16/32 ANSI B92.1-1970, Class 6,...
  • Page 69 Technical Information Series 90 Axial Piston Pumps Installation Drawings Option T6 [3.504] 9.54 [0.376] 47.8 Cone flange must not protude beyond this point [1.882] Wrench size 36 mm Refer to (torque - tapered shafts) table page 42 for torque information 38.1...

  • Page 70: Frame Size 130

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Frame Size 130 Manual Displacement Control (MDC), end cap twin ports, option 80 View "Z" "Y" Gauge port M2 110.5 System pressure B [4.35] 9/16-18UNF-2B "W" Port S: charge pump inlet 12.45...
  • Page 71 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad - options AB, BC, CD, DE, BB View "X" Coupling spline data: Pitch diameter = 14.288 [0.5625] SAE A, option AB Pressure angle = 30° Number of teeth = 9 Pitch = 16/32 ANSI B92.1-1970, class 6,...
  • Page 72 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad - options AB, BC, CD, DE, BB View "X" Coupling spline data: Pitch diameter = 41.275 [1.625] SAE D, option DE Pressure angle = 30° Number of teeth = 13 Pitch = 8/16 ANSI B92.1-1970, class 6,...
  • Page 73 Technical Information Series 90 Axial Piston Pumps Installation Drawings Shaft dimensions Option C8 ISO 3019-1 Option F1 ISO 3019-1 (27 tooth) (13 tooth) Coupling must not protude beyond this surface Coupling must not protude beyond this surface [0.311] [0.311] 66.7 66.7...

  • Page 74: Frame Size 180

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Frame Size 180 Manual Displacement Control (MDC), end cap twin ports, option 80 View "Z" "Y" 156.42 Gauge port M2 [6.16] System pressure B "W" 9/16-18UNF-2B Port S: charge [0.79] 15.65 ±0.25 pump inlet [0.62 ±0.011]...
  • Page 75 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad - options AB, BC, CD, DE, EF, EG, BB View "X" Coupling spline data: SAE A, option AB Pitch diameter = 14.288 [0.5625] Pressure angle = 30° Number of teeth = 9 Pitch = 16/32 ANSI B92.1-1970, class 6,...
  • Page 76 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad - options AB, BC, CD, DE, EF, EG, BB Coupling spline data: View "X" Pitch diameter = 41.275 [1.625] SAE D, option DE Pressure angle = 30° Number of teeth = 13 Pitch = 8/16 ANSI B92.1-1970, class 6,...
  • Page 77 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad - options AB, BC, CD, DE, EF, EG, BB Coupling spline data: View "X" Pitch diameter = 23.8125 [0.9375] SAE B-B, option BB Pressure angle = 30° Number of teeth = 15 Pitch = 16/32 ANSI B92.1-1970, class 6,...

  • Page 78: Frame Size 250

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Frame Size 250 Manual Displacement Control (MDC), end cap twin ports, option 80 View "Z" "Y" "W" [0.79] 15.65 ±0.25 [0.62 ±0.011] Rotation 69.85 "X" [2.75] Port S: R 0.8 max.
  • Page 79 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad - options AB, BC, CD, DE, EF, EG, BB View "X" Coupling spline data: SAE A, option AB Pitch diameter = 14.288 [0.5625] Pressure angle = 30° Number of teeth = 9 Pitch = 16/32 ANSI B92.1-1970, class 6,...
  • Page 80 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad – options AB, BC, CD, DE EF, EG, BB Coupling spline data: View "X" Pitch diameter = 41.275 [1.625] SAE D, option DE Pressure angle = 30° Number of teeth = 13 Pitch = 8/16 ANSI B92.1-1970, class 6,...
  • Page 81 Technical Information Series 90 Axial Piston Pumps Installation Drawings Auxiliary mounting pad – options AB, BC, CD, DE, EF, EG, BB View "X" Coupling spline data: Pitch diameter = 23.8125 [0.9375] SAE B-B, option BB Pressure angle = 30 Number of teeth = 15 Pitch = 16/32 ANSI B92.1-1970, class 6,...

  • Page 82: Cover Plate

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Cover Plate Option CA Port View "W" Displacement limiter option 4 limitation both sides Port P102065 "W" Dimensions Frame size C4 maximum (option 4) 67.9 [2.67] 129.5 [5.10] 99.5 [3.92] 108 [4.25] 69.2 [2.72]...

  • Page 83: Electric Displacement Control (Edc) With Ms-Connector Or Packard® Connector

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Dimensions Frame size C5 maximum C5.1 C5.2 196.5 [7.74] 108.8 [4.28] 106.2 [4.18] 200.6 [7.90] 108.8 [4.28] 106.2 [4.18] 207.9 [8.19] 108.8 [4.28] 106.2 [4.18] 216.8 [8.54] 117.4 [4.62] 97.6 [3.84] 235.7 [9.28]...

  • Page 84: Hydraulic Displacement Control (Hdc)

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Hydraulic Displacement Control (HDC) Port X1 View "W" Option HF Port X2 "W" Dimensions Frame size C8.1 C8.2 143.5 [5.65] 135.0 [5.31] 71.0 [2.79] 75.7 [2.98] 89.6 [3.52] 99.2 [3.90] 150.8 [5.94] 139.0 [5.47]...

  • Page 85: Electrohydraulic Displacement Control (Nfpe)(Except 075 Nfpe)

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Dimensions (continued) Frame size 25.0 [0.98] 106.9 [4.21] 31.3 [1.23] 115.8 [4.56] 46.0 [1.81] 134.5 [5.29] 52.0 [2.04] 151.8 [5.97] 52.0 [2.04] 151.8 [5.97] Electrohydraulic Displacement Control (NFPE)(except 075 NFPE) View "V"...

  • Page 86: Integral Pressure Filter

    Technical Information Series 90 Axial Piston Pumps Installation Drawings Dimensions (continued) Frame Size Option “X” “Y” FA, FB, FC, FD 235.00 [9.25] 161.10 [6.34] FG, FH 176.60 [6.95] FG, FH 244.10 [9.61] 195.50 [7.70] FG, FH 290.00 [11.42] 213.00 [8.39] —...
  • Page 87 Technical Information Series 90 Axial Piston Pumps Installation Drawings Dimensions Frame size F4 maximum F5 maximum F6 maximum F7 maximum 174.5 [6.87] 262.6 [10.34] 201.4 [7.93] 207.7 [8.12] 112.7 [4.44] 152.7 [6.01] 168.0 [6.61] 174.5 [6.87] 262.6 [10.34] 240.9 [8.19] 209.6 [8.25]...
  • Page 88 Technical Information Series 90 Axial Piston Pumps 520L0603 • Rev 0804 • March 2016...
  • Page 89 Technical Information Series 90 Axial Piston Pumps 520L0603 • Rev 0804 • March 2016...
  • Page 90 Technical Information Series 90 Axial Piston Pumps 520L0603 • Rev 0804 • March 2016...
  • Page 91 Phone: +86 21 3418 5200 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without changes being necessary in specifications already agreed.
