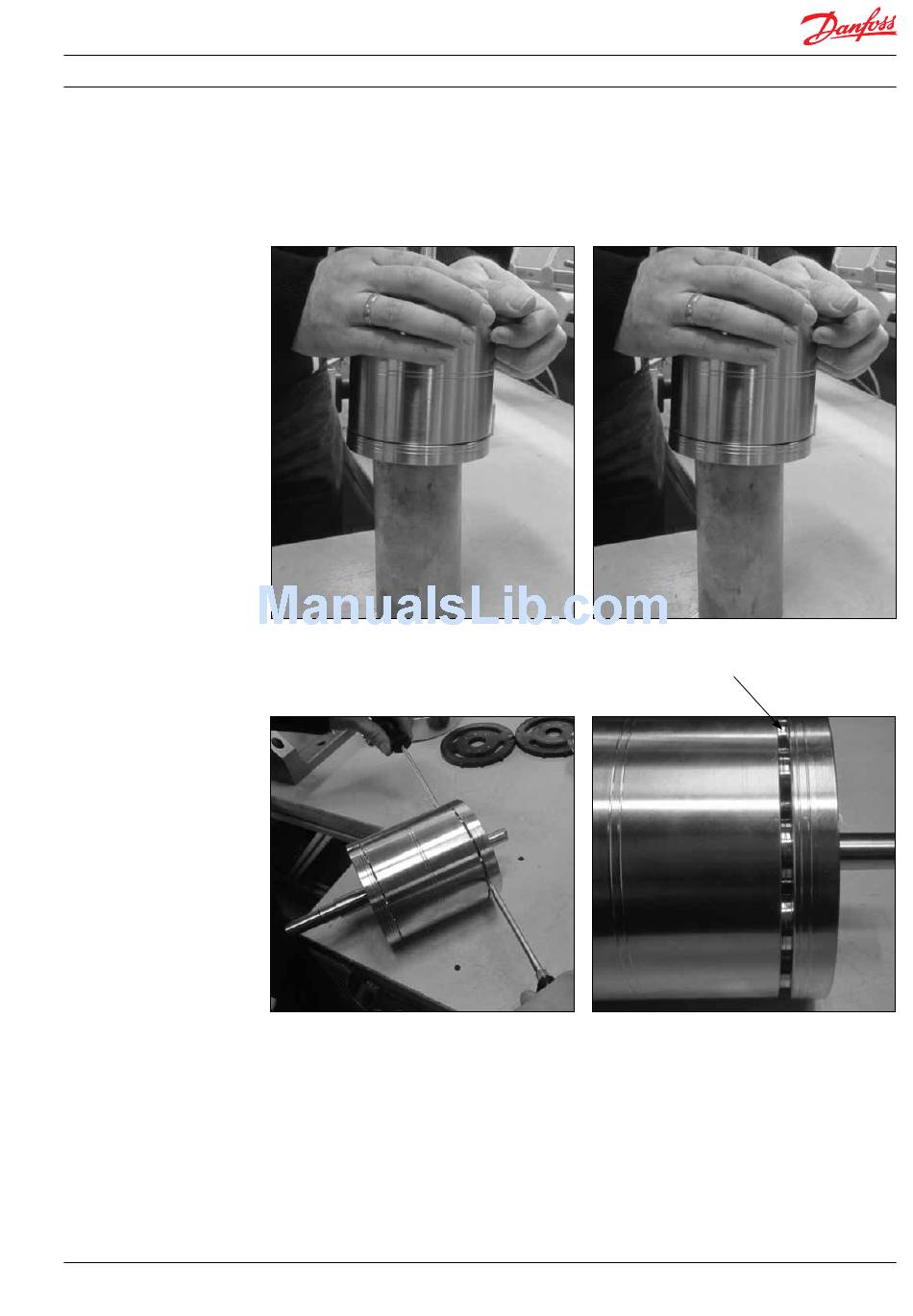

Service instruction
Disassembling and assembling iSave 21
3.
Gently press, by hand, the first valve plate
onto the cylinder barrel.
Note: don't scratch the valve plate when
placing it on the plastic tube.
18.
Adjust the distance between the cylinder
drum and the second valve plate.
5.
Adjust the distance between the cylinder barrel
and the second valve plate (short shaft end).
180R9219 / 521B1171 / DKCFN.PI.003.K3.02 / 11.2013
4.
Gently press, by hand, the second valve
plate onto the cylinder barrel by placing it
on the plastic tube.
Note: don't scratch the valve plate when
placing it on the plastic tube.
The distance must be about 4-6 mm.
This is not critical.
The distance must be about 4-6 mm.
This is not critical.
7
