Service instruction
5 .

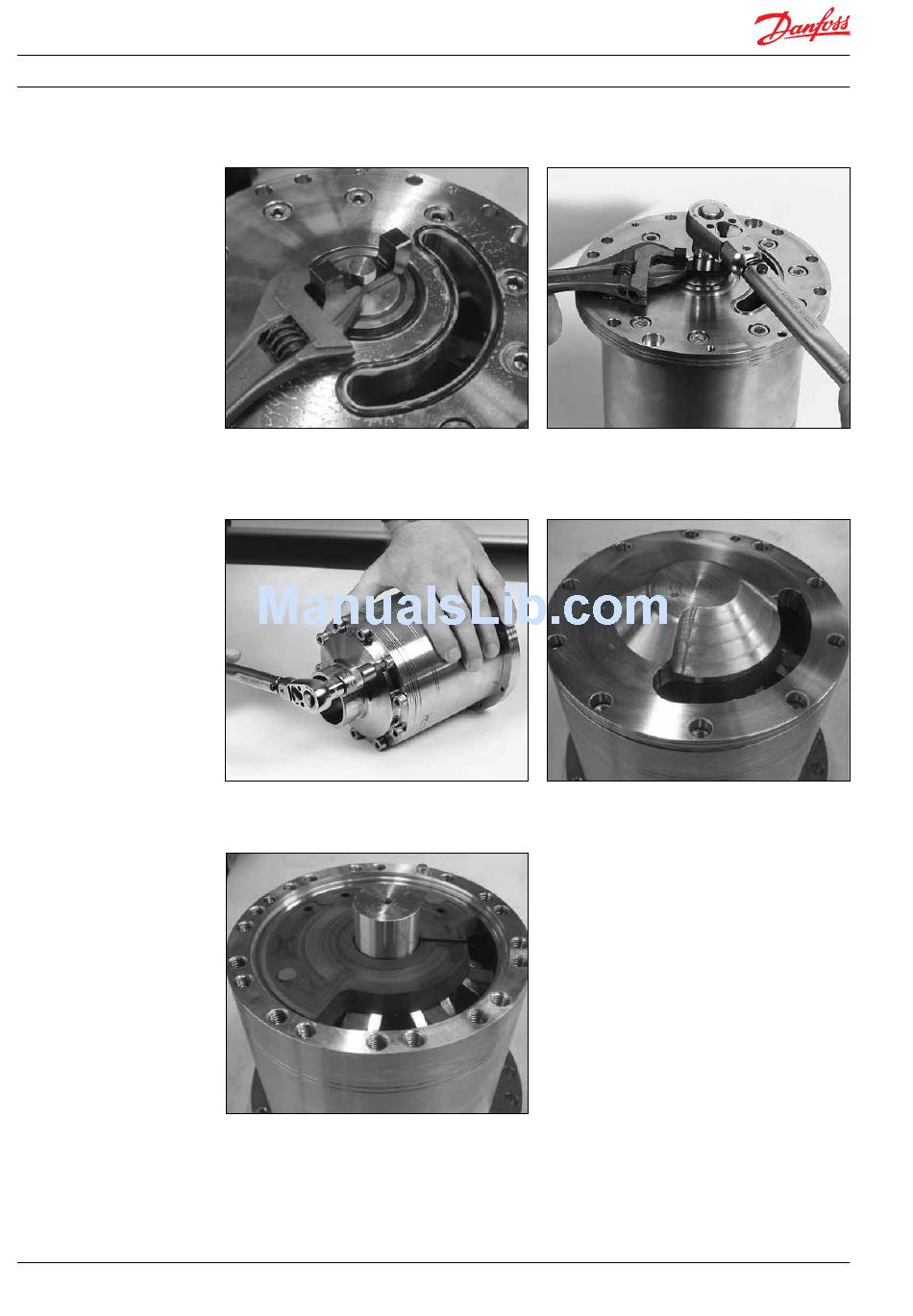

Disassambling the
vane pump
12
Disassembling and assembling iSave 21
1.
Gently adjust the spanner wrench around
the coupling and use it as back stop.
3.
Remove all bolts in the HP out connection
flange.
5.
Remove side plate and pin
180R9219 / 521B1171 / DKCFN.PI.003.K3.02 / 11.2013
2.
Unscrew the bolt in the middle of the
coupling and remove the coupling.
4.
Remove the flange.
