Danfoss iSave 21 Service Instruction page 10

Service instruction
10

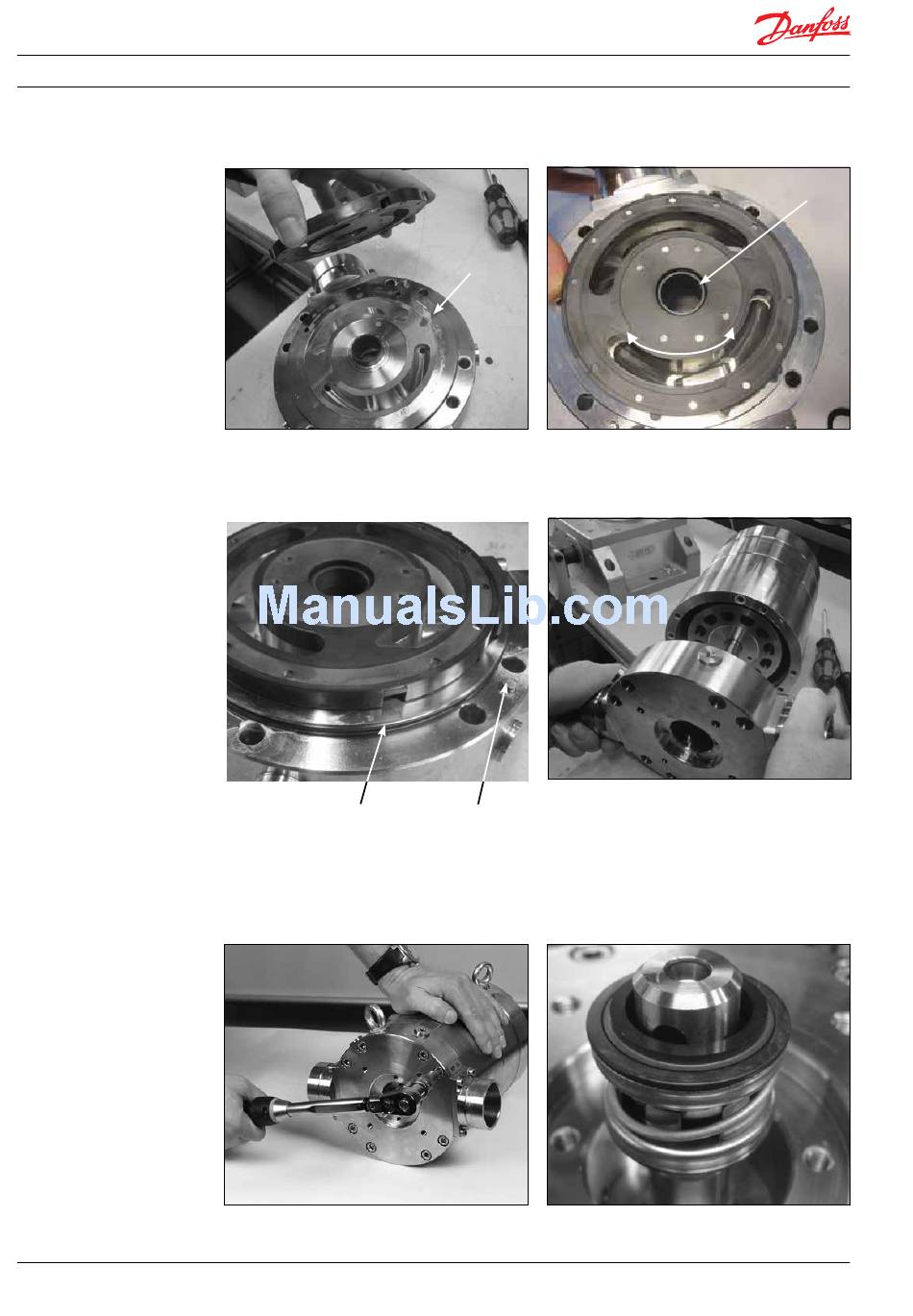

Disassembling and assembling iSave 21
17. Position the port plate over the guide pin.
19. Change the O-ring in the flange and
position the guide pin.
O-ring
21. Mount all bolts in the flange and tighten
them to a torque of 30 Nm ± 3 Nm.
180R9219 / 521B1171 / DKCFN.PI.003.K3.02 / 11.2013
18 Check that the port plate fits the center
bearing and the guide pin.
20. Position the port flange over the guide pin.
Guide pin
22. Wet the shaft seal with clean filtered water.
Do not use silicone grease .
Fit the shaft seal with the carbon surface upward.
