Service instruction
Disassembling and assembling iSave 21

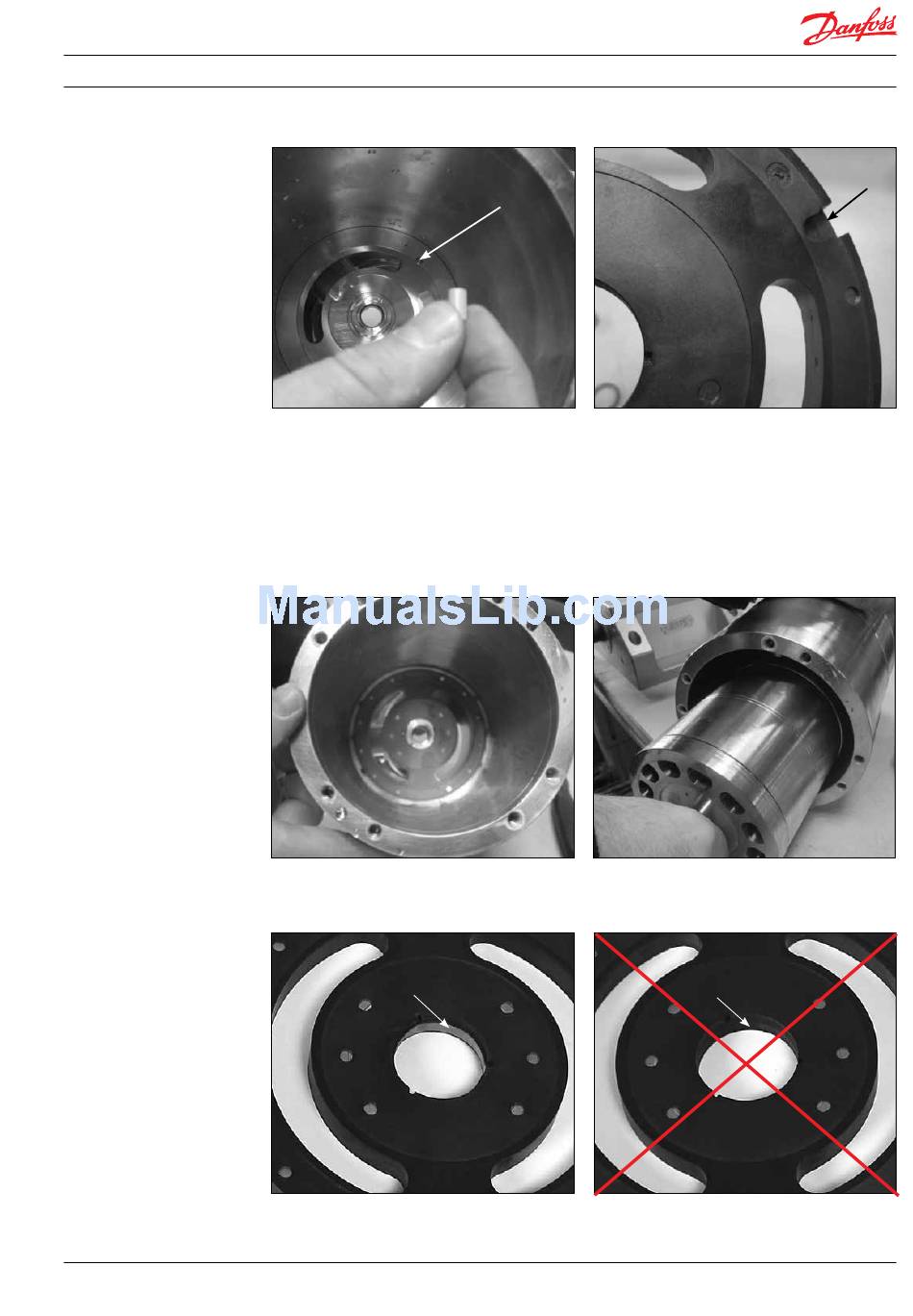

11.
Fit the guide pin in the flange.
There are two different port plates in the iSave. One of them can be mounted on both flanges in
the pressure exchanger. Make sure that they are assembled on the right flange.
13.
Position the port plate over the guide pin.
Note: Make sure that the guide pin is located
in the locating hole in the port plate .
15.
Check the next port plate is correct.
Correct small
center hole
180R9219 / 521B1171 / DKCFN.PI.003.K3.02 / 11.2013
12.
Location hole in port plate.
14.
Gently guide the cylinder barrel into the
bearing in the flange.
Wrong! large center hole.
16.
Wrong! large
center hole
9
