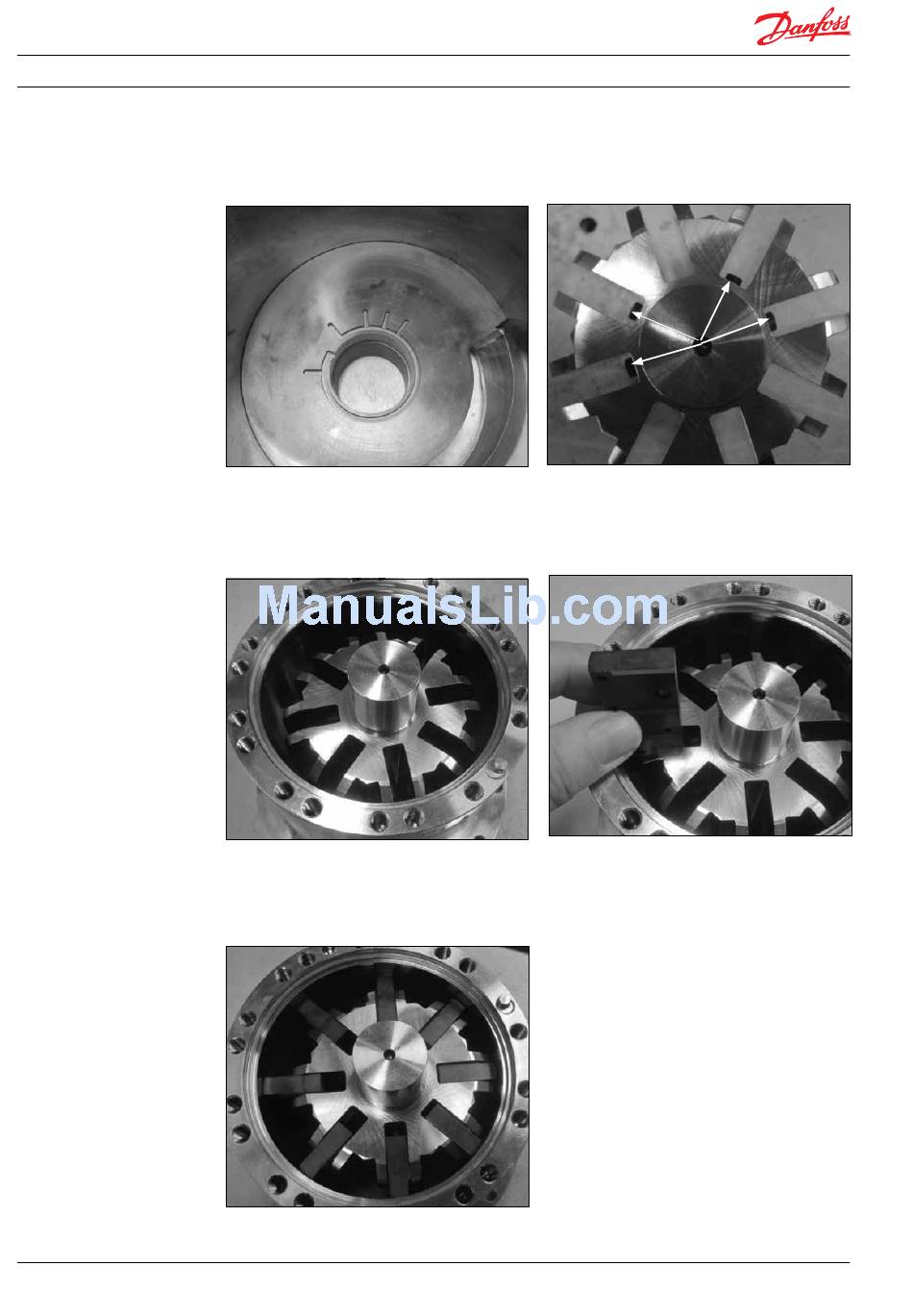

Service instruction
14
Disassembling and assembling iSave 21
3.
Position the side plate over the guide pin.
Note: Make sure that the guide pin is located
in the locating hole in the port plate. See #2
5.
Gently place the rotor in the bearing.
7.
Check that all vanes are positioned
correctly.
180R9219 / 521B1171 / DKCFN.PI.003.K3.02 / 11.2013
4.
Place the 4 pins in the rotor.
6.
Position the 8 vanes in the rotor.
The pins may be moved by using a
screwdriver.
