Operation

Unhitching from Tow Vehicle

NOTE: Prior to unhitching from the tow vehicle, ensure unit is
parked on a level surface and be sure to chock the tires of
the unit .
1 . Extend the inner legs of both landing gear 4-5 inches by
pulling on the quick release pins .

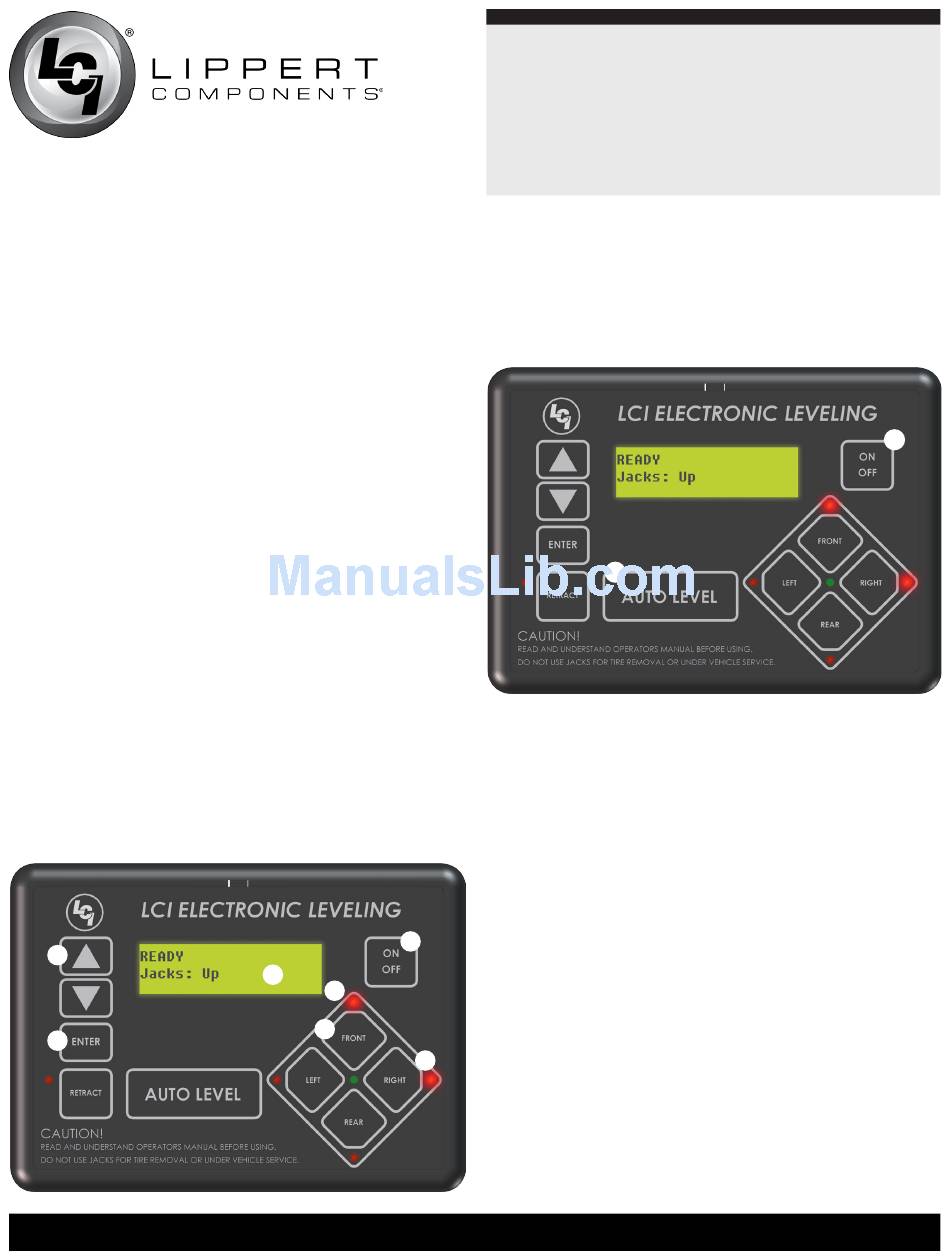

2 . Push "ON/OFF" (Fig . 29A) . LCD Screen will light up and
display "READY JACKS: UP" (Fig. 29B).
3 . Push the "UP" arrow (Fig . 29C) to scroll to "Drop Front
Jacks" option on LCD screen .
NOTE: Red indicator lights (Fig . 29D) may come on,
indicating the current disposition of the unit . In this case,
the front and right sides of the unit are low .
4 . Push "ENTER" (Fig . 29E) . Both front landing gear jacks will
go to ground and stop .
5 . Push the "FRONT" button (Fig . 29F) extending the front
landing gear to a sufficient height, which raises the front of
the unit off of the tow vehicle's 5th wheel hitch plate .
6 . Pull tow vehicle away and park at a safe distance .
C
E
www.lippertcomponents.com
Fig.29
B
D
F
(574) 537-8900
Level-Up®
Aftermarket Manual

Auto Level

1 . After unhitching from tow vehicle, and parking the vehicle
at a safe distance away from the unit, press the "ON/OFF"
button (Fig . 30A) and then press "AUTO LEVEL" (Fig . 30B) .
NOTE: Once the automatic leveling cycle has been started, it
is important that there is no movement in the coach until
the unit has completed the leveling process . Failure to
remain still during the leveling cycle could have an effect
on the performance of the leveling system .
NOTE: In order for the hitch recognition feature to function,
the auto level sequence must be started with the front of
the unit above level .
Auto Level Sequence
A
1 . When Auto Level Sequence begins, the front of the unit will
lower slightly to a point below level . The coach will then
stop and raise up to the point where it is level from front to
rear .
2 . Rear leveling jacks are grounded .
D
3 . A side to side leveling sequence occurs .
4 . Each jack will perform a final grounding touch .
5 . LCD will read "AUTO LEVEL SUCCESS" (Fig . 31) .
6 . LCD will then read "READY Jacks: Down" (Fig . 32A), and
13
Fig.30
B
Rev: 09.15 - Level-Up® Aftermarket Manual
A
