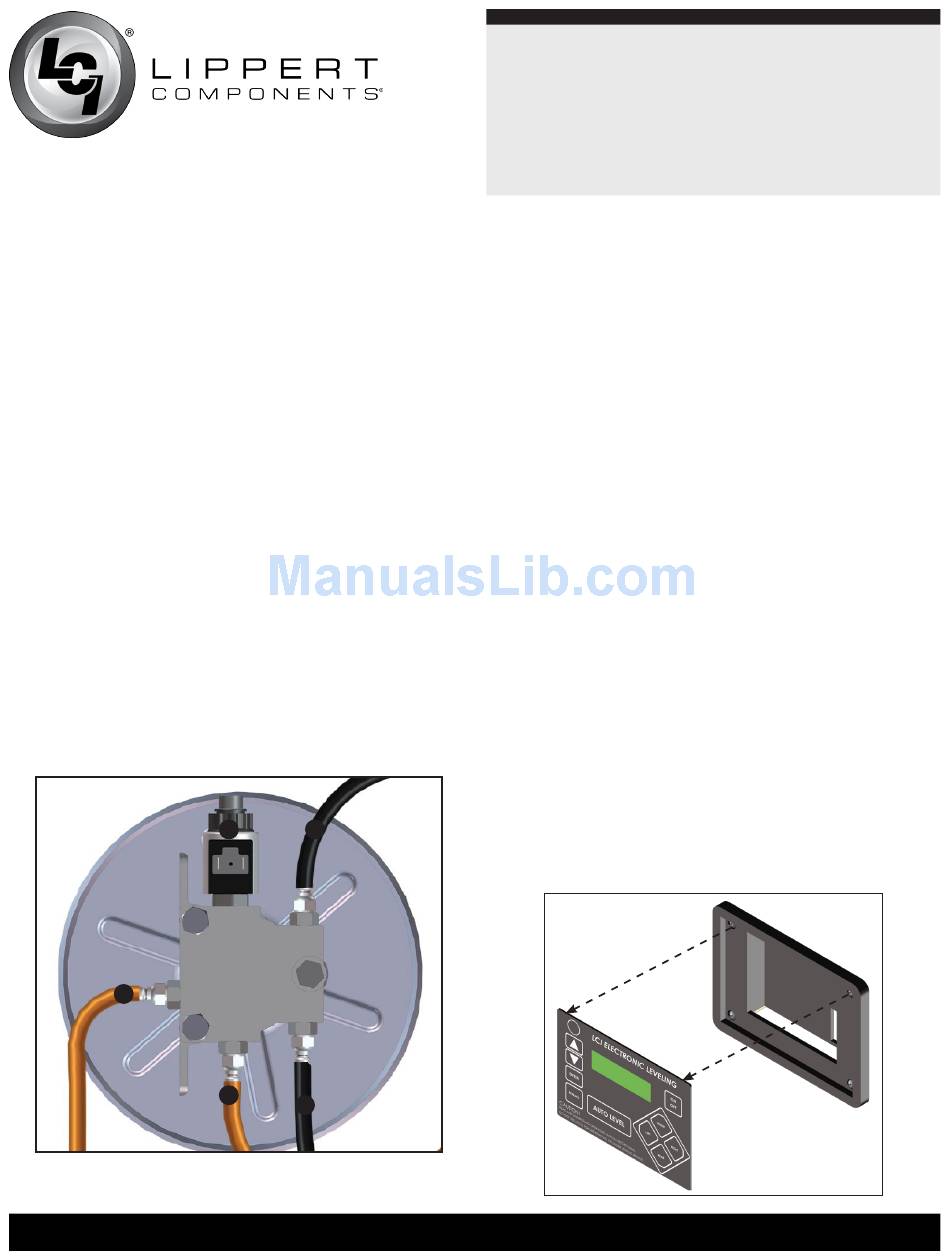

6 . Make hoses to connect the valve blocks to the lead landing
gear. Six-foot lengths should be sufficient; one (1) extend
(orange) hose and one (1) retract (black) hose .
7. Connect the extend hose to the final JIC fitting on the extend
valve block, (Fig. 19I) to the JIC fitting directly across from the
cartridge valve and coil assembly that is installed on the lead
landing gear, (Fig . 20A) .
8. Connect the retract hose to the final JIC fitting on the retract
valve block (Fig. 19L) to the JIC fitting in the retract port on the
lead landing gear (Fig . 20D) .
9 . Make hoses to connect the lead landing gear to the follow
landing gear. Nine-foot lengths should be sufficient: one (1)
extend (orange) hose, and one (1) retract (black) hose .
10. Connect the extend hose to the JIC fitting in the rear of the
lead landing gear (Fig . 20B) and then to the JIC adapter in the
extend port of the follow landing gear .
11. Connect the retract hose to the JIC fitting in the other retract
port of the lead landing gear (Fig. 20E) and then to the fitting
in the retract port of the follow landing gear .
B
www.lippertcomponents.com
Fig.20
C E
A
D
(574) 537-8900
Level-Up®
Aftermarket Manual

Wiring the System

NOTE: Refer to the wiring diagram (Page 17, Fig . 40) throughout
this section .
NOTE: The Level Up system wiring is basically a plug and play
system . Your kit should include harnesses for the entire
system . If it does not, contact Lippert Components to have the
proper harnesses shipped to you .
1 . Install the controller to the ceiling of the front compartment . It
must be centered side to side, and oriented according to the
arrows on the controller label .
2 . Connect the rear sensor harness to the matching port on the
controller .
NOTE: Each connector on the controller is a different shape and
has a different number of pins . Each harness that connects to
the controller can only be connected in one specific way. This
prevents the installation of the wrong harness in the wrong
connector .

Touch Pad

1 . Determine where to mount the touch pad . The touch pad
should be mounted in a compartment on the side of the
unit so the operator will have a view of the hitch pin while
using the touch pad .
2 . Remove the face plate of the touch pad from the mounting
bezel (Fig . 21) .
9
Rev: 09.15 - Level-Up® Aftermarket Manual
Fig.21
