- Page 1 Level-Up (Towable) System ® OWNER'S MANUAL Page 1 Rev: 04.05.2018 Level-Up Towable Owner's Manual...
-
Page 2: Table Of Contents
Zero Point Calibration Maintenance Fluid Recommendation Troubleshooting Error Display in LCD Screen Manual Override Fifth Wheel Level-Up® 4 Point Assembly Travel Trailer Level-up® 4 Point Assembly Fifth Wheel Level-Up® 6 Point Assembly Level-Up® Electronic Components Level-Up® Components Level-Up® Components Level-Up® Components Level-Up®... -
Page 3: Introduction

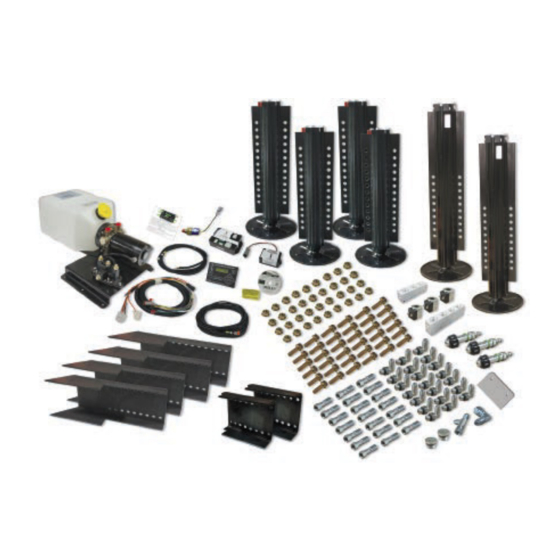

Introduction Level-Up® is an Automatic Leveling system. This system is equipped with 14K aluminum landing gear and 8K aluminum leveling jacks. The jacks in the Level-Up® system work in pairs. -
Page 4: Prior To Operation
Once system is in “MANUAL MODE,” pressing the “REAR” button (Fig. 1J) will extend all Level-Up jacks at the same time. Press the “LEFT” or “RIGHT” buttons (Fig. 1H and 1I) to operate Level-Up jacks on the left or right side of the unit, respectively. -
Page 5: Auto Level
Connect tow vehicle and make sure 5th wheel and hitch are connected and locked. Push “UP” arrow (Fig. 1A) until ”AUTO RETRACT” appears in LCD screen. Push “ENTER” (Fig. 1C). System will immediately retract all jacks. Page 5 Rev: 04.05.2018 Level-Up Towable Owner's Manual... -
Page 6: Travel Trailer Operation
Turn on touch pad. Press the left and right buttons simultaneously (Fig. 1H and 1I). The front of the unit will raise to the height where the auto level sequence was started. Page 6 Rev: 04.05.2018 Level-Up Towable Owner's Manual... -
Page 7: Manual Operation
B. Push scroll arrow to display “MANUAL MODE” (Fig. 4). C. Push “ENTER" button, “MANUAL MODE” displayed (Fig. 4). NOTE: By pushing “RIGHT,” passenger side Level-Up jacks operate. By pushing “LEFT,” driver side Level-Up jacks operate, and so on. Level-Up jacks - RETRACT A. -
Page 8: Zero Point Calibration
LCD display will read “Zero point set successfully” once process is complete (Fig. 7). Fig. 7 The system will set this point as its level state and the touch pad will turn off. Page 8 Rev: 04.05.2018 Level-Up Towable Owner's Manual... -
Page 9: Maintenance
Type “A” Automatic Transmission Fluid (ATF) is utilized and will work. ATF with Dexron III® or Mercon 5® or a blend of both is recommended by Lippert Components, Inc. In colder temperatures (less than 10° F) the jacks may extend and retract slowly due to the fluid’s molecular nature. -
Page 10: Manual Override
Manual Override The LCI Level-Up Automatic Leveling System can be manually operated with an electric drill. In the event of electrical or system failure, this manual method of extending and retracting the jacks can be used. See the instructions below. -
Page 11: Fifth Wheel Level-Up® 4 Point Assembly
Hollow Hex Plug x2 90° Elbow Fitting x15 Bolt 1/2" x20 Spade Coil x3 Cartridge Valve x3 T-Fitting x2 Nut 1/2" x20 Page 11 of 22 Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com Rev: 04.05.2018... -
Page 12: Travel Trailer Level-Up® 4 Point Assembly
Bolt 1/2" x20 Cartridge Valve x3 Nut 1/2" x20 Hollow Hex Plug x2 90° Elbow Fitting x21 Spade Coil x3 Page 12 of 22 Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com Rev: 04.05.2018... -
Page 13: Fifth Wheel Level-Up® 6 Point Assembly
Hollow Hex Plug x2 90° Elbow Fitting x17 Bolt 1/2" x20 Spade Coil x3 Cartridge Valve x3 T-Fitting x2 Nut 1/2" x20 Page 13 of 22 Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com Rev: 04.05.2018... -
Page 14: Level-Up® Electronic Components
Switch Controller Controller Touch Pad Harness Harness Touch Pad Rear Sensor Mounting Plate Remote Rear Sensor 80 AMP 12V Breaker Page 14 of 22 Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com Rev: 04.05.2018... -
Page 15: Level-Up® Components
Dual Polarity Solenoid 174184 Deutsch Coil 176954 Spade Coil 177094 Cartridge Valve 142927 Pressure Switch 167576 Power Unit Motor 157505 Fill Cap Page 15 of 22 Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com Rev: 04.05.2018... -
Page 16: Level-Up® Components
Rear Sensor Harness NOTE: * Circuit Protection requirement is 50 amps to 100 amps as needed by RVIA Standards and OEM requirements. Page 16 of 22 Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com Rev: 04.05.2018... -
Page 17: Level-Up® Components
Footpad O-Ring 178208 Footpad Washer 118076 Bolt; 1/2" - 20 178210 Nut; 1/2" - 20 134989 Mount Bracket 218210 Mount Bracket Page 17 of 22 Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com Rev: 04.05.2018... -
Page 18: Level-Up® Components
Long Straight Fitting 138423 Union T-Fitting 136225 Cross Fitting 138416 Hose Coupling 140457 Quick Disconnect 141323 Hex Plug 140998 Hollow Hex Plug Page 18 of 22 Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com Rev: 04.05.2018... -
Page 19: Level-Up® Components
8 Port Header Block 248654 Orange Hose 248653 Black Hose 4 Position Eirc Block w/ Mounting 194712 Holes and Pass Through Page 19 of 22 Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com Rev: 04.05.2018... -
Page 20: Notes
Notes Page 20 Rev: 04.05.2018 Level-Up Towable Owner's Manual... - Page 21 Notes Page 21 Rev: 04.05.2018 Level-Up Towable Owner's Manual...
- Page 22 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
