Plumbing Diagram - Lippert Components Level-Up Manual
Hydraulic leveling system
Hide thumbs
Also See for Level-Up:
- Owner's manual (28 pages) ,
- Installation and owner's manual (20 pages) ,
- Quick reference (2 pages)
Table of Contents
Advertisement

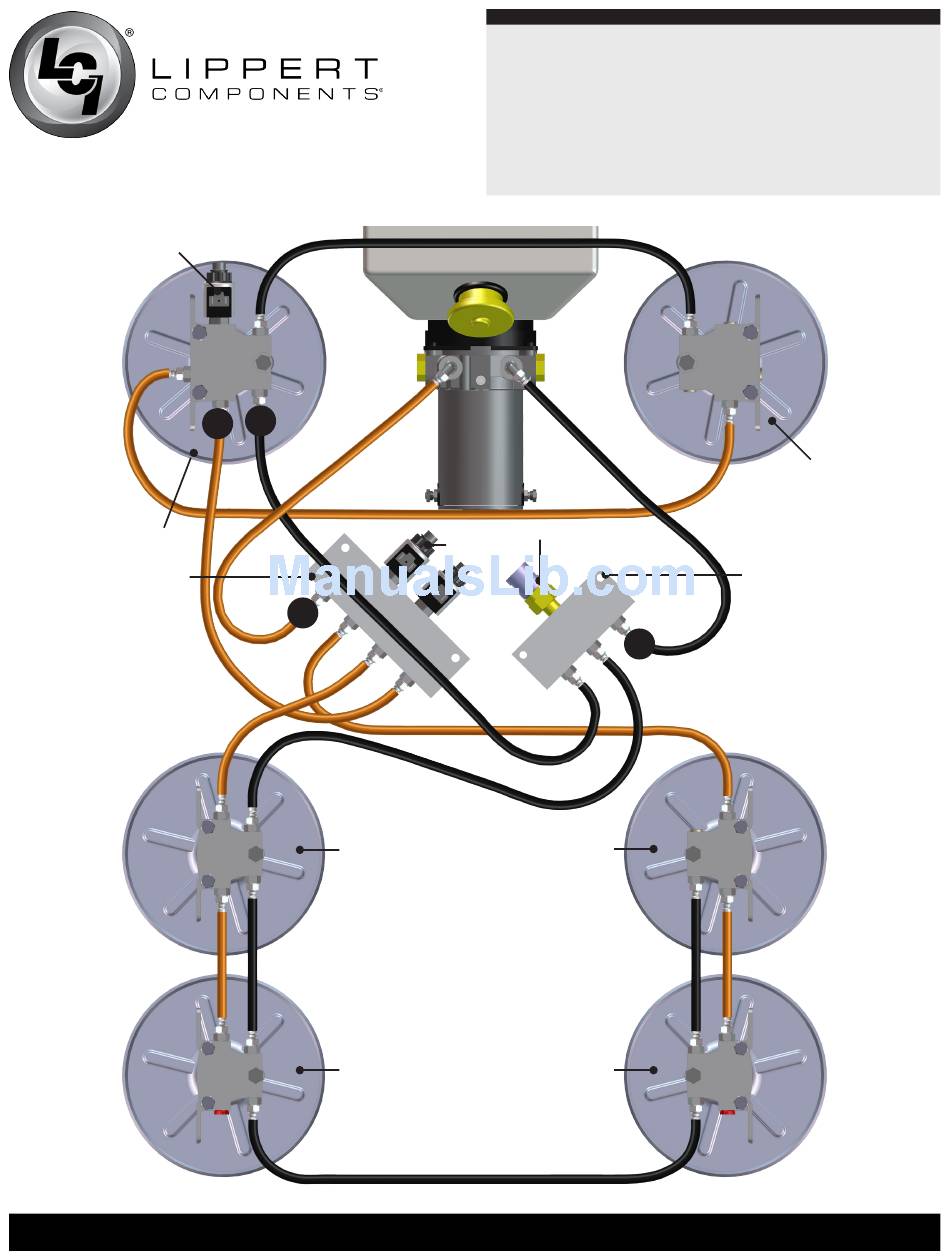

Plumbing Diagram - Fig. 41
Valve
Landing Gear
Extend Valve Block
www.lippertcomponents.com
A B
C
Leveling Jack
Leveling Jack
(574) 537-8900
Level-Up®
Aftermarket Manual
Power unit
Pressure Switch
Valve
Leveling Jack
Leveling Jack
18
Rev: 09.15 - Level-Up® Aftermarket Manual
Landing Gear
Retract Valve Block
D
