4 . Connect the rear sensor harness to the connector on the
rear sensor and run the harness through the frame and up
to the compartment where the controller will be mounted .

Front Landing Gear

1. Remove old landing gear. If necessary, cut holes in the floor
pan of the front compartment to create more clearance to
install the new landing gear . Cover plates are included in the
parts kit to cover the holes .

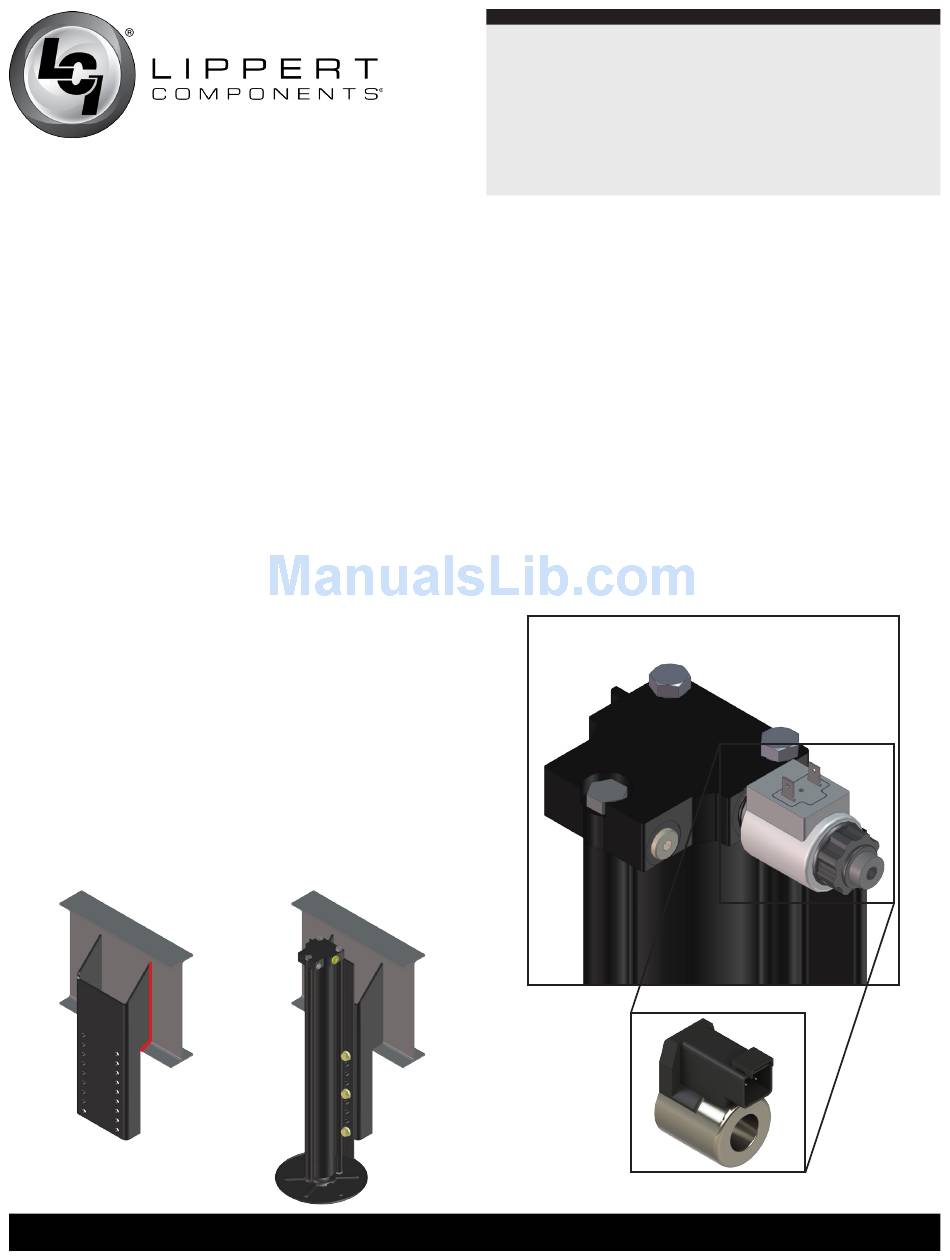

2 . Weld mounting bracket to I-beam (Fig . 15) .
NOTE: When installing this system on a smaller frame, tack
welding the nuts on the backside of the mounting bracket prior
to welding the bracket to the frame will simplify tightening the
bolts when mounting the jacks .
3 . Paint the mounting brackets and welded frame areas black
after the welds have cooled .
4 . Slide the jacks into position on the mounting brackets . On
a straight frame, the jack should be positioned as low as
possible while maintaining at least 12" of ground clearance
when in the retracted position . On a drop frame, the jack
should be placed as high as possible in order to maintain at
least 12" of ground clearance . Use six bolts and nuts to attach
the jack to the mounting bracket (Fig . 16) .
Fig.15
www.lippertcomponents.com
Fig.16
(574) 537-8900
Level-Up®
Aftermarket Manual
NOTE: Be sure to not cross thread the bolts and nuts .
5. Install the JIC hydraulic fittings into the landing gears. (See
Plumbing Diagram for orientation) .
6 . Install the cartridge valve and spade coil assembly into the lead
landing gear (Fig . 17) .
NOTE: A sparkproof valve coil (Fig . 17 Detail) may be required if
the landing gear is installed in an LP compartment .
7
Rev: 09.15 - Level-Up® Aftermarket Manual
Fig.17
Fig. 17 Detail
