2.4.2 Optional part installation and confirmation

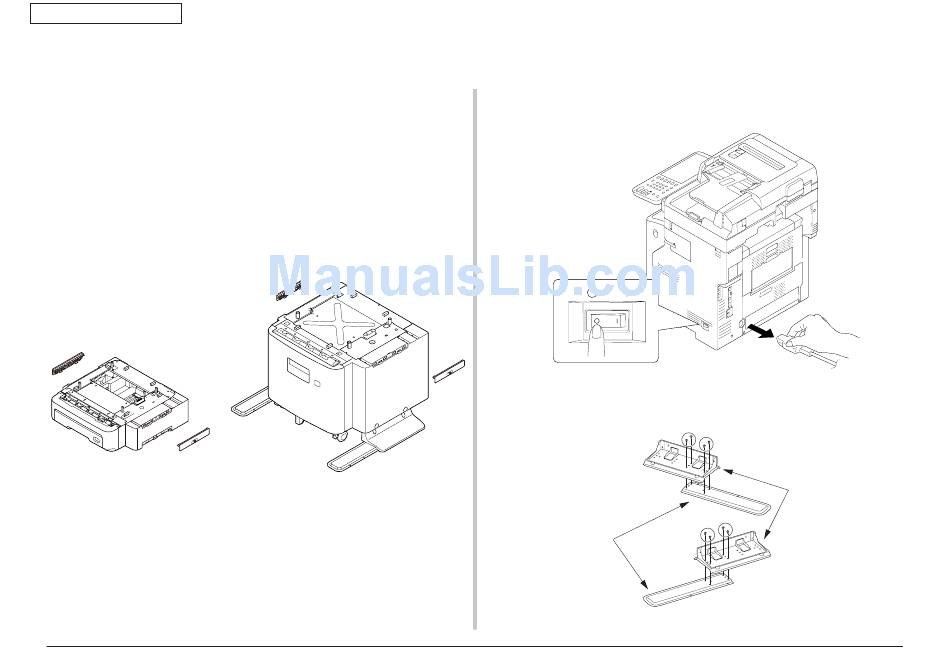

(1) Installation of the optional tray unit (second/ third/ fourth tray/ LCF)
Notes! • Fourth tray:not support for Finisher model
It is a traditional paper tray for adding paper into the MFP .
Second/ third/ fourth tray : 530 pieces of 70 kg paper can be set. Using it with a standard
paper cassette and a multi-purpose tray can print 2220 pieces of pages continuously
LCF : 2000 pieces of 70kg paper can be set. Using it with a standard paper cassette and a
multi-purpose tray can print 2630 pieces of pages continuously.
<second / third /fourth tray>
45387101TH Rev.1
(1) Turn the MFP power to OFF and pull out the power cord from the outlet.
Turn the power off with following the procedure in chapter 3.5.2 [Turn the power off.].
Notes!
(2) Attach the caster unit.
(2)-1 Attach the anti-tip feet (both sides and front) with four screws.
Notes! Attachment directions are different for the left side and the right side
<LCF>
Anti-tip foot (front)
• If you turn off the power without properly shutting down, it may cause damage to
the MFP . Please operate the [Shutdown Menu].
• It may cause damage to the MFP , if you install the optional tray with power ON.
2. Set up
Anti-tip foot Side
