Testing of the demonstration board

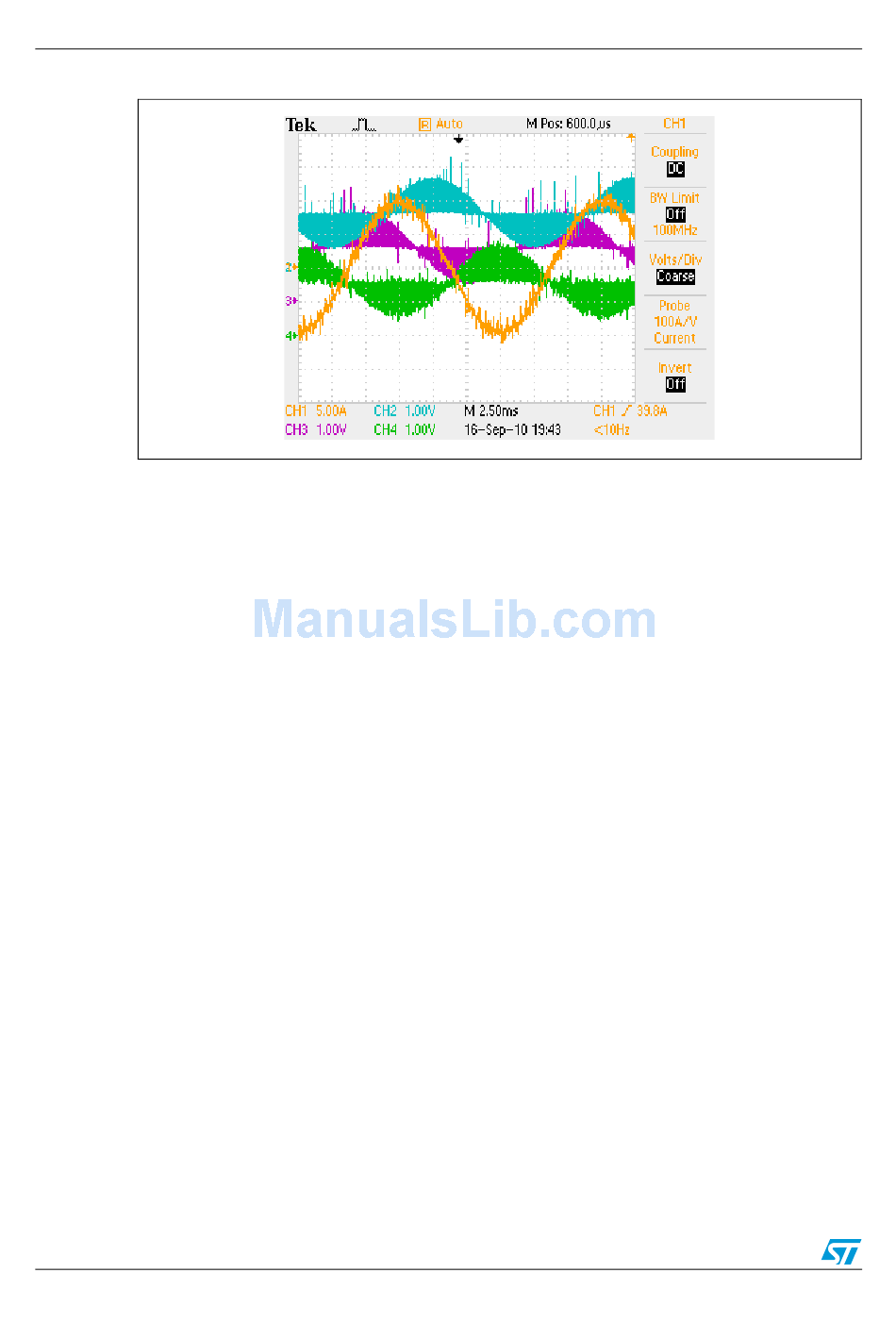

Figure 15. Current signals

1. Ch1 - Output phase current, current probe on phase C

Ch2 - voltage on TP19, phase current A

Ch3 - voltage on TP21, phase current B

Ch4 - voltage on TP22, phase current C.

30/48

Doc ID 18293 Rev 1

UM1036
