PCB layout

9 PCB layout
For this application a standard, double-layer, coppered PCB with a ~60 μm copper thickness
was selected. The PCB material is FR-4.
The dimensions of the board are:
●
Length: 195 mm
●
Width: 175 mm
●
PCB thickness: 1.55 mm

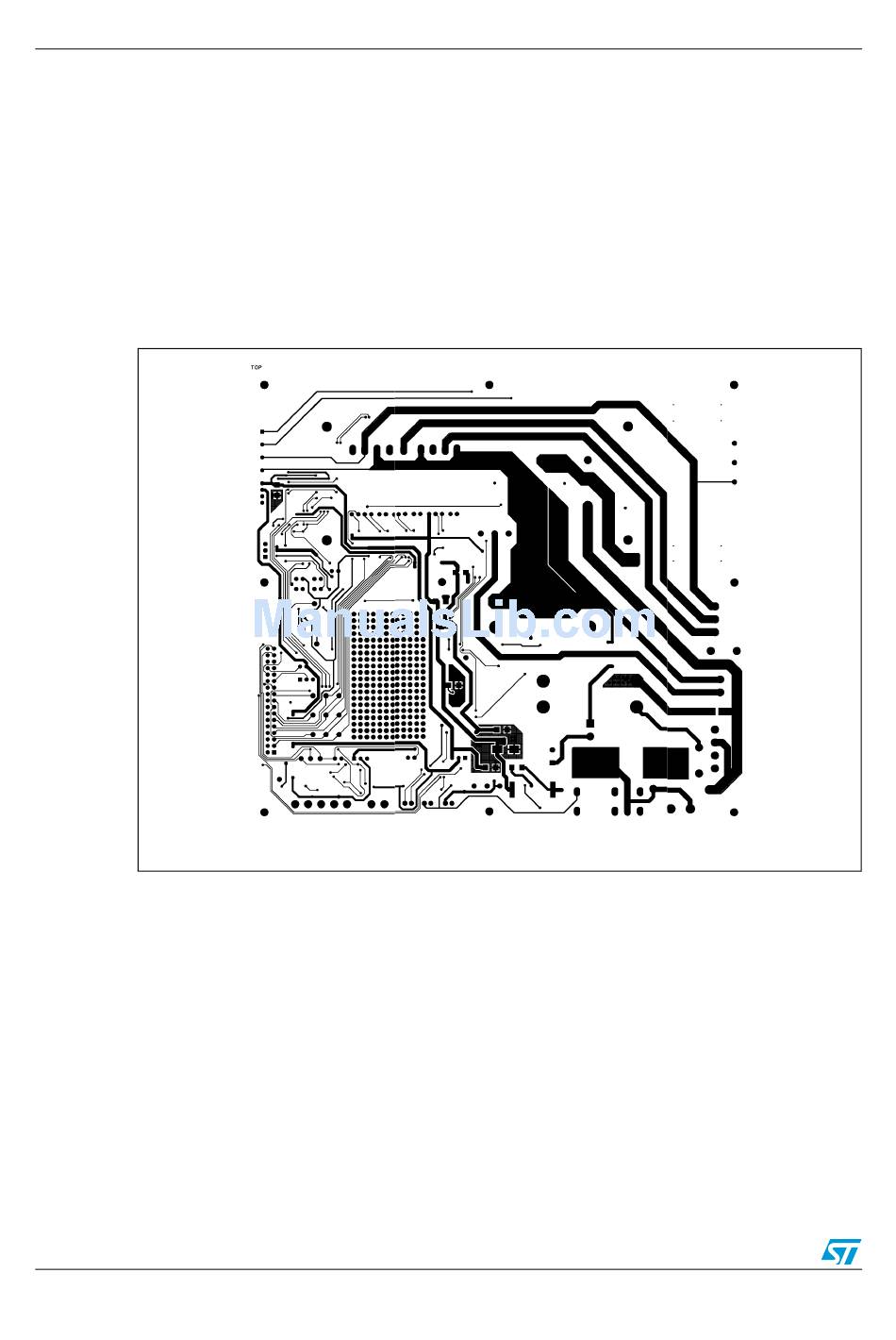

Figure 17. Copper tracks - top side

40/48 Doc ID 18293 Rev 1
UM1036
